Brand: Veeder-Root

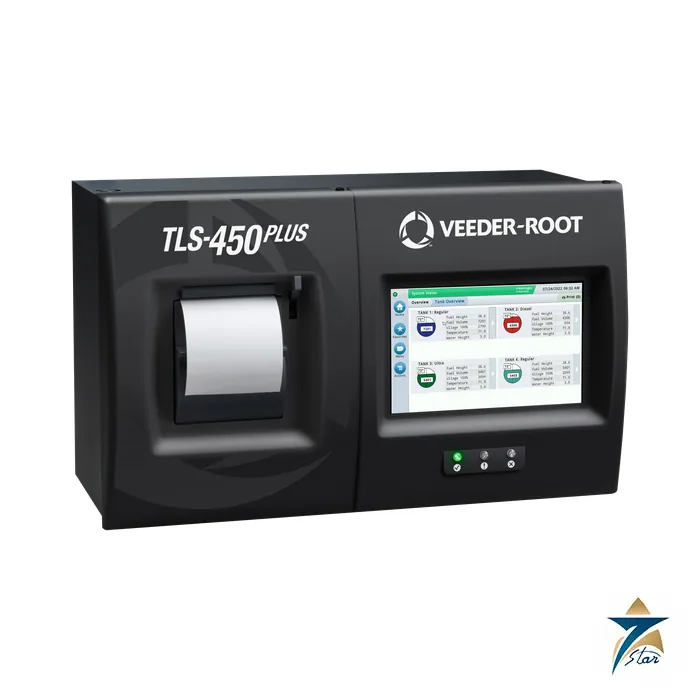

Veeder-Root TLS-450PLUS Automatic Tank Gauge Console
Description
Modular tank gauge console for inventory and compliance on larger sites
The Veeder-Root TLS-450PLUS is an automatic tank gauge (ATG) console for fuelling sites that need inventory control, leak detection and compliance reporting in one system. Veeder-Root describes it as a tool for running fuelling operations at peak efficiency, with simple navigation, streamlined inventory and compliance reports and business analytics. One console can monitor up to 64 tanks, or 32 tanks when Business Inventory Reconciliation (BIR) is used, and regular software releases keep the security and features up to date.
The standard console part number 0860091-302 includes an 8 inch colour touch screen, an integral printer, three Ethernet ports, dual USB and expansion, and dual RS-232/RS-485 ports, in a UL/cUL version. It is modular: plug-in device modules connect probes, sensors and relays, and communication modules add serial, modem or fax links.
Technical specifications
Values come from the Veeder-Root TLS-450PLUS datasheet (P/N 577014-455 Rev. D, 2025).
| Parameter | Specification |
|---|---|
| Manufacturer / model | Veeder-Root TLS-450PLUS Automatic Tank Gauge (8600 series) |
| Standard console | 0860091-302: 8 inch colour touch screen, printer, 3 Ethernet, dual USB/expansion, dual RS-232/RS-485, UL/cUL |
| Standard software | 0333545-001: web-enabled, custom alarm, on-console help, extended storage, TLS-Expansion, static leak detection, 3 GPH DPLLD |
| Tank / probe capacity | 64 in-tank probes including density; 32 with BIR; 16 digital pressurised line leak detectors |
| Device modules | USM 16-input (0332812-001) up to 4 per console, 16 per system; UIOM (0332813-001); 7-Amp relay module (0333564-001, slot 4 only); BIR/AccuChart LVDIM and MDIM |
| Sensor capacity | 64 external inputs (256 with three TLS-XB boxes); 2-wire sensors 64 (99 with TLS-XB); 3-wire sensors 32 (99) |
| Outputs and inputs | Output relays 21 (32 with TLS-XB); low-voltage inputs 16 (32); high-voltage inputs 20 (32) |
| Communications | RS-232 up to 5, RS-485 up to 3, Ethernet 3, USB 2.0 x2, IFSF, optional SiteFax; internal modem option |
| Display / storage | 8 inch colour touch screen; SD card; up to 3 years data storage |
| Power | Universal AC 100 to 249 V, 50/60 Hz, 2 A maximum |
| Operating / storage temperature | 0 to +40 °C operating; -40 to +70 °C storage; indoors, climate-controlled; 0 to 90% RH non-condensing |
| Dimensions / construction | 18.4 x 11 x 8.8 in (46.74 x 27.94 x 22.35 cm); 16 GA powder-coated steel |
| Probe and sensor wiring | Shielded cable below 100 pF/ft; maximum 1,000 ft (304.8 m) for intrinsic safety |
| Approvals listed | UL cUL, ATEX, IECEx, NEPSI, FCC, FMC, PESO, ANZEx, ULC, INMETRO, IQC, EAC, NWGLDE, CEN |
| Security features | Partitioned Ethernet ports; port control (SSH 22, HTTPS 443, serial command 10001), reassignable ports; user log-in roles |
Optional software and expansion
Optional software is ordered as separate feature part numbers: In-Station Diagnostics and Vapor Pressure Management Control (0332972-102, 0332972-101), Continuous Statistical Leak Detection (0332972-006), digital line leak detection at three levels (0332972-007, -008, -009), Timed Sudden Loss Detection (0332972-018), Vapor Collection Monitor (0332972-021), a DEF recirculation feature with temperature sensor kit (0332972-026, -027, 0794380-210) and Secondary Containment Vacuum Monitoring (0332972-029). Business Inventory Reconciliation, AccuChart calibration and the tank-calibration functions listed in the system compatibility guide are optional.
The TLS-XB expansion box lets one system go beyond the single-console inputs. It supports 2-wire and 3-wire sensors, including discriminating sump and dispenser-pan sensors, interstitial sensors for steel and fibreglass tanks, vacuum sensors, hydrostatic sensors, groundwater and vapour sensors and the air flow meter.
What to confirm before ordering
- Number of tanks and probes, and whether BIR is needed (it halves the tank count to 32).
- Sensor and probe types, which set the number of USM and other modules.
- Communication needs: Ethernet, RS-232/485, modem, fax or IFSF.
- Approval set: UL/cUL versus ATEX, IECEx or others, and indoor, climate-controlled installation.
How the Veeder-Root TLS-450PLUS works
Probes in each tank send level and temperature readings to the console. The console turns them into inventory figures. It also runs leak tests, raises alarms and prints reports for the site.
Where the TLS-450PLUS is used
- Fuelling stations
- Large fuel sites
- Tank inventory control
- Leak detection
- Compliance reporting
Selection checklist for the TLS-450PLUS
- Number of tanks
- Number of probes
- Sensors and line leak detectors
- Relay and input counts
- Communication ports
- Inventory reconciliation need
- Supply voltage
- Console part number
Installation, commissioning and maintenance notes for the TLS-450PLUS
Fit the device modules in the console slots. Connect the probes, the sensors and the relays. Connect the network and the serial links. Load the software and check each tank input. Review the alarm history at regular intervals.
Requesting a quotation for the Veeder-Root TLS-450PLUS
Please send the tank count, the probe count and the sensors needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
TLS-450PLUS console type
It is an automatic tank gauge console.
TLS-450PLUS series
It belongs to the Veeder-Root 8600 series.
TLS-450PLUS tank capacity
One console can monitor up to 64 tanks.
TLS-450PLUS reconciliation
With BIR in use the console monitors 32 tanks.
TLS-450PLUS standard console
The standard console part number is 0860091-302.
TLS-450PLUS screen
It has an 8 inch colour touch screen.
TLS-450PLUS printer
It has an integral printer.
TLS-450PLUS Ethernet
It has 3 Ethernet ports.
TLS-450PLUS serial ports
It has dual RS-232 and RS-485 ports.
TLS-450PLUS USB
It has dual USB ports.
TLS-450PLUS probes
It supports 64 in-tank probes.
TLS-450PLUS line leak detectors
It supports 16 digital pressurised line leak detectors.
TLS-450PLUS modules
Plug-in device modules connect probes, sensors and relays.
TLS-450PLUS USM module
The USM module has 16 inputs.
TLS-450PLUS output relays
It has 21 output relays.
TLS-450PLUS sensor inputs
It has 64 external inputs.
TLS-450PLUS data storage
It stores data for up to 3 years.
TLS-450PLUS memory card
It has an SD card.
TLS-450PLUS power supply
The supply is 100 to 249 V AC, 50/60 Hz.
TLS-450PLUS software
The standard software is web-enabled with custom alarms.
TLS-450PLUS leak test
The standard software includes static leak detection.
Console records for the TLS-450PLUS
Record the tank list, the probe list and the alarm settings.
Choosing the right TLS-450PLUS module set
Choose the modules from the probes, the sensors and the relays you need.
Documents and quotation
The Veeder-Root TLS-450PLUS datasheet is attached to this page as a PDF with the module, software and compatibility tables. Send us the site layout, the tank, probe and sensor list and the console part number you need and we will prepare a quotation. Seven Star LLC is an independent supplier in Muscat; price and lead time are confirmed per RFQ. Related range: level instrumentation.
Datasheets & Documents
- Datasheet Veeder-Root TLS-450PLUS Automatic Tank Gauge datasheet (P/N 577014-455 Rev. D) Download
Reviews (0)
About brand
Veeder-Root is a fuel management specialist based in Simsbury, Connecticut, USA, founded in 1866 and part of Vontier. It is best known for TLS automatic tank gauges, magnetostrictive in-tank probes and leak detection sensors for fuel storage.
Seven Star LLC is an independent supplier in Muscat. We list Veeder-Root consoles, probes and sensors from the maker's published datasheets for fuel stations, depots and airports in Oman and the GCC.
Veeder-Root product series
Tank gauge consoles include the TLS4 and the non-expandable TLS4B, the TLS-450PLUS and the legacy TLS-350PLUS. Mag Plus in-tank probes are offered for gasoline and diesel, jet fuel, LPG and light and heavy oil, and Mag-FLEX probes cover tall tanks. Leak detection sensors include the discriminating containment sump sensor 0794380-352 and the interstitial sensor 0794390-420 for double-wall steel tanks. The EMR4 electronic meter register is used on fuel delivery trucks.
Where Veeder-Root products are used
Petrol stations, fuel depots, airports and fleet fuelling sites, where the system measures product level, water and temperature in underground and aboveground tanks, monitors sumps and interstitial spaces and supports inventory reconciliation and leak tests.
Ordering Veeder-Root products: what we need
Send the console model and the modules installed, the number of tanks, the product in each tank, the tank type and diameter for probe length, and the sensors required. Where a model is discontinued, we say so on the product page and confirm the successor before quoting.
Browse Veeder-Root products by category: Level Instrumentation.
Related products
Frequently Asked Questions
How many tanks can a TLS-450PLUS monitor?
Up to 64 tanks, or 32 tanks when Business Inventory Reconciliation is used.
What display does it have?
An 8 inch colour touch screen with an integral printer on the standard 0860091-302 console.
Does it include leak detection?
The standard software includes static leak detection and 3 GPH DPLLD; further leak detection features are optional software.
How is it connected to other systems?
Ethernet, web browser, serial RS-232/RS-485, modem, fax and IFSF options are listed.
Where should it be installed?
Indoors in a climate-controlled space, operating between 0 and +40 °C.
