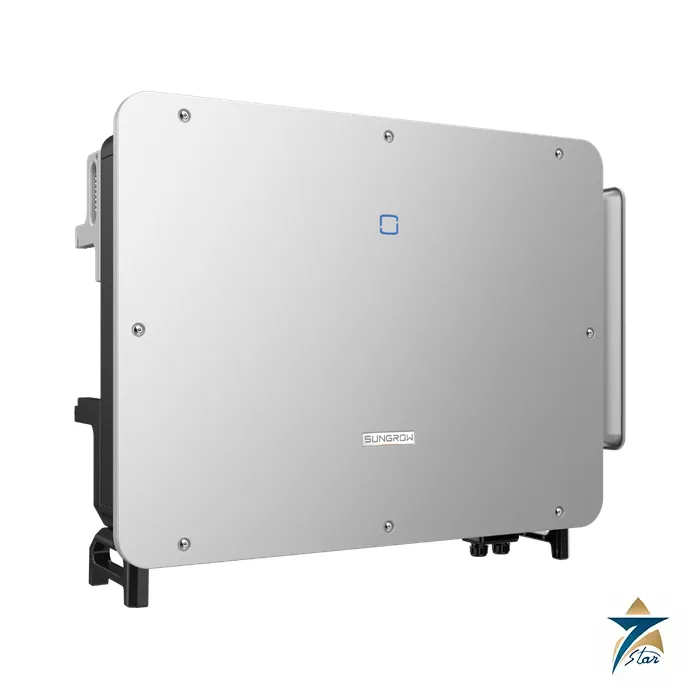

Sungrow SG125CX-P2 125 kW String Inverter

Name: Sungrow SG125CX-P2 125 kW String Inverter | Seven Star LLC
Brand: Sungrow
SKU: SG125CX-P2

A 125 kW, 12-MPPT string inverter for commercial and utility rooftops and ground arrays

The Sungrow SG125CX-P2 is a multi-MPPT string inverter for 1000 Vdc systems with a rated output of 125 kW (125 kVA). Twelve independent MPPT inputs, each accepting two strings and up to 15 A per string, let one inverter handle roofs with several orientations, shading patterns or 500 W-plus modules without losing yield.

Sungrow quotes a maximum efficiency of 98.5 percent, IP66 protection and a C5 anti-corrosion rating, with a dynamic shading optimization mode and smart IV curve diagnosis for remote O&M. Compatible aluminium AC cables up to 240 mm2 and a drawer-style cable sealing plate are aimed at lower installation cost.

SG125CX-P2 features

12 MPPTs, 2 strings per MPPT, 15 A string current input, compatible with 500 W-plus PV modules
Maximum efficiency 98.5 percent, European efficiency 98.3 percent
Dynamic shading optimization mode and smart IV curve diagnosis
DC Type I+II and AC Type II surge protection; AFCI 2.0 function; PID recovery
Key component diagnosis, grid fault record function for remote O&M
AC cable pre-assembly; compatible with up to 240 mm2 aluminium AC cables
Optional optimizer and rapid-shutdown (RSD) compatibility – consult Sungrow before ordering

SG125CX-P2 technical specifications

Input (DC)

Parameter	Specification
Recommended max. PV input power	175 kW
Max. PV input voltage	1100 V
Min. / startup input voltage	180 V / 200 V
Rated PV input voltage	600 V
MPPT voltage range	180 V – 1000 V
Independent MPP inputs / strings per MPPT	12 / 2
Max. PV input current	360 A (30 A x 12)
Max. DC short-circuit current	480 A (40 A x 12)
Max. current for DC connector	30 A

Output (AC)

Parameter	Specification
Rated AC output power	125 kW
Max. AC apparent power / current	125 kVA / 181.1 A
Rated AC voltage	3 / N / PE, 220/380 V or 230/400 V
AC voltage range	320 V – 480 V
Rated grid frequency	50 Hz / 60 Hz (45-55 Hz / 55-65 Hz)
THD	Below 3 percent at rated power
Power factor	Above 0.99 at rated power; 0.8 leading – 0.8 lagging adjustable
Max. / European efficiency	98.5 percent / 98.3 percent

Protection and general data

Parameter	Specification
Protection	Grid monitoring, DC reverse polarity, AC short-circuit, leakage current, ground fault, DC switch, string current monitoring, AFCI, PID recovery; DC Type I+II and AC Type II SPD
Dimensions (W x H x D)	1020 x 795 x 360 mm
Weight	93 kg maximum
Topology / mounting	Transformerless / wall-mounting bracket
Degree of protection / corrosion	IP66 / C5
Operating temperature / humidity	-30 C to 60 C / 0-100 percent non-condensing
Cooling / altitude	Smart forced air cooling / 4000 m maximum
Night power consumption	Below 5 W
Display / communication	LED, Bluetooth + app / RS485, optional WLAN, optional Ethernet
DC / AC connection	EVO2 (max. 6 mm2) / OT-DT terminal (max. 240 mm2, cable OD 30-60 mm)
Grid compliance (as printed)	IEC 62109-1, IEC 61727, IEC 62116, EN 50549-1/2, VDE-AR-N 4105:2018, NC RfG, G99, CEI 0-21, NRS-097-2-1, IEC 63027 and others
Grid support	Q at night, LVRT, HVRT, active and reactive power control, power ramp rate control

Sizing and ordering the SG125CX-P2

String design starts with the 180 to 1000 V MPPT window and the 1100 V absolute maximum; the recommended maximum array is 175 kW (175 kW against 125 kW, a derived 1.4 DC/AC ratio). With 30 A per MPPT, two strings per MPPT and 12 MPPTs, up to 24 strings connect directly. Select the AC voltage (220/380 V or 230/400 V) and decide whether WLAN or Ethernet communication, optimizers or RSD are required, because the datasheet marks these as optional and asks you to consult Sungrow before ordering optimizer or RSD combinations.

Installation and operation notes

The inverter is wall-mounted on a bracket and weighs up to 93 kg, so plan lifting and the structure. AC cabling is made with OT or DT terminals; the drawer-style sealing plate and pre-assembled AC cable are intended to speed wiring. Commissioning and monitoring are by Bluetooth and the app, and RS485 communication is standard. Cooling is smart forced air, so keep the clearances stated in the user manual; the manual also defines the full-load MPPT voltage range.

Where the SG125CX-P2 is used

It suits commercial and industrial rooftops, carports, factory roofs and small ground-mount plants. The rated ambient to 60 C, 0-100 percent humidity and C5 corrosion rating match the heat and coastal air of the Gulf, but derating, shading and soiling losses should still be modelled by the designer. Local utility approval (for example grid connection requirements in Oman or the UAE) is separate from the datasheet and must be confirmed.

Installation and selection notes

Design the string layout from the module data so that voltage and current stay within the inverter limits over the temperature range at the site. Provide the AC cable, the protection and the communication according to the manual, and plan mounting with enough ventilation space around the inverter. Check the local grid connection rules before ordering.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the site conditions and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification before a purchase is confirmed. Ratings, flows, dimensions and certifications are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Related Sungrow items

Sungrow lists the SG150CX in the same CX series, the SG350HX for 1500 Vdc plants, and the MVS3200-LV turnkey station for central blocks. We can quote communication accessories on request.

Frequently asked questions

What is the DC input voltage range?

MPPT range 180 V to 1000 V, with 1100 V maximum PV input voltage.

How many MPPTs and strings?

12 independent MPPT inputs with two strings each.

What protection rating does it have?

IP66, with a C5 anti-corrosion rating, per the datasheet.

Which AC cable sizes can be connected?

OT or DT terminals up to 240 mm2, cable outside diameter 30 mm to 60 mm.

Is Seven Star LLC a distributor of Sungrow?

No. We are an independent supplier based in Muscat, and we source genuine Sungrow products for customers in Oman and the GCC when requested.

Documents and quotation

To request a quote, send the full model or order code, any options and the quantity. The reference document, the SG125CX-P2 datasheet (Version 6), is attached to this page; please check the style code against it and the manual. Seven Star LLC is an independent supplier based in Muscat and ships Sungrow products around the GCC on enquiry. Prices are quoted individually, and specifications should be confirmed with current manufacturer data. Browse Solar Power or the Sungrow brand page.
