Brand: SMA

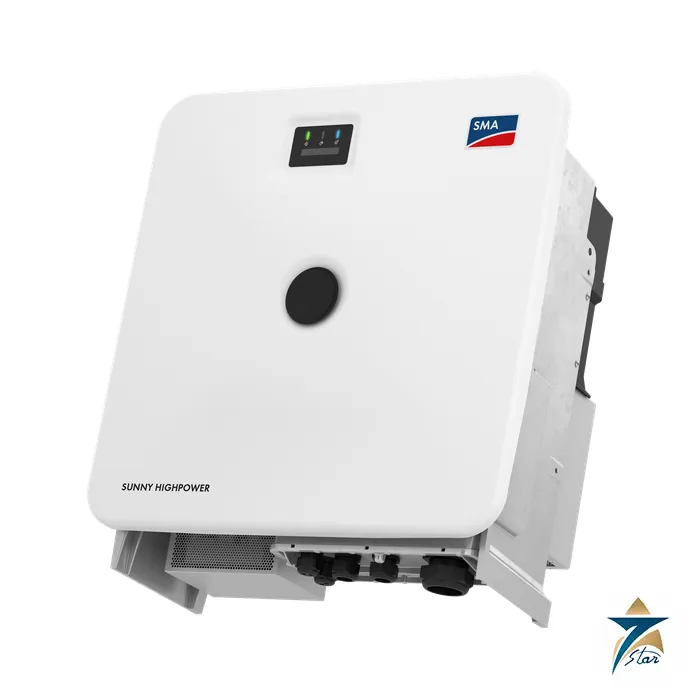

SMA Sunny Highpower PEAK3 SHP 150-21 150 kW Solar Inverter
Description
The SMA Sunny Highpower PEAK3 SHP 150-21 is a transformerless three-phase central-string inverter rated 150 kW at a 600 V AC grid connection, built for utility-scale and large industrial PV plants that use 1500 V DC strings. It belongs to the four-model SHP-21 family and is the 600 V variant, which suits plants that connect through a medium-voltage transformer station at this nominal voltage.
High power density for decentralised 1500 V plants
SMA describes the Sunny Highpower PEAK3 as the core of its solution for decentralised PV power plants with 1500 V DC system voltage. A single MPP tracker accepts up to 180 A of usable input current, with one or two optional inputs for external PV array junction boxes. A DC/AC ratio of up to 200 % is possible, and the datasheet states there is no derating up to 50 °C. At about 99 kg the unit is rack mounted and sealed to IP65, with active speed-controlled OptiCool cooling.
The inverter is off-grid capable and compatible with the SMA Fuel Save Controller, which matters for hybrid sites that combine solar with diesel generation. OptiTrac tracking, Integrated Plant Control and Q on Demand 24/7 reactive-power capability are standard, and the SMA Data Manager provides central commissioning and control of the plant.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Sunny Highpower PEAK3 SHP 150-21 |
| Max. PV array power | 300 kWp |
| Max. DC input voltage | 1500 V |
| MPP voltage range / rated input voltage | 880 V to 1450 V / 880 V |
| Min. DC voltage / start voltage | 855 V / 940 V |
| Max. usable input current / max. short-circuit current | 180 A / 325 A |
| MPP trackers / inputs | 1 / 1 or 2 (optional) for external PV array junction boxes |
| Rated AC power / max. apparent power | 150 kW / 150 kVA |
| Nominal AC voltage / range | 600 V / 480 V to 690 V |
| AC grid frequency | 50 Hz (44 to 55 Hz) or 60 Hz (54 to 66 Hz) |
| Max. output current | 151 A |
| Power factor | 1 at rated power; displacement 0 overexcited to 0 underexcited |
| THD | Below 0.5 % |
| Max. / European efficiency | 99.1 % / 98.8 % |
| Dimensions (W / H / D) | 770 mm / 830 mm / 462 mm |
| Weight | 99 kg (218 lb) |
| Operating temperature range | -25 °C to +60 °C |
| Protection | IP65; transformerless; ground fault, grid and DC reverse polarity monitoring; type II surge arresters AC and DC |
| Connections | DC terminal lug up to 300 mm²; AC screw terminal up to 150 mm² |
| Interfaces | 2 x Ethernet; SMA Modbus, SunSpec Modbus, Speedwire |
| Noise / night consumption | 69 dB(A) typical / below 5 W |
SHP-21 family comparison
The datasheet covers four models that differ mainly in AC voltage, so choose by the grid or transformer voltage of the plant.
| Model | Rated AC power | Max. PV array power | Nominal AC voltage (range) | MPP voltage range | Max. DC input voltage | Max. / European efficiency |
|---|---|---|---|---|---|---|
| SHP 100-21 | 100 kW | 200 kWp | 400 V (177-477 V) | 590-1000 V | 1100 V | 98.8 / 98.5 % |
| SHP 150-21 | 150 kW | 300 kWp | 600 V (480-690 V) | 880-1450 V | 1500 V | 99.1 / 98.8 % |
| SHP 172-21 | 172 kW | 344 kWp | 660 V (528-759 V) | 968-1450 V | 1500 V | 99.2 / 98.9 % |
| SHP 180-21 | 180 kW | 360 kWp | 690 V (552-793 V) | 1012-1450 V | 1500 V | 99.2 / 98.9 % |
Selecting and ordering
Match the AC nominal voltage of the model to the transformer station first, then size the DC side: with a 1500 V array the 880 V to 1450 V MPP window and the 180 A input limit set the string count per inverter. Confirm the grid code that the project requires, because the datasheet lists the approvals as pending and the certificate set can differ by region and date. The manufacturer states a standard warranty of 5 years with extensions optional. For a smaller commercial string inverter see the SMA Sunny Tripower X 25, or browse all solar power products.
How the SMA SHP 150-21 works
The inverter takes DC power from the solar strings and tracks the point of maximum power. It converts the DC power into three-phase AC at the grid voltage. It follows the grid frequency and voltage and can supply reactive power on demand. Monitoring circuits watch the grid and the DC side.
Where the SHP 150-21 is used
- Utility-scale PV plants
- Large industrial PV plants
- Plants with 1500 V DC strings
- Hybrid sites with diesel generation
- Plants with a medium-voltage transformer station
Selection checklist for the SHP 150-21
- Array power in kWp
- DC voltage window
- AC grid voltage, 600 V
- Grid frequency
- DC to AC ratio
- Number of junction box inputs
- Site temperature
- Plant control needs
Installation, commissioning and maintenance notes for the SHP 150-21
Rack mount the inverter with enough room for cooling air. Connect the DC input, the AC output and the earth. Commission the unit with the SMA Data Manager. Check the fans and the filters at set intervals.
Requesting a quotation for the SMA SHP 150-21
Please send the array size, the DC voltage, the grid voltage and the site temperature. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
SHP 150-21 inverter type
The SHP 150-21 is a transformerless three-phase inverter.
SHP 150-21 AC power
The rated AC power is 150 kW.
SHP 150-21 AC voltage
The nominal AC voltage is 600 V.
SHP 150-21 DC voltage
The maximum DC input voltage is 1500 V.
SHP 150-21 MPP range
The MPP voltage range is 880 V to 1450 V.
SHP 150-21 input current
The maximum usable input current is 180 A.
SHP 150-21 DC to AC ratio
A DC to AC ratio of up to 200 percent is possible.
SHP 150-21 efficiency
The maximum efficiency is 99.1 percent.
SHP 150-21 protection
The enclosure protection is IP65.
SHP 150-21 weight
The weight is 99 kg.
SHP 150-21 cooling
Active speed-controlled OptiCool cooling is used.
SHP 150-21 temperature range
The operating range is minus 25 to plus 60 degrees C.
SHP 150-21 off-grid capability
The inverter is off-grid capable and works with the SMA Fuel Save Controller.
Inverter records for the SHP 150-21
Record the energy yield, the fault log and the cleaning dates.
Choosing the right SHP 150-21 layout
Choose the string layout so the DC voltage stays inside the MPP window.
Documents and quotation
The datasheet attached here is SMA’s English data sheet for the SHP 100-21, 150-21, 172-21 and 180-21 (status 03/2023). Send us the plant voltage, array layout and grid-code requirement and we will quote the exact model and any DC junction-box solution.
Datasheets & Documents
- Datasheet SMA Sunny Highpower PEAK3 SHP 100-21 / 150-21 / 172-21 / 180-21 datasheet Download
Reviews (0)
About brand
Three-phase string inverters for commercial rooftops and carports are the part of the SMA program that contractors in the Gulf ask for most. SMA has built solar inverters and energy systems in Niestetal, Germany since 1981.
Seven Star LLC, an independent supplier in Muscat, lists the Sunny Tripower CORE1 STP 50-41 and sources SMA solar inverters and their accessories for PV projects in Oman on request.
SMA Sunny Tripower CORE1 STP 50-41 in brief
The STP 50-41 is a 50 kW transformerless three-phase inverter. SMA's datasheet gives it six independent MPP trackers with two string inputs each, a maximum DC input voltage of 1000 V, an IP65 enclosure and an operating temperature range of -25 to +60 °C. The CORE1 is a free-standing unit, so it is set on the roof or ground without a wall or rack behind it.
Ordering SMA inverters: what we need
Send the full type designation as printed on the nameplate (STP 50-41, not only "CORE1"), the grid voltage and frequency, the utility or grid-code requirement that applies in your GCC country, and any surge protection or communication options. For a replacement unit add the serial number or a nameplate photo. We check the code against SMA documentation and provide the manufacturer's datasheet and certificates on request.
Related products
Frequently Asked Questions
What is the rated AC power and voltage of the SHP 150-21?
150 kW at a nominal 600 V AC (range 480 V to 690 V), 50 or 60 Hz, with a maximum output current of 151 A.
What DC input voltage does it accept?
Up to 1500 V maximum, with an MPP voltage range of 880 V to 1450 V and a start voltage of 940 V, from one MPP tracker with 180 A usable input current.
Can it run with diesel generators?
The datasheet marks the inverter as off-grid capable and compatible with the SMA Fuel Save Controller.
What is the ingress protection and weight?
IP65 enclosure, 99 kg, rack mounted, with OptiCool active speed-controlled fan cooling.
What DC/AC ratio is possible?
SMA states a DC/AC ratio of up to 200 % with no derating up to 50 degrees C.
