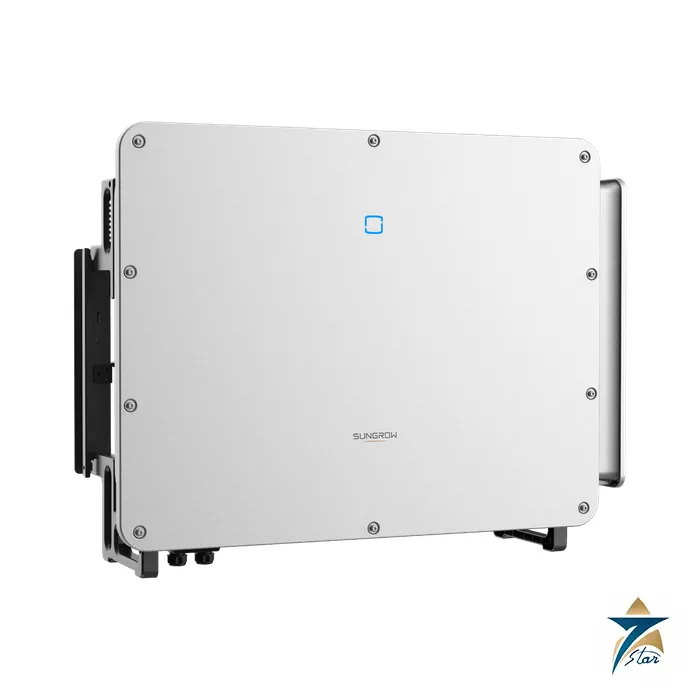

Sungrow SG150CX 150 kW Multi-MPPT String Inverter

A 150 kW string inverter for 380 to 480 V grids with high-current MPPTs

The Sungrow SG150CX is a multi-MPPT string inverter for 1000 Vdc systems with 150 kW rated power and 165 kVA maximum apparent power. Seven MPPTs carry three strings each at up to 48 A, so high-current modules fit without string combiners, and the AC side accepts 380, 400, 415 or 480 V three-phase grids.

Sungrow highlights a 98.8 percent maximum efficiency, global MPPT scanning said to raise yield by over 2 percent, AFCI 3.0 with a detection range of 450 m, active fault identification with intelligent string-level protection, air duct self-cleaning, and IP66 with C5 anti-corrosion for harsh environments.

SG150CX features

• 7 MPPTs with 3 strings each; 48 A current per MPPT for high-power modules
• Maximum efficiency 98.8 percent; European efficiency 98.2 percent (380/400/415 V) or 98.4 percent (480 V)
• AFCI 3.0, intelligent DC arc interrupter with a 450 m detection range
• Global MPPT scanning; intelligent PID recovery function
• High-precision string detection and IV diagnosis to locate abnormal strings
• Air duct self-cleaning to reduce maintenance
• AC cable range 120 to 400 mm2; DEWA listed among grid compliance codes

SG150CX technical specifications

Input (DC)

Output (AC)

Protection and general data

SG150CX or SG125CX-P2?

Pick the SG150CX when module current or array size pushes beyond the SG125CX-P2: it has 7 MPPTs at 48 A versus 12 MPPTs at 30 A, so it suits large-format modules but offers fewer independent trackers. Confirm the grid voltage (380 to 480 V options change the rated current and voltage range) and the recommended maximum array of 210 kWp. RSD compatibility is optional and, for the SR20D-M device, the datasheet asks you to consult Sungrow before ordering.

Installation and operation notes

The inverter weighs up to 100 kg and is wall-mounted on a bracket; use suitable lifting and a robust frame. AC connection uses OT or DT lugs for 120 to 400 mm2 cables. The air duct self-cleaning function reduces cleaning visits, but follow the user manual for maintenance guidance. Bluetooth and the app commission the unit; RS485 is standard with WLAN and Ethernet as options.

Where the SG150CX is used

Typical sites are large commercial roofs, industrial parks and ground-mount plants in the sub-MW to MW range. Because DEWA appears in the printed grid compliance list, it is relevant to projects in Dubai, but approval for a specific project still has to be confirmed with the utility. The 60 C operating limit and C5 rating are printed values for hot, humid, salt-laden sites.

Installation and selection notes

Design the string layout from the module data so that the voltage and current stay inside the inverter window over the temperature range at the site, and plan mounting with enough clear space for cooling. Check the AC cable size, the protection devices, the communication method and the local grid connection requirements before ordering, and keep the commissioning record for the warranty file.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any hoses, couplings or accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification before a purchase is confirmed. Ratings, flows, pressures and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Related Sungrow items

Within the series, Sungrow lists the SG125CX-P2 (1000 Vdc, 12 MPPT) and the SG33CX-P2 and SG50CX-P2 mid-size units, and for 1500 Vdc plants the SG350HX. We can quote them together.

Frequently asked questions

What AC grids does the SG150CX support?

Three-phase 220/380, 230/400, 240/415 and 277/480 V, 50 or 60 Hz.

How many strings can connect?

Seven MPPTs with three strings each, up to 48 A per MPPT.

Does it have arc-fault protection?

Yes. AFCI 3.0 with an intelligent DC arc interrupter and 450 m detection range.

What is its ingress and corrosion rating?

IP66 and C5.

Is Seven Star LLC a distributor of Sungrow?

No. Seven Star LLC supplies Sungrow products as an independent company in Muscat, Oman, and does not act as a manufacturer-appointed distributor.

Documents and quotation

Download the SG150CX datasheet (Version 7, 2025) from this page and read it alongside the manual when you verify the model code. Our quotation form takes the exact model, options and quantity, and Seven Star LLC, an independent Muscat supplier serving the GCC, replies with availability for Sungrow equipment. No prices are listed; confirm all ratings, options and approvals against current manufacturer documents before ordering. Related pages: Solar Power, Sungrow.
