Brand: Victron Energy

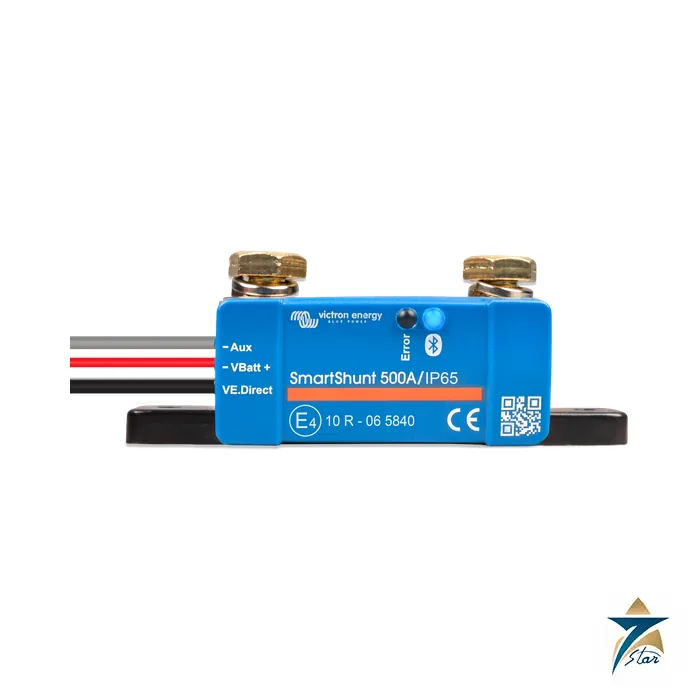

Victron SmartShunt IP65 Bluetooth Battery Monitor
Description
A Bluetooth battery monitor with the shunt built in
The Victron SmartShunt IP65 is an all-in-one battery monitor without a display: the VictronConnect app on a phone or tablet is the display. It is water resistant, comes in 300 A, 500 A, 1000 A and 2000 A versions, and reports state of charge, time to go, voltage, current and history. Victron positions it as an alternative to a BMV battery monitor where less wiring and clutter are wanted. It can also be read by a GX device through the VE.Direct port.
Technical specifications
| Parameter | Specification |
|---|---|
| Versions | 300 A, 500 A, 1000 A, 2000 A |
| Supply voltage range | 6.5 to 70 V DC |
| Current draw | Below 1 mA |
| Auxiliary input range | 6.5 to 70 V DC |
| Battery capacity setting | 1 to 9999 Ah |
| Auxiliary input use | Second battery voltage, midpoint monitoring or temperature sensor |
| Operating temperature | -40 to +50 C |
| Temperature measurement range | -20 to +50 C (with optional sensor) |
| Resolution: current / voltage / Ah | +/-0.01 A / +/-0.01 V / +/-0.1 Ah |
| State of charge / time to go | +/-0.1 percent / +/-1 min |
| Accuracy: current / voltage | +/-0.4 percent / +/-0.3 percent |
| Current offset | Less than 10 / 10 / 20 / 40 mA by version |
| Dimensions (h x w x d) | 300 A: 44 x 120 x 38 mm; 500 A: 46 x 120 x 54 mm; 1000 A: 68 x 168 x 75 mm; 2000 A: 68 x 168 x 100 mm |
| Shunt connection bolts | 300 A: M8; 500, 1000, 2000 A: M10 |
| Protection category | IP65 |
| Communication | Bluetooth, VE.Direct port |
| Standards | EN 60335-1, EN-IEC 61000-6-1/-2/-3, EN 50498 (automotive) |
| Supplied cables | Two 1.5 m cables with 1 A fuse; 1.5 m cable for temperature sensor connection |
Differences from the BMV-712
Victron lists no visual or audible alarm (alarms appear in the app or on a GX device), no programmable relay, a waterproof housing and a shunt attached to the monitor unit. A VE.Direct cable, not included, is required to connect a GX device. The unit therefore suits sealed enclosures, marine and vehicle batteries and remote sites. Compare with the Victron Quattro systems it commonly monitors, and other units in solar power.
Selection notes
Choose the version by the maximum continuous battery current, not the average; the shunt must carry the peak load plus margin. Confirm the system voltage is within 6.5 to 70 V, and plan for a VE.Direct cable and a GX device if remote logging is needed.
Documents and quotation
The attached Victron datasheet (2 pages) covers all four versions. State the battery bank current and system voltage for a quotation.
Datasheets & Documents
- Datasheet Victron SmartShunt IP65 300 A / 500 A / 1000 A / 2000 A datasheet Download
Reviews (0)
About brand
A battery-based backup or off-grid system needs one device that inverts, charges the battery and switches between AC sources. In the Victron Energy program that device is the MultiPlus-II inverter charger. Victron Energy, founded in 1975 and based in Almere, Netherlands, makes inverters, chargers and battery systems.
Seven Star LLC is an independent supplier in Muscat. We list the MultiPlus-II 48/5000/70-50 and source Victron inverter chargers for buyers in Oman.
Reading the Victron MultiPlus-II 48/5000/70-50 model name
The name carries the main ratings: a 48 V battery system, 5000 VA inverter output, a 70 A battery charger and a 50 A AC transfer switch. Victron's documentation gives a 230 VAC output and continuous power of 4000 W at 25 °C, falling to 3700 W at 40 °C. The unit supports Victron's PowerControl and PowerAssist functions for use with a limited grid or generator supply.
Ordering Victron Energy equipment: what we need
Send the complete model name, state if you need the standard or the GX version, and give the battery voltage and battery type. Tell us if the unit will run alone, in parallel or in a three-phase group, and the ambient temperature at the site, which matters in the GCC. We check the model against Victron documentation and provide the manufacturer's datasheet on request.
Related products
Frequently Asked Questions
What current ratings does the SmartShunt IP65 offer?
300 A, 500 A, 1000 A and 2000 A.
What supply voltage range is allowed?
6.5 to 70 V DC.
How is it read out?
By Bluetooth with the VictronConnect app, or via a GX device using a VE.Direct cable.
What is the current measurement accuracy?
+/-0.4 percent, with +/-0.01 A resolution.
What is the ingress protection?
IP65.
