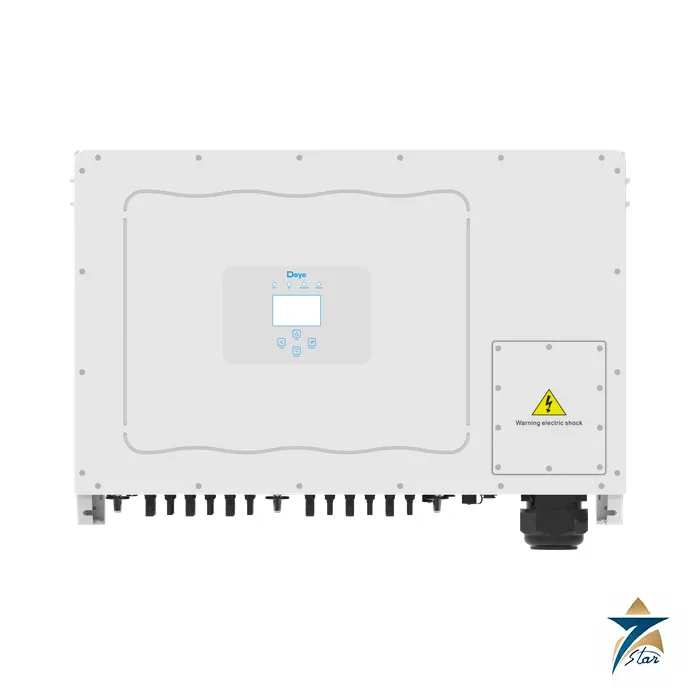

Deye SUN-110K-G03 110 kW Three-Phase 6-MPPT String Inverter

The Deye SUN-110K-G03 is the largest grid-tied string inverter in Deye’s G03 series. It converts 110 kW of three-phase AC from up to 150 kW of PV through six independent MPP trackers, each with four string inputs. It is aimed at large rooftops, ground-mounted plants and industrial sites where fewer, bigger inverters reduce the number of connection points.

Large string inverter with six trackers

Six trackers with four strings each give 24 string inputs in one cabinet, so a roof with several orientations or shading patterns can be split into independent groups. The datasheet allows up to 150 kW of DC against 110 kW of AC, which suits arrays sized for lower-irradiance hours. With a top efficiency of 98.8% and an altitude rating of 4000 m the unit targets large commercial and utility-scale sites, while the 81 kg frame needs two people or a lifting aid.

Datasheet features

• Up to six trackers, efficiency to 98.8%.
• Export limiting and a VSG mode.
• Optional string monitoring and PID recovery.
• Type II arresters on both DC and AC.
• Optional arc-fault interrupter.

Technical specification

Six ratings share one datasheet; the three highest are compared below.

Upper ratings compared

Further datasheet entries

Sizing a 110 kW inverter

At 183.3 A maximum per phase, the AC cable, breaker and busbar must be sized for the 110K column and not for the 70K one. One cabinet carries all six ratings, so a design that starts with a smaller unit can often be upgraded by swapping the inverter. Compare the 150 kW PV ceiling with your array: with six trackers and 24 strings, group modules of the same tilt and azimuth on the same tracker.

Installing it

The manual wants a wall or strong frame that can bear the load, an almost vertical mount and ventilation in any enclosed room, with gaps shown on a diagram above, below and between units. It tells installers to keep the inverter away from children and not to store items beside it. Start-up follows the order used by Deye string inverters: AC breaker, PV breaker, inverter switch. Cable and breaker rows are listed per rating, so use the row for 110 kW. With 81 kg to move, plan two people or a hoist.

Utility-scale conditions

Ground-mounted and large-roof plants in the region face heat, dust and long cable runs. Install the 110K in shade where possible, keep the cooling path clean and choose the grid code at commissioning to suit the utility requirement.

Practical notes

A 150 kW PV input against 110 kW of AC gives a ratio of about 1.36. Each of the six trackers carries four strings at 40 A, and the 24 inputs fill the cabinet, so label strings from the start. The unit is 824 mm wide, so measure the wall and the access route before delivery. At 81 kg and the stated 4000 m altitude rating it is suited to large plants and to elevated sites.

Selection and installation notes

A grid-tied string inverter is selected from the array size, the string voltage window and the grid connection. Check the string open-circuit voltage at the lowest site temperature against the input limit and the operating voltage at high temperature against the MPPT window, balance the strings on each tracker, fit DC isolators and surge protection and keep the clearances on the data sheet. In hot sites allow for output derating, shade the unit and have the grid settings approved by the utility before connection.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Frequently asked questions

How many MPP trackers does SUN-110K-G03 have?

Six, with four string inputs on each, which makes 24 strings.

What is the maximum PV input?

Up to 150 kW at 1000 V maximum.

What is the maximum efficiency?

Up to 98.8% on the datasheet, with MPPT efficiency above 99%.

How heavy is the unit?

81 kg, so plan a lifting aid and a strong mounting frame.

Why does the page carry the datasheet only?

The manual is too large to host here, so the datasheet is attached and the manual can be requested.

Documents and quotation

Seven Star LLC does not list a price for the SUN-110K-G03; each quotation is prepared after we receive your code and quantity. As an independent supplier in Muscat we confirm availability before replying. Deye’s datasheet for the whole 70 to 110 kW G03 line is attached. Its manual exceeds our hosting limit, so request it separately for cable tables. Cross-check the details with the current manufacturer files. Related range: Solar Power.
