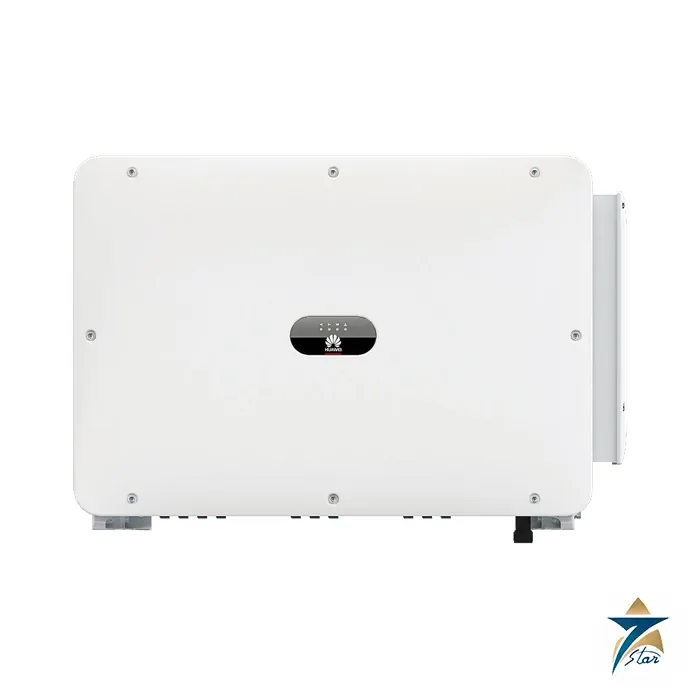

Huawei SUN2000-150K-MG0 150 kW Inverter

Name: Huawei SUN2000-150K-MG0 150 kW Inverter – Datasheet & Quote
Brand: Huawei
SKU: SUN2000-150K-MG0

A 150 kW smart string inverter for commercial and utility PV plants

The Huawei SUN2000-150K-MG0 is a three-phase, transformerless string inverter that Huawei calls a Smart PV Controller. It converts DC from up to seven MPPT inputs into 150 kW of AC power at 380, 400 or 480 V, with a peak efficiency of 98.8 percent at 480 V. Built-in smart string level disconnector, arc fault protection, PV ground-fault protection and PID recovery are listed as standard, and the IP66 enclosure is cooled by Smart Air Cooling.

Technical specifications

Parameter	Specification
Max. efficiency	98.6% at 400 V; 98.8% at 480 V
European efficiency	98.4%
Max. input voltage	1,100 V
MPPT operating voltage range	200 to 1,000 V
Start voltage	200 V
MPP trackers	7, with up to 3 inputs per tracker
Max. current per MPPT / per input	48 A / 23 A
Max. short-circuit current per MPPT	66 A
Nominal AC active power	150,000 W
Max. AC apparent power	165,000 VA
Max. AC active power (cos phi = 1)	165,000 W
Nominal output voltage	380 V / 400 V / 480 Vac
Rated grid frequency	50 Hz / 60 Hz
Nominal output current	227.9 A at 380 V; 216.5 A at 400 V; 180.4 A at 480 V
Max. output current	253.2 A at 380 V; 240.5 A at 400 V; 200.5 A at 480 V
Power factor range	0.8 leading to 0.8 lagging
Current THDi	Below 1 percent
Protection	Anti-islanding, AC overcurrent, DC reverse polarity, string fault monitoring, Type II DC and AC surge arresters, insulation resistance detection, residual current monitoring, smart string level disconnector, arc fault protection, terminal temperature detection, PID recovery, PV ground-fault protection
Communication	RS485, USB, MBUS (isolation transformer required); WLAN adaptor with FusionSolar app; optional Smart Dongle 4G / WLAN
Display	LED indicators; WLAN adaptor plus FusionSolar app
Dimensions (W x H x D)	1,000 x 710 x 395 mm
Weight	102 kg with mounting plate
Operating temperature	-25 to 60 degC
Cooling	Smart Air Cooling
Max. altitude	4,000 m
Relative humidity	0 to 100 percent
Protection degree	IP66
Topology	Transformerless
Connectors	DC: Amphenol HH4; AC: waterproof connector with OT/DT terminal
Certificates listed	EN 62109-1/-2, IEC 62109-1/-2, IEC 62116, IEC 61727, IEC 60068, IEC 61683
Grid standards listed	VDE-AR-N4105, EN 50549-1, EN 50549-2, RD 661, RD 1699, C10/11

Sizing the array and the grid connection

With 7 MPPTs and up to 3 strings each, the inverter accepts up to 21 DC inputs, each rated 23 A, which suits mixed roof orientations or large string counts on commercial and ground-mount plants. The AC side is selectable by project: the datasheet lists 380, 400 and 480 Vac nominal output, so confirm the grid voltage and the local grid code before ordering. Whatever the array size, the 1,100 V input ceiling must not be exceeded by the cold-temperature open-circuit string voltage. For the larger 1500 V class see the Huawei SUN2000-506KTL-H1; other units are listed under solar power.

What to confirm before ordering

The Huawei datasheet states that it shows a preliminary version and the information may change, so confirm the final data and the approvals required for your site, along with the communication option (Smart Dongle) and the monitoring platform you will use. Send the project grid voltage, array layout and quantity for a quotation.

Documents and quotation

The attached Huawei datasheet (two pages, preliminary version as marked) includes the efficiency curve, circuit diagram and technical specification.

The Huawei MA5616 access unit

The MA5616 is a 2U multi-service access module with plug-in boards. It delivers broadband and voice to subscribers over existing copper pairs, through ADSL2+, VDSL2 and POTS service boards, and connects upstream over GPON or Ethernet. In the listed build, CCUB is the main control board and GP1A is the uplink sub-board, described by resellers as one GPON port plus one GE port. Subscriber service boards occupy the remaining slots and have to be specified by type and port count.
