Sungrow SG33CX-P2 33 kW Multi-MPPT String Inverter

A 33 kW, 38 kg string inverter for commercial roofs

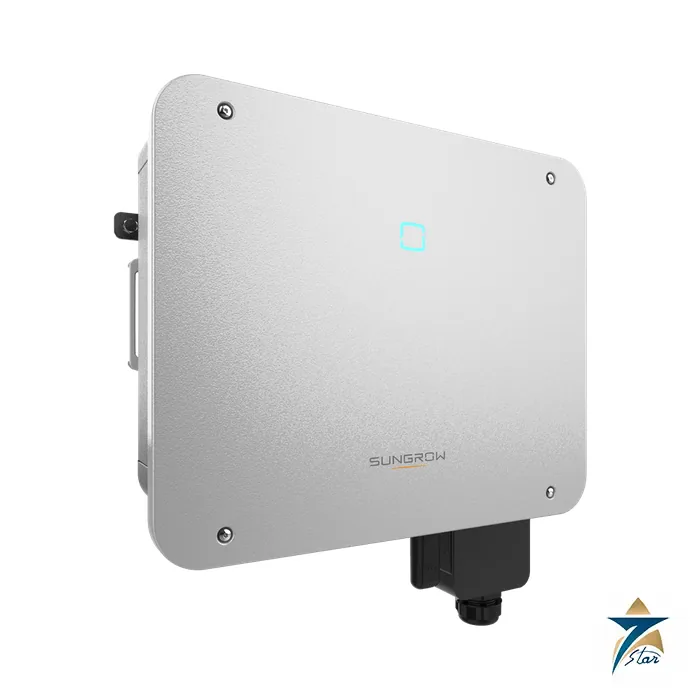

The Sungrow SG33CX-P2 is a three-MPPT string inverter for 1000 Vdc systems with 33 kW rated output (36.3 kVA maximum). It shares one datasheet with the SG25CX-P2 and SG30CX-P2, so the same housing, DC architecture and communications cover all three ratings.

Sungrow stresses easy handling, with a weight reduced by 34 percent to 38 kg, plug-and-play wiring with a buckle design, 15 A DC current input compatible with 500 W-plus modules, a built-in PID recovery function, IP66 protection, C5 anti-corrosion and AFCI 2.0.

SG33CX-P2 features

• 3 MPPTs, 2 strings each, 30 A per MPPT; compatible with 500 W-plus PV modules
• Maximum efficiency 98.5 percent and European efficiency 98.3 percent
• Dynamic shading optimization and smart IV curve diagnosis
• Plug and play with buckle design; 34 percent weight reduction
• DC Type I+II and AC Type II surge protection; AFCI 2.0; built-in PID recovery
• IP66 and C5; grid fault record for remote O&M
• Q-at-night function, LVRT, HVRT and ramp rate control

SG33CX-P2 technical specifications

Rating comparison (shared datasheet)

Common data, all three ratings

Choosing 25, 30 or 33 kW

Because the three ratings share hardware, choose the one that matches the utility export limit and array size: the 33 kW unit supports up to 46.2 kWp of modules, a derived DC/AC ratio of 1.4. Check that the AC cable (16 to 35 mm2, OT terminal) and breaker suit the 55.2 A maximum current, and note the footnote that apparent power of the 30 kW model is limited to 30 kVA in certain countries. Optimizer and RSD compatibility need prior consultation with Sungrow.

Installation and operation notes

Handling is easy at 38 kg for a 645 x 575 x 245 mm unit, and the buckle design speeds wall-bracket mounting. AC cable uses OT lugs; DC uses Evo2 connectors up to 6 mm2. Leave air clearance for forced cooling, commission through Bluetooth and the app, and use RS485 for data logging. Follow the user manual for the full-load MPPT voltage range.

Where the SG33CX-P2 is used

It fits mid-size commercial rooftops, workshops and car-park canopies where three MPPTs are enough. The 60 C operating limit and C5 rating address hot and coastal environments, subject to normal shading and ventilation checks. Utility interconnection rules for each GCC country are separate from the datasheet.

Installation and selection notes

Design the string layout from the module data so that the voltage and current stay inside the inverter window over the temperature range at the site, and plan mounting with enough clear space for cooling. Check the AC cable size, the protection devices, the communication method and the local grid connection requirements before ordering, and keep the commissioning record for the warranty file.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any hoses, couplings or accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification before a purchase is confirmed. Ratings, flows, pressures and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Related Sungrow items

Sungrow lists the SG36CX-P2, SG40CX-P2 and SG50CX-P2 in the next series, the SG125CX-P2 and SG150CX for larger roofs, and the AC22E-01 charger for solar-assisted EV charging.

Frequently asked questions

Does this datasheet also cover the SG25CX-P2 and SG30CX-P2?

Yes. All three ratings share one datasheet, with ratings compared in the table above.

What is the weight?

38 kg, a 34 percent reduction according to Sungrow.

How many MPPTs does it have?

Three MPPTs with two strings each, 30 A per MPPT.

What is the protection class?

IP66, with C5 corrosion protection.

Is Seven Star LLC a distributor of Sungrow?

No. Seven Star LLC is not a Sungrow distributor; it is an independent Muscat supplier that obtains genuine Sungrow products against customer enquiries.

Documents and quotation

This listing carries the SG25/30/33CX-P2 datasheet (Version 5) for reference. Use it with the manual to confirm the correct order code, then send the code, options and quantity via the quote form. Seven Star LLC works from Muscat as an independent supplier for GCC customers, and prices are provided on request only. Always confirm ratings, options and approvals against the latest manufacturer documents. See Solar Power and the Sungrow brand page for related items.
