Brand: Victron Energy
Victron Phoenix Inverter VE.Direct 250 to 1600 VA
Description
Pure sine wave inverters from 250 to 1600 VA with VE.Direct
The Victron Phoenix Inverter VE.Direct range converts 12, 24 or 48 V DC into 230 V or 120 V AC pure sine wave in sizes from 250 VA to 1600 VA. Victron describes a full-bridge plus toroidal transformer topology that is short-circuit proof and protected against overheating, with high start-up power for loads such as LED lamp converters, halogen lamps and power tools. The VE.Direct port connects to a computer with an interface cable or to phones and tablets with a Bluetooth dongle, and settings such as low-battery alarm and cut-off, output voltage between 210 and 245 V, frequency and ECO mode are configurable.
Technical specifications
| Rating | Models | Continuous power at 25 / 40 C | Peak power | Max. efficiency (12 / 24 / 48 V) |
|---|---|---|---|---|
| 250 VA | 12/250, 24/250, 48/250 | 200 / 175 W | 400 W | 87 / 88 / 88 % |
| 375 VA | 12/375, 24/375, 48/375 | 300 / 260 W | 700 W | 89 / 89 / 90 % |
| 500 VA | 12/500, 24/500, 48/500 | 400 / 350 W | 900 W | 90 / 90 / 91 % |
| 800 VA | 12/800, 24/800, 48/800 | 650 / 560 W | 1500 W | 90 / 90 / 91 % |
| 1200 VA | 12/1200, 24/1200, 48/1200 | 1000 / 850 W | 2200 W | 91 / 91 / 92 % |
| 1600 VA | 12/1600 | 1450 / 1200 W | 2200 W | 92 % |
| Parameter | Specification |
|---|---|
| Output | 230 V AC or 120 V AC +/-3 percent, 50 Hz or 60 Hz +/-0.1 percent |
| Input voltage range | 9.2-17 / 18.4-34 / 36.8-62 V DC |
| DC low shut-down (adjustable) | 9.3 / 18.6 / 37.2 V; dynamic cut-off available |
| Low restart and alarm | 10.9 / 21.8 / 43.6 V |
| ECO mode | Standby below preset load (minimum 15 W), default retry every 2.5 s |
| Protection | Short-circuit proof; protected against overheating from overload or high ambient temperature (protection codes a-f in the datasheet) |
| Operating temperature | -40 to +65 C, derate 1.25 percent per C above 40 C; fan-assisted cooling |
| Protection category | IP21 |
| Enclosure | Steel chassis and plastic cover, blue RAL 5012 |
| AC outlets | 230 V: Schuko, IEC-320, UK, AU/NZ; 120 V: Nema 5-15R, GFCI |
| Weight | 2.4 kg (250 VA) to 8.9 kg (1600 VA) |
| Battery connection | Screw terminals, 10 to 50 mm2 depending on size |
Choosing a model
The model code gives battery voltage and VA, for example 24/800. Size the inverter from the continuous load including power factor, and check that the peak power covers motor and lamp start-up. Use the 48 V versions where the DC bus is 48 V, as higher voltage means lower DC current and thinner cables. ECO mode saves battery power when the load is small, but sensitive loads under 15 W may not wake the inverter. For automatic changeover to another AC source Victron recommends its Filax transfer switch (switchover under 20 ms). Units for larger loads, such as the Victron MultiPlus-II 48/5000, are listed in solar power.
Documents and quotation

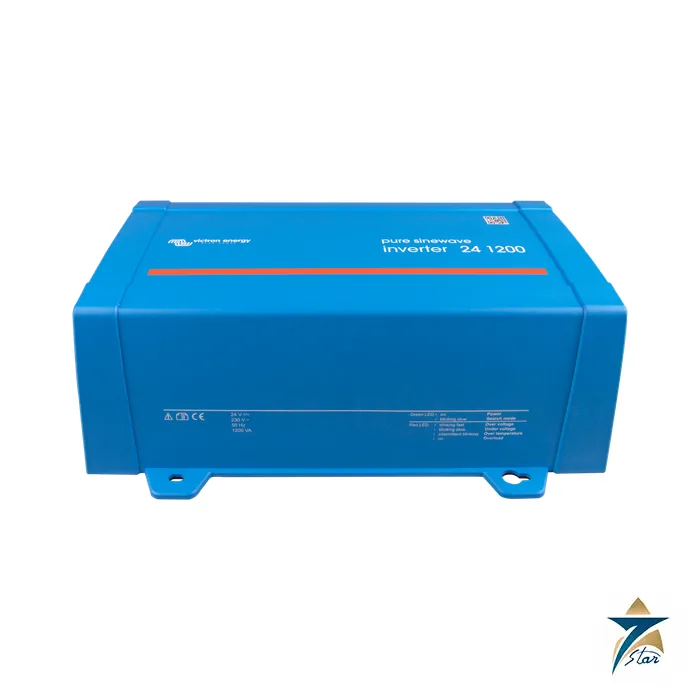

The attached Victron datasheet covers the 250 VA to 1600 VA range. The product image shows a 24/1200 unit as an example of the series. State battery voltage, VA rating, AC voltage and frequency, and the outlet type for a quotation.
Datasheets & Documents
- Datasheet Victron Inverters VE.Direct 250 VA to 1600 VA datasheet Download
Reviews (0)
About brand
A battery-based backup or off-grid system needs one device that inverts, charges the battery and switches between AC sources. In the Victron Energy program that device is the MultiPlus-II inverter charger. Victron Energy, founded in 1975 and based in Almere, Netherlands, makes inverters, chargers and battery systems.
Seven Star LLC is an independent supplier in Muscat. We list the MultiPlus-II 48/5000/70-50 and source Victron inverter chargers for buyers in Oman.
Reading the Victron MultiPlus-II 48/5000/70-50 model name
The name carries the main ratings: a 48 V battery system, 5000 VA inverter output, a 70 A battery charger and a 50 A AC transfer switch. Victron's documentation gives a 230 VAC output and continuous power of 4000 W at 25 °C, falling to 3700 W at 40 °C. The unit supports Victron's PowerControl and PowerAssist functions for use with a limited grid or generator supply.
Ordering Victron Energy equipment: what we need
Send the complete model name, state if you need the standard or the GX version, and give the battery voltage and battery type. Tell us if the unit will run alone, in parallel or in a three-phase group, and the ambient temperature at the site, which matters in the GCC. We check the model against Victron documentation and provide the manufacturer's datasheet on request.
Related products
Frequently Asked Questions
What sizes does the Phoenix VE.Direct range cover?
250, 375, 500, 800, 1200 and 1600 VA, at 12, 24 or 48 V (1600 VA at 12 V only).
What waveform does it produce?
Pure sine wave, 230 V or 120 V AC, 50 or 60 Hz.
What is the peak power of the 1200 VA model?
2200 W.
Is there a monitoring port?
Yes. The VE.Direct port connects to a computer, or to phones with a Bluetooth dongle.
What is the operating temperature range?
-40 to +65 C with derating above 40 C.
