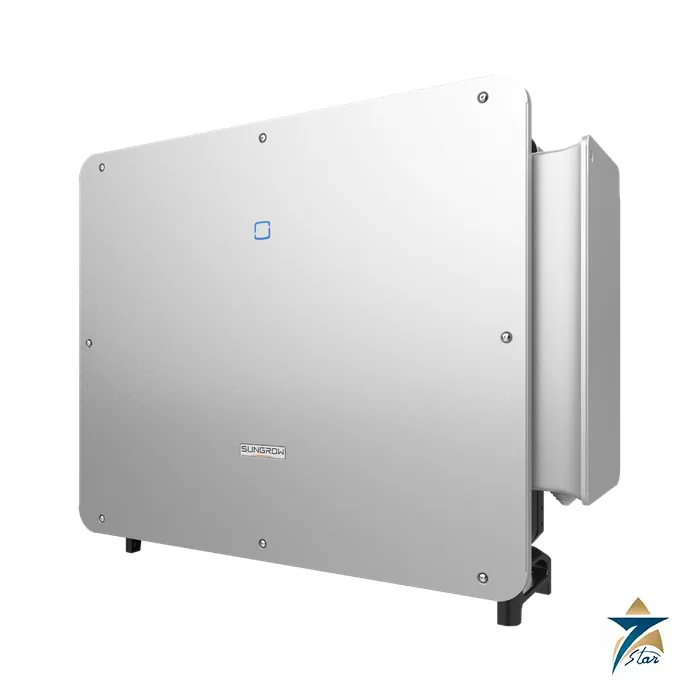

Sungrow SG350HX 352 kVA 1500 V Multi-MPPT String Inverter

A 1500 Vdc string inverter for utility-scale solar blocks

The Sungrow SG350HX is a multi-MPPT string inverter for 1500 Vdc systems that delivers 352 kVA at 30 C, 320 kVA at 40 C and 295 kVA at 50 C, with an 800 V three-phase AC output. It has 12 independent MPPTs (16 optional) with two connectors each, and Sungrow quotes a maximum efficiency of 99.02 percent and 98.8 percent European efficiency.

It is built for large ground-mount plants: 20 A per string (compatible with 500 Wp-plus modules), data exchange with tracker systems to improve yield, power line communication (PLC) to save communication cable, Q-at-night function, and grid support with reactive power response under 30 ms and SCR of 1.15 or more for weak grids.

SG350HX features

• Up to 16 MPPTs; maximum efficiency 99.02 percent
• Two strings per MPPT, no fear of string reverse connection; 24-hour real-time AC and DC insulation monitoring
• Smart IV Curve diagnosis for active O&M
• Q at night function; LVRT, HVRT, Q-U and P-f control
• Stable operation in extremely weak grid conditions (SCR 1.15 or more); reactive power response below 30 ms
• Power line communication (PLC) and RS485; data exchange with tracker system
• IP66, transformerless; DC Type II and AC Type II surge protection

SG350HX technical specifications

Input (DC)

Output (AC)

Protection and general data

Selecting 12 or 16 MPPT configuration

The standard SG350HX has 12 MPPTs at up to 40 A; the optional 16-MPPT version limits each input to 30 A. The datasheet shows output of 352 kVA only up to 30 C ambient, so a hot site should be rated on the 320 kVA at 40 C or 295 kVA at 50 C values. Note also the 800 V AC output, which needs a matching MV transformer, as in the MVS3200-LV station. Confirm the PID option and cable sizes at order.

Installation and operation notes

At 116 kg the unit is a two-person plus lifting-aid install on a wall bracket or frame, and it has no AC switch, so an external AC breaker or disconnect is required in the design. The datasheet gives altitude derating above 3000 m. PLC communication removes the need for separate RS485 cable runs in large fields. Check the MC4-Evo2 connector size (6 or 10 mm2) against the string cable.

Where the SG350HX is used

It targets utility-scale and large commercial ground-mount plants with 1500 V arrays and central MV transformers. The 60 C ambient limit with derating and IP66 enclosure address desert heat and dust, but yield modelling should include the derating curve above 30 C and soiling. Grid-code approval for a given country must be confirmed separately.

Installation and selection notes

Design the string layout from the module data so that the voltage and current stay inside the inverter window over the temperature range at the site, and plan mounting with enough clear space for cooling. Check the AC cable size, the protection devices, the communication method and the local grid connection requirements before ordering, and keep the commissioning record for the warranty file.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any hoses, couplings or accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification before a purchase is confirmed. Ratings, flows, pressures and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Related Sungrow items

The MVS3200-LV and MVS4480-LV turnkey stations are designed around the SG350HX in Sungrow documents. The SG125CX-P2 and SG150CX cover 1000 Vdc commercial roofs. The SG320HX shares the same family page.

Frequently asked questions

What is the maximum DC voltage?

1500 V, with an MPP range of 500 V to 1500 V.

What is the rated AC output?

352 kVA at 30 C, 320 kVA at 40 C and 295 kVA at 50 C, at 800 V three-phase.

How many MPPTs does it have?

12 as standard, 16 as an option.

Does it have an AC disconnect?

No. The datasheet lists DC switch yes and AC switch no.

Is Seven Star LLC a distributor of Sungrow?

No. Seven Star LLC is an independent supplier in Muscat, Oman, sourcing genuine Sungrow products for GCC customers on request.

Documents and quotation

To request a quote, send the full model or order code, any options and the quantity. The reference document, the SG350HX datasheet (Version 23, 2025), is attached to this page; please check the style code against it and the manual. Seven Star LLC is an independent supplier based in Muscat and ships Sungrow products around the GCC on enquiry. Prices are quoted individually, and specifications should be confirmed with current manufacturer data. Browse Solar Power or the Sungrow brand page.
