EUCHNER ZSB054784 Three-Stage Enabling Switch with +/- Buttons

Three-stage enabling switch with illuminated plus and minus buttons

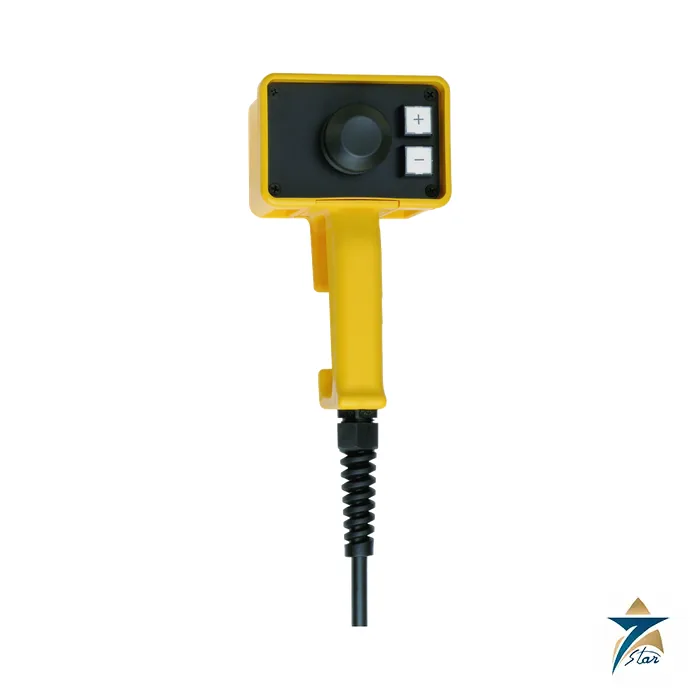

The EUCHNER ZSB054784 is a handheld three-stage enabling switch from the ZSB series, in housing size G3 with a 7 m coiled connecting cable. It is used where an operator must move a robot, handling axis or machine in setup or teach mode with the guards open. Motion is enabled only in the middle position of the enabling button, and both releasing the button and pressing it fully through (the panic position) remove the enable signal.

The ZSB differs from a plain enabling switch by two illuminated pushbuttons, a plus and a minus button, that the machine builder can assign freely, for example to jog an axis in the positive or negative direction. The yellow plastic housing has a slide-in label and a holder is included.

Technical specifications

Using a three-stage enabling switch

In stage 1 the button is released and the enabling contacts are open. In stage 2, the centre position, the contacts are closed and the controller may permit hazardous motion at reduced speed. In stage 3 the button is pressed through and the contacts open again. The exact switching sequence depends on the wiring, so follow the function sequence and travel diagram in the operating instructions.

The enabling contacts must be evaluated in two channels by a suitable safety relay or safety controller, and the B10D value belongs in the PL calculation with the expected number of operations. The cable ends in flying leads, so it is terminated in a junction box or with a connector chosen by the machine builder. EUCHNER also offers ZSB versions with other housings, straight cables, plug connectors, key-operated switches and selector switches.

Documents and quotation

The EUCHNER operating instructions for the ZSB enabling switch, available from the official product page linked below, cover wiring, function sequence and safety data. For a quotation, give the order number 054784, the quantity and the safety relay or controller it will connect to. Related safety devices are under Safety Switches and Guard Locking.

Where the ZSB054784 fits in a safety concept

Standards for robots and machinery allow work inside a guarded area during setup, teaching or troubleshooting only when hazardous motion is restricted, for example by reduced speed, and when the operator holds an enabling device. The ZSB054784 provides that enabling function. Its three-stage design reflects how people react to danger: they either let go of the button or clench it hard. Both reactions stop motion, because only the middle position enables. EUCHNER lists characteristic values for EN ISO 13849-1 and EN IEC 62061, and the device carries CCC, DGUV and cULus approvals.

The plus and minus buttons are separate, non-safety elements. They are wired to standard controller inputs and give the operator a convenient way to jog an axis or step through a sequence, while the enabling contacts remain the safety function. The illumination can signal states such as “axis selected” or “jog active”.

Selection checklist for the ZSB054784

• Confirm that a three-stage enabling device with two NO enabling contacts and one positively driven NC contact matches the safety relay or safe controller.
• Check that a 7 m coiled cable gives enough reach in the cell; other cable lengths and connectors are available in the ZSB range.
• Decide how the flying leads will be terminated: junction box, cabinet terminals or a connector.
• Plan the use of the plus and minus buttons and their lamp supply in the PLC program.
• Verify the ambient temperature at the workplace stays within -5 to +50 °C.

Installation and maintenance

Connect the screened cable cores as shown in the operating instructions and ground the overall screen. Wire the enabling contacts in two channels to a safety relay or safe controller that detects cross-circuits and checks that both channels switch together. Use the included holder to store the device where it cannot be damaged by moving machinery. Test the three-stage function at commissioning and at regular intervals: released, middle position and pressed through. Replace the device when the B10D-based number of operations is reached or if the cap, housing or cable is damaged.

Typical applications in Oman and the GCC

The ZSB054784 is used for teaching and setup on welding robots, palletising and handling robots, machine tools, presses and special-purpose assembly machines, wherever an operator must observe motion closely inside the guarded area.

Why source from Seven Star LLC

Seven Star LLC supplies EUCHNER enabling switches and safety devices across Oman and the GCC. Our team can help confirm the correct ordering code and accessories before you request a quote.

When planning a teach pendant workstation, remember that the enabling device is only one part of the safety function. A risk assessment should define the reduced speed, the stop category used when enabling is released, how the emergency stop is provided, and how the operator selects the setup mode. The ZSB054784 then supplies the hand-held enabling input that ties these measures together.
