Brand: SICK

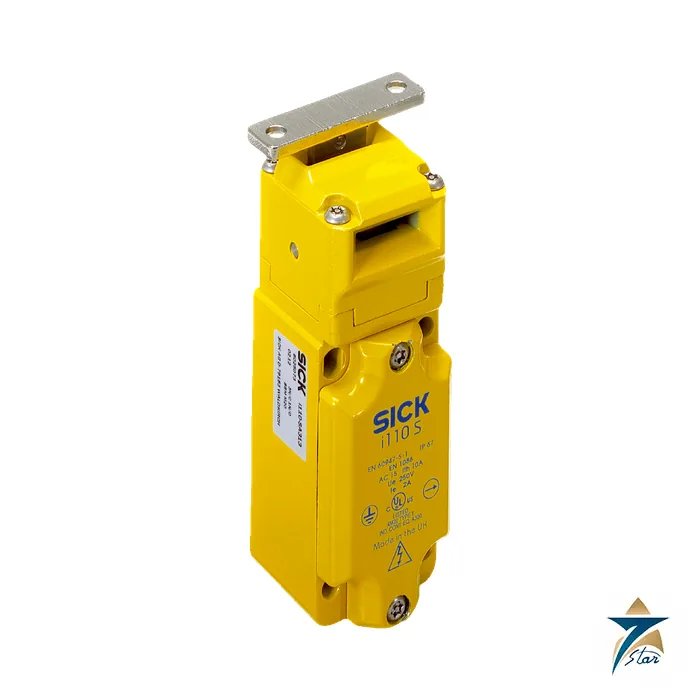

SICK i110-SA223 i110S Safety Switch
Description
i110-SA223 is a SICK i110S safety sensor (part no. 6025074) that monitors the position of a guard door or flap and gives a safe release signal only while the guard is closed. The catalogue summary lists: system part: sensor; positive action N/C contacts: 2; N/O contacts: 2; housing material: Metal; connection type Detail: Cable gland, 1 x M20.
How the i110-SA223 works and where it fits
On a machine, the safety switch is only one element of the safety function. Series connection of several switches saves wiring on machines with many doors, but diagnostic coverage and the achievable performance level depend on how the chain is wired and on the number of devices.
Tampering is the main reason ISO 14119 asks for coded actuators: a device with a high coding level cannot be bridged with a spare actuator found on site. Door play affects the switching distance in real life; a door that moves a few millimetres in its frame can pass a gap that the data sheet marks as the safe switching distance.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | i110-SA223 |
| Part number | 6025074 |
| Product family | i110S |
| Sensor principle | Electro-mechanical |
| Positive action N/C contacts | 2 |
| N/O contacts | 2 |
| Retaining force | ≤ 12 N |
| Actuation frequency | ≤ 7,200 /h |
| Actuation directions | 5 |
| Approach speed | ≤ 10 m/min |
| B10d parameter | 2 x 10⁶ switching cycles (with small load) |
| Type | Type 2 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Safe series connection | None, only individual wiring (with diagnostics) |
| Connection type | Cable gland, 1 x M20 |
| Switching principle | Slow action switching element |
| Usage category | AC-15/DC-13 (IEC 60947-5-1) |
| Rated operating current (voltage) | 3 A (240 V AC); 2 A (24 V DC) |
| Rated insulation voltage Ui | 240 V |
| Rated impulse withstand voltage Uimp | 2,500 V |
| Switching voltage | ≥ 5 V DC |
| Switching current (switching voltage) | 5 mA (5 V DC) |
| Weight | 0.54 kg |
| Material: Housing | Zinc diecast |
| Surface treatment | Varnished |
| Mechanical life | 1 x 10⁶ switching cycles |
| Enclosure rating | IP67 (IEC 60529) |
| Ambient operating temperature | –20 °C … +80 °C |
| EU declaration of conformity | Yes |
| UK declaration of conformity | Yes |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; China RoHS; cULus certificate; TÜV approval; TÜV approval annex |
Ordering i110-SA223: type code, part number and fit
Wiring data to note: connection: cable gland, 1 x M20; current: 3 A (240 V AC); 2 A (24 V DC).
Housing and environmental limits listed: storage temperature –20 °C … +80 °C; operating temperature –20 °C … +80 °C; enclosure rating IP67 (IEC 60529); weight 0.54 kg.
For installation, mount sensor and actuator rigidly on the frame and the door so the door cannot move beyond the switching distance, and keep to the mounting orientation in the data sheet.
Draw the safety circuit before ordering: which relay or safe input evaluates the signal and how the reset works are part of the function.
Documents and quotation
Attached to this page: the SICK data sheet for i110-SA223, part no. 6025074, as published by SICK. To request a quotation, submit the part number with quantity and destination in the RFQ form; Seven Star LLC is an independent supplier based in Muscat. Related SICK items are listed under Safety Switches & Guard Locking. Check wiring, mounting and approvals against the data sheet before you order, since the data sheet is the governing document.
Datasheets & Documents
- Data Sheet SICK i110-SA223 official data sheet (part no. 6025074) Download
Reviews (0)
About brand
SICK is the German maker of industrial sensors: photoelectric and proximity sensors, safety laser scanners and light curtains, encoders, distance sensors, code readers and gas analysers. Erwin Sick, an optics engineer, founded it in Munich in 1946, and in 1952 it introduced its first marketable accident-prevention light curtain, which protected press operators by stopping the machine when a hand broke the light beam. The company moved to Waldkirch in the Black Forest in 1956 and is still headquartered there. It is a privately held company, and has been an Aktiengesellschaft (AG) since 1996.
SICK company profile
| Founded | 1946, Munich, Germany, by Erwin Sick (1909–1988) |
|---|---|
| Headquarters | Waldkirch, Baden-Württemberg, Germany (since 1956) |
| Ownership | Privately held; after the founder's death in 1988 his widow Gisela Sick became the main shareholder. Legal form SICK AG since 1996 |
| Size | More than 12,000 employees and group revenue of about EUR 2.3 billion (company figures for 2023) |
| First breakthrough | Accident-prevention light curtain for presses, shown in Hanover in 1952 |
| International growth | First foreign subsidiary in France in 1972, United States in 1976; today sales and service companies worldwide |
| Product families | Photoelectric, inductive, capacitive, magnetic and ultrasonic sensors; safety laser scanners, light curtains, safety controllers and relays; encoders and motor feedback systems; distance sensors and LiDAR; barcode and 2D code readers and machine vision; gas analysers, dust and flow measurement for process and emissions monitoring |
Milestones
- 1946: Erwin Sick receives a licence to run his engineering firm in Munich.
- 1952: The first marketable accident-prevention light curtain is presented in Hanover and goes into series production.
- 1956: The company moves to Waldkirch with 25 employees.
- 1972 and 1976: Subsidiaries are founded in France and the United States.
- 1996: SICK becomes an Aktiengesellschaft.
- Today: Sensors for factory and logistics automation, machine safety and process analysis, with a large share of revenue outside Germany.
Choosing a SICK sensor
For object detection, the sensing principle comes first. A retro-reflective sensor (WL series) sends light to a reflector and switches when an object breaks the beam; it is reliable over long distances and easy to align. A sensor with background suppression (WTB series) detects an object at a set distance and ignores what is behind it, which suits conveyors with shiny or dark backgrounds. A through-beam pair (WS/WE) gives the longest range and the highest reliability in dust. For transparent bottles and film, use a model built for transparent objects (for example WL12G-3B or WL150-P420). The digits in the code also matter: "P" usually means a PNP output and "N" NPN, and the last digits set the connector or cable. For machine guarding, a safety laser scanner such as nanoScan3 or microScan3 protects an area, while a safety controller such as Flexi Soft combines several safety devices.
Where SICK products are used
In Oman and the GCC, SICK sensors are used in packaging and bottling lines, food and beverage plants, logistics and airport baggage handling, cement and steel plants, ports and cranes, automated warehouses, and on machines built by European OEMs. SICK safety scanners guard robots and automated guided vehicles, and its encoders give position feedback on motors, hoists and conveyors.
SICK products we list
| Family | Examples |
|---|---|
| Photoelectric sensors | WL12-3P2431, WTB12-3P2431, GTB6-P4211, VL18-4P3240, WL12G-3B2531, WS/WE100, KT5W contrast, W26 IO-Link |
| Proximity, cylinder and ultrasonic sensors | IME12-08NPSZC0S, IME18-05BPSZC0S, MZT8, UM18 4-20 mA, UM30, UFN3 fork |
| Machine safety | nanoScan3, microScan3, S300 Professional, Flexi Soft FX3-CPU1, FX3-XTIO, ReLy OSSD |
| Encoders and motor feedback | DFS60B, AFM60 PROFINET, AFS60 SSI, ATM60 PROFIBUS, SRS50, EFS50 |
| Distance sensors and code readers | DT50, DL50, DT35, Lector632 |
Ordering SICK products: what we need
Send the type code and the 7-digit SICK part number from the label (for example WTB12-3P2431 together with its part number). For a replacement sensor, add the output (PNP or NPN), connection (M8, M12 or cable) and sensing distance. For encoders, add the interface (incremental, SSI, PROFIBUS, PROFINET), resolution and shaft type. For safety scanners, tell us the model and whether the existing configuration needs to be kept.
Facts checked against SICK's published company history and annual figures, October 2026.
Browse SICK products by category: Sensors & Transmitters.
Related products
Frequently Asked Questions
What is the SICK i110-SA223?
It is a SICK safety switch (i110S), part no. 6025074. The catalogue summary reads: System part: sensor; Positive action N/C contacts: 2; N/O contacts: 2; Housing material: Metal.
What supply does the i110-SA223 need?
See the data sheet for the supply. Check the output and interface rows in the table for the signal levels.
What protection rating and temperature range are given?
Enclosure rating: IP67 (IEC 60529). Ambient operating temperature: –20 °C ... +80 °C. Confirm both against the site before ordering.
Does the page include the data sheet?
Yes. The official SICK data sheet for part no. 6025074 is attached as a PDF and linked on this page; where it differs from the page text, the data sheet applies.
What should be confirmed before ordering the i110-SA223?
Compare the full type code and part number 6025074 with the device being replaced, check supply, output or interface and mounting, and send the details through the RFQ form. Seven Star LLC is an independent supplier, not a SICK partner.
