SICK i10-E0233 Lock i10 Lock Guard Locking Safety Switch
Description

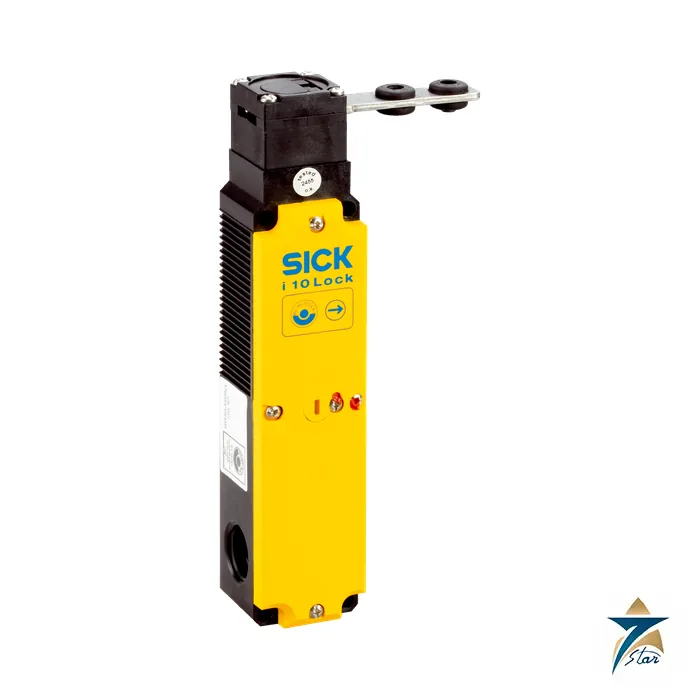

i10-E0233 Lock is a SICK i10 Lock guard locking safety switch (part no. 6022585) that monitors a door and holds it locked by solenoid until the hazard has gone. The catalogue summary lists: locking principle: Power to lock; locking force FZh: 1,000 N; connection type Detail: Cable gland, 3 x M20; safe series connection: None, only individual wiring (with diagnostics); positive action N/C solenoid monitoring contacts: 2.
How the i10-E0233 Lock works and where it fits
It also keeps the door locked until the machine is safe to access, for example while a rotating tool or a hot process is still running down after the stop command. Power-to-lock devices keep the door locked while the solenoid is energised and release when power is removed or the control unlocks it.
This suits applications where a person must be able to open the door quickly if the hazard is only brief, and in this version the locking principle is shown in the table. The locking force Fzh listed in the data sheet is the force the lock can withstand on the door; it must be higher than the loads that a person or a door movement can apply.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | i10-E0233 Lock |
| Part number | 6022585 |
| Product family | i10 Lock |
| Sensor principle | Electro-mechanical |
| Locking principle | Power to lock |
| Positive action N/C solenoid monitoring contacts | 2 |
| N/O solenoid monitoring contacts | 1 |
| Positive action N/C door monitoring contacts | 0 |
| N/O door monitoring contacts | 0 |
| N/C contact for door monitoring | 1 |
| Locking force Fmax | 1,300 N (EN ISO 14119) |
| Locking force FZh | 1,000 N (EN ISO 14119) |
| Actuation force | ≥ 10 N |
| Retaining force | ≤ 20 N |
| Actuation frequency | ≤ 1,200 /h |
| Actuation directions | 4 |
| Approach speed | ≤ 20 m/min |
| B10d parameter | 3 x 10⁶ switching cycles (with small load) |
| Type | Type 2 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Safe series connection | None, only individual wiring (with diagnostics) |
| Connection type | Cable gland, 3 x M20 |
| Contamination rating | 3 |
| Switching principle | Slow action switching element |
| Usage category | AC-15/DC-13 (IEC 60947-5-1) |
| Rated operating current (voltage) | 4 A (230 V AC); 4 A (24 V DC) |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2,500 V |
| Type of output | Electro-mechanical contacts |
| Power consumption | ≤ 8 W |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; China RoHS; cULus certificate |
Selection and installation notes for i10-E0233 Lock
Wiring data to note: supply of 20.4 V DC … 26.4 V DC; outputs of electro-mechanical contacts; power draw of ≤ 8 W; current of 4 A (230 V AC); 4 A (24 V DC); connection of cable gland, 3 x M20.
Housing and environmental limits listed: weight is 0.46 kg; storage temperature is –20 °C … +55 °C; enclosure rating is IP67 (IEC 60529); operating temperature is –20 °C … +55 °C.
Before ordering, confirm the locking principle (power to lock or power to release), the locking force, the number of N/C and N/O contacts, the cable gland and the actuator, which is usually a separate item.
For installation, align the actuator with the head so that the door cannot be forced past the guard, mount the switch on the fixed frame, and protect the head and the actuator from impact.
Documents and quotation
Attached to this page: the SICK data sheet for i10-E0233 Lock, part no. 6022585, as published by SICK. Quotations are prepared by Seven Star LLC, an independent supplier in Muscat, once you send the part number, quantity and site through the RFQ form. Browse more in Safety Switches & Guard Locking. Compare the complete type code with your existing unit and controller before ordering; the data sheet prevails if it differs from this page.
