Alfa Laval AlfaNova 27 Fusion-Bonded Plate Heat Exchanger
Description
A 100 percent stainless steel fusion-bonded heat exchanger

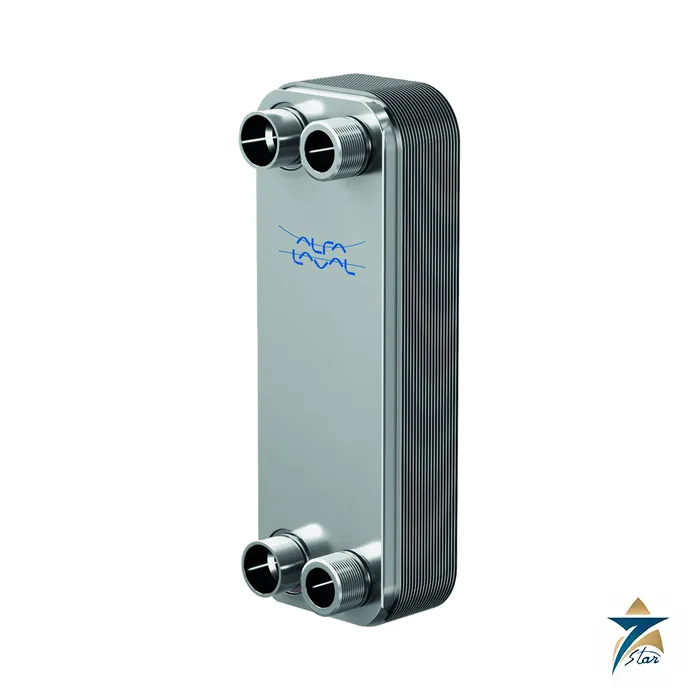

The Alfa Laval AlfaNova 27 is a gasket-free, copper-free plate heat exchanger in which stainless steel plates are joined by AlfaFusion filler material, also made of stainless steel. Alfa Laval positions it for duties with high cleanliness demands, aggressive media such as ammonia, or where copper and nickel contamination is unacceptable, and quotes operation up to 550 C (1022 F). The same leaflet covers the AlfaNova 27, the higher-pressure HP 27 and the XP 27, which is aimed at CO2 applications.
Technical specifications
| Parameter | Specification |
|---|---|
| Construction | Fusion-bonded plate heat exchanger, gasket free |
| Materials (cover plates, connections, plates, filler) | Stainless steel throughout, including the AlfaFusion filler |
| Maximum temperature | Up to 550 C / 1022 F (PED high-temperature version) |
| Pressure variants | AlfaNova 27, HP 27 and XP 27; the XP pressure/temperature graph scale reaches 57 bar (827 psi) |
| Volume per channel | 0.05 L (0.0132 gal) |
| Maximum particle size | 1.2 mm (0.047 in) |
| Max. flow rate | 14 m3/h (61.6 gpm), water at 5 m/s connection velocity |
| Flow directions | Parallel |
| Number of plates (n) | 6 to 100 |
| A-measurement (pack width) | 11 + 2.42 x n mm; HP 13 + 2.42 x n mm; XP 15 + 2.42 x n mm |
| Weight (excluding connections) | 1 + 0.13 x n kg; HP 1.5 + 0.13 x n kg; XP 2 + 0.13 x n kg |
| Connection types shown | External thread, internal thread, soldering, welding |
| Testing | All units are pressure and leak tested |
The leaflet gives PED-approved pressure/temperature graphs for the HP 27 and XP 27 versions, including high-temperature variants; use them, not the single maximum figures here, for design.
Typical duties
Alfa Laval lists HVAC heating and cooling, refrigeration, oil cooling, and industrial or process heating and cooling. The narrow channels give high turbulence and a self-cleaning effect, so clean secondary circuits, chiller and heat-pump loops, hydraulic and lube oil coolers and compact skid-mounted systems are natural fits, while dirty or fibre-bearing media are not. Units are custom-built from standard components: the number of plates, connection type and pressure variant are specified per project.
Selection considerations: confirm that both media are compatible with stainless steel and the stainless filler at the operating temperature, that the fluid is free of particles above 1.2 mm, and that thermal expansion and pressure pulsation on the connected piping are within the leaflet limits. The leaflet notes that the stainless construction avoids copper and nickel release, which suits loops with high cleanliness demands.
Documents and quotation
The attached Alfa Laval AlfaNova 27 / HP 27 / XP 27 leaflet (CHE00046) carries the data above. For gasketed alternatives that can be opened and cleaned see the Alfa Laval M6 and the other units under cooling equipment. Send duty data, media, design pressure and connection standard for a quotation.
