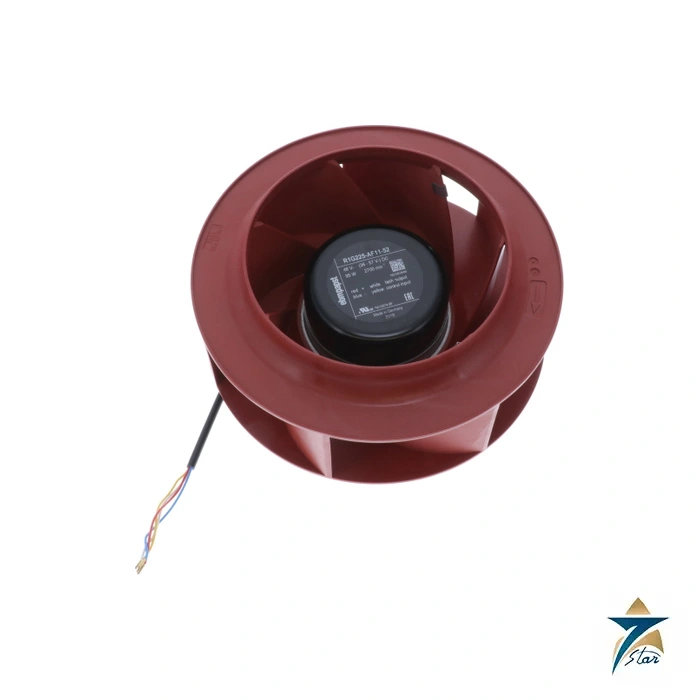

ebm-papst R1G225-AF11-52 DC Fan
Description
225 mm fan for integration into equipment
The ebm-papst R1G225-AF11-52 is a 225 mm DC fan with a nominal 48 V supply and a documented operating voltage range of 36–57 V. Its manufacturer free-air operating data lists 2700 rpm, 95 W and 2.2 A.
The fan is a component for installation in equipment. The complete assembly needs appropriate guards and installation provisions; select it with the system airflow path and operating environment in mind.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ebm-papst |
| Model | R1G225-AF11-52 |
| Nominal size | 225 mm |
| Nominal supply | 48 V DC |
| Operating voltage | 36–57 V DC |
| Free-air speed | 2700 rpm |
| Free-air power/current | 95 W / 2.2 A |
| Mass | 1.5 kg |
| Control | 0–10 V / PWM |
| Tachometer | 3 pulses/revolution; maximum 10 mA sink |
| Operating temperature | −25 to +60 °C |
| Protection | IP42 |
| Operating mode | S1 |
Control and operating conditions
The control interface accepts a 0–10 V or PWM signal. The tachometer output provides 3 pulses per revolution with a maximum 10 mA sink current. Match the control and feedback requirements to the existing equipment.
The documented operating temperature is −25 to +60 °C, with IP42 protection and continuous S1 operation. Apply the manufacturer installation instructions and environmental restrictions to the complete equipment.
The inlet ring/nozzle reference 96358-2-4013 is explicitly excluded from the documented fan scope. List the required inlet component and other installation accessories separately.
Replacement enquiries
Send Seven Star LLC the complete R1G225-AF11-52 code, quantity, supply, control-signal requirements and existing installation photographs. Include the inlet arrangement and mounting requirements.
