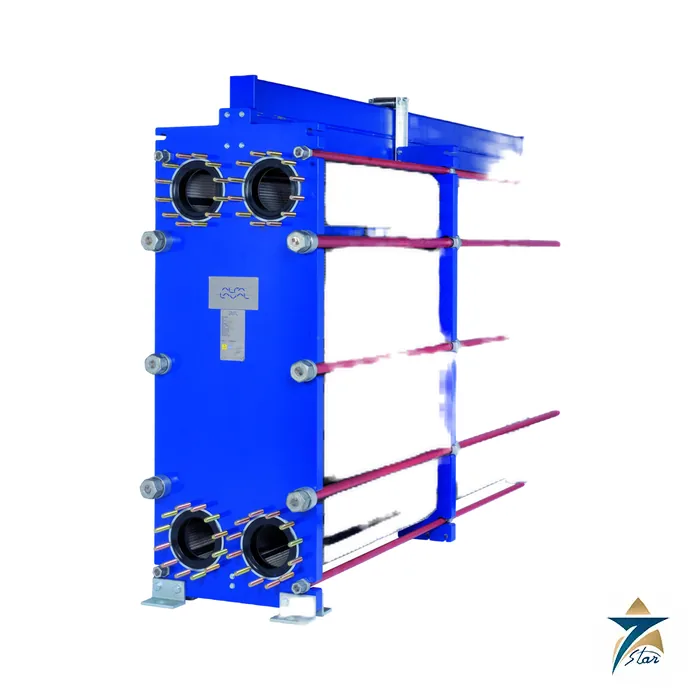

Alfa Laval T20 Gasketed Plate Heat Exchanger
Description
A gasketed plate heat exchanger for process and utility duties up to DN200
The Alfa Laval T20 is a gasketed plate-and-frame heat exchanger from the Alfa Laval Industrial line, offered with a large selection of plate and gasket types so one frame concept can serve many duties. Alfa Laval lists applications from energy and utilities, chemicals, marine, steel, pulp and paper, mining, HVAC and refrigeration to water and wastewater treatment. The plate pack can be opened for inspection and cleaning, and heat transfer area can be changed later by adding or removing plates.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | Gasketed plate and frame heat exchanger, Industrial line |
| Plate types | T20-B (free channel 1.9 mm), T20-P (2.9 mm), T20-M (4.0 mm) |
| Heat transfer plate materials | 304/304L, 316/316L, 254, Alloy 33, C-276, C-2000, Ni, Ti |
| Field gasket materials | NBR, EPDM, FKM, HeatSeal |
| Connections | Carbon steel; metal lined (stainless steel, Alloy C-276, titanium) or rubber lined |
| Port size | DN200 / NPS 8 (EN 1092-1, ASME B16.5, JIS B2220 depending on frame) |
| Frame and pressure plate | Carbon steel, epoxy painted |
| FM frame, pvcALS / PED | 10.0 barg (145 psig) at 180 C (pvcALS) or 120 C (PED) |
| FG frame, pvcALS / ASME / PED | 16.0 barg at 180 C (pvcALS, PED); 10.3 barg at 249 C (ASME) |
| FD frame, ASME | 20.7 barg (300 psig) at 249 C (480 F) |
| FS frame, pvcALS / ASME / PED | 29.5 barg at 200 C; 27.6 barg at 249 C; 30.0 barg at 160 C |
| Frame size (H x W), T20-FM | 2141 x 780 mm (pvcALS); 2146 x 755 mm (PED) |
| Frame size (H x W), T20-FG / T20-FS | 2146 x 780 mm / 2183 x 780 mm |
| Features listed | Five-point alignment, reinforced hanger, chocolate-pattern distribution area, glued or clip-on gasket, offset gasket groove, leak chamber, bearing boxes |
Extended pressure and temperature ratings may be available on request, and not every combination in the leaflet is available in every region, so the exact frame, code and gasket must be confirmed at quotation.
Choosing plate type, frame and gaskets
The three plate types differ in free channel: the B plate (1.9 mm) suits clean, low-viscosity duties, the P plate (2.9 mm) is a mid-range choice and the M plate (4.0 mm) tolerates fibres and larger particles. Gasket material is chosen from the media and temperature; EPDM and NBR cover most water and oil duties while FKM and HeatSeal are for higher temperature or aggressive media. Titanium or 254 plates are the usual route for seawater and chloride-bearing cooling water. The frame code (FM, FG, FD, FS) fixes the design pressure, and the rating differs between pvcALS, ASME and PED approvals, so state the design code of your project.
Related models and family
Alfa Laval publishes sibling leaflets for the TS20 gasketed unit and for the semi-welded T20-W and TK20-W variants. Smaller gasketed frames from the same maker, for example the Alfa Laval M6, cover lower capacities, and further units are listed under cooling equipment.
Documents and quotation
The attached Alfa Laval T20 product leaflet (CHE00078-4-EN-GB) carries the technical data above. Send the duty (fluids, flows, inlet and outlet temperatures, allowable pressure drop, design code and materials) and the quantity for a quotation; thermal sizing is based on those inputs, not on the leaflet alone.
