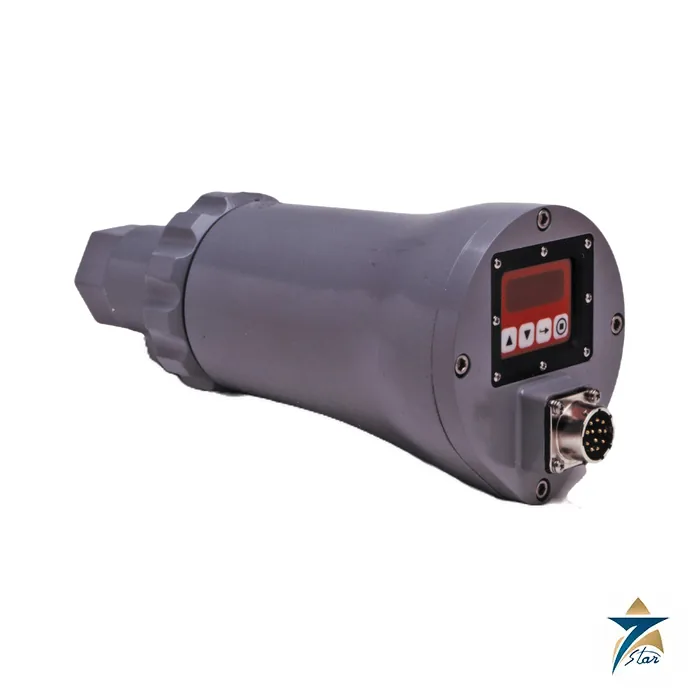

Fireye InSight 95DSS2 UV/IR Integrated Flame Scanner

Name: Fireye InSight 95DSS2 UV/IR Flame Scanner – Datasheet & Quote
Brand: Fireye
SKU: 95DSS2-1

Description

A dual UV and IR flame scanner with AutoTune for multi-fuel and multi-burner plant

The Fireye InSight 95DSS2 is a microprocessor-based integrated flame scanner that combines an ultraviolet and an infrared sensor in one housing, with an internal flame relay that has adjustable ON and OFF thresholds, so no remote flame amplifier is required. Fireye lists the InSight scanners as replacements for the 45FS1 and 45UVFS1 Signature scanners and the 45RM4 for detecting the presence or absence of flame in single or multi-burner applications. The scanner measures the amplitude of the modulations, the flame flicker, within the target flame and selects the modulation frequency that gives the best flame ON/OFF discrimination.

The InSight Type 95 family has IR (95IR), UV (95UV) and dual-sensor (95DS) types, each in two feature levels. The 95DSS2 is the dual-sensor Expanded S2 model, suited to larger multi-burner boilers and furnaces and to multi-fuel firing.

Technical specifications

Parameter	Specification
Type; model	95DSS2 (dual IR and UV sensor, expanded model S2); part numbers 95DSS2-1, -1CG, -1E, -1ECG, with fiber-optic mount versions
Sensors	IR: 700 to 1700 nm (best for coal and oil); UV: 295 to 320 nm (best for gas); dual sensor for multi-fuel
S2 features	21 modulation frequency choices; four programmable setpoint files; AutoTune with manual override; remote communication via Fireye user software
Self-checking	Electronic; no mechanical shutter
Input power	24 Vdc, +10 % / -15 %, supply current 0.35 A, 8.5 VA
Relay outputs	Flame relay SPST N.O.; fault relay SPST N.C.; fault contact wired in series with the flame relay
Contact rating	Min. 10 mA at 5 Vdc; max. 2 A at 30 Vdc; 2 A at 240 Vac (FM, UL and all CG models) or 50 Vac (CE models)
Analog output	4-20 mA dc, 4 mA at signal strength 0 and 20 mA at 100; max. load 750 ohm
Display and keys	Eight-character alphanumeric LED display with scrolling; four pushbutton keys
Electrical connection	12-pin quarter-turn quick-disconnect; CG models: cable gland with 10 ft (3 m) captive cable; CEX models: 3/4 inch opening with internal terminals
Housing	Cast aluminum, grey polyester powder coat; NEMA 4X, IP66; 4.3 lb (1.96 kg), CG 5.9 lb, CEX 6.3 lb
Hazardous area ratings	Class I Div 2 Groups A to D and Class II Div 2 Groups F and G (UL C/US, FM); CE models II 3 G/D Ex nA IIC T6
Functional safety	TUV evaluation as a single device for safety instrumented functions to DIN EN 61511-1 up to SIL2
Temperature; humidity	Ambient -40 to +65 C; scanner internal -40 to 81 C; 0 to 95 % RH non-condensing
Mounting flange (ordered separately)	P/N 60-2692: 1 inch NPT with 3/8 inch NPT cooling air; P/N 60-2693: 1 inch BSP with 3/8 inch BSP
Purge air	4 SCFM (113 l/min), up to 15 SCFM (425 l/min) near the upper limit or with dirty fuels
Cable	P/N 59-497, 12 conductors, shielded; max. 1000 ft (305 m)

Choosing between S1 and S2, and between UV, IR and dual

The Standard S1 model has three modulation frequencies, adjustable gain and thresholds, a 4-20 mA output and two setpoint files, which covers single-burner boilers, furnaces and duct burners. The Expanded S2 adds AutoTune, 21 frequencies, four files and remote communications, which saves commissioning time on multi-burner units. Choose UV for gas, IR for oil and coal, and the dual sensor where the burner fires several fuels. Specify the mounting flange, cable length and whether you need a CG, CE or CEX variant at order.

Sight the scanner so that the primary combustion zone is in its line of sight and use the LED display feedback to align it. Related combustion safety equipment is listed under burners and gas trains and flame detection; compare the LAMTEC FFS08 flame sensor.

Documents and quotation

The attached Fireye bulletin CU-95 (September 2025) covers the InSight Type 95IR, 95UV and 95DS scanners with model listing, approvals, wiring and the programming menus. Send the full part number, fuel, mounting flange, cable and hazardous-area marking for a quotation, and confirm the exact model and approvals before ordering.
