Mason Industries

Mechanical consultants write Mason Industries type letters straight into their vibration isolation schedules. The company, founded in 1958 and based in Hauppauge, USA, makes vibration isolation and seismic control products. Seven Star LLC lists the Mason SLFH free-standing spring mount with bolt-down baseplate and supplies Mason isolators for building services plant in Oman on inquiry.

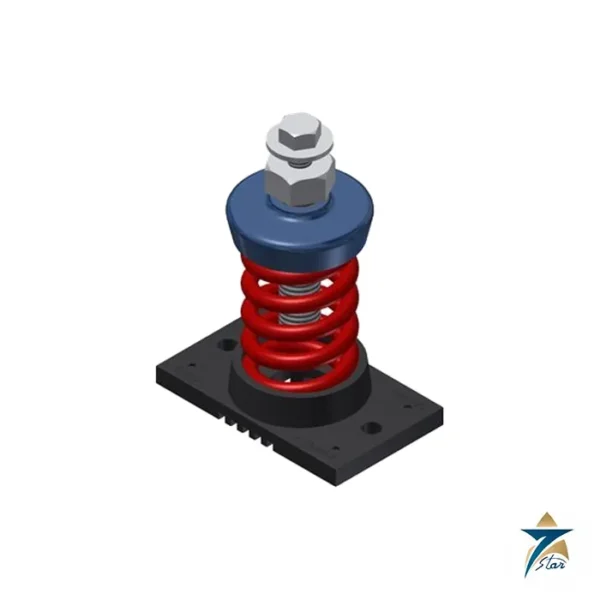

Mason SLFH spring mounts

The SLFH is an unhoused spring mount: the spring is free-standing and laterally stable without a housing. A neoprene cup or a 6 mm neoprene acoustical friction pad sits between the baseplate and the supporting structure, and the leveling bolt is fixed rigidly to the equipment. Mason builds single-spring and multiple-spring versions with 1 inch and 2 inch rated deflection, and higher deflection series. Multiple-spring 1 inch mounts are rated from 2,700 lbs to 38,160 lbs per mount.

Ordering Mason isolators: what we need

Send the full type and size designation from the schedule, the load at each support point, the required static deflection, the equipment type and speed, and the fixing details for the baseplate. Where GCC project specifications ask for submittal data, we provide the manufacturer sheet showing spring diameter, deflection, compressed height and solid height.
