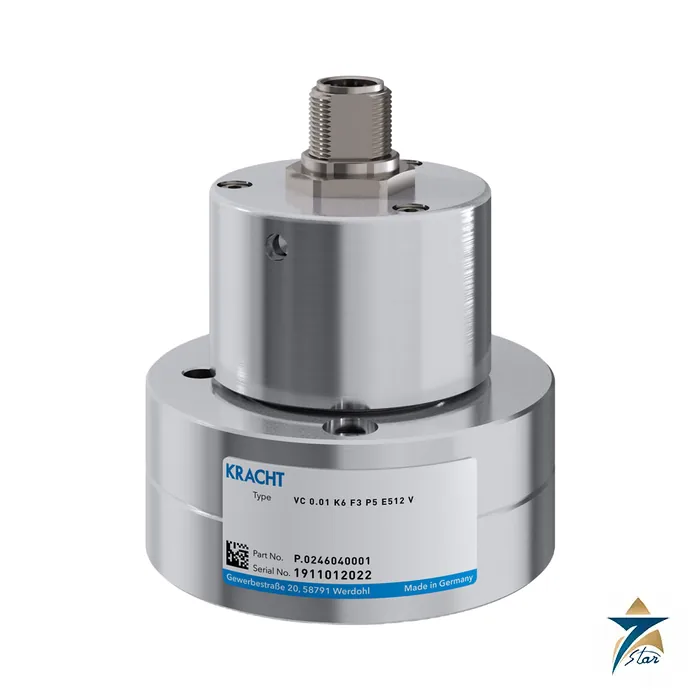

KRACHT VC 0.01 Micro Gear Type Flow Meter
Description
Gear flow meter for micro-dosing and very small volumes
The KRACHT VC 0.01 is the smallest gear type flow meter in the KRACHT VC range. KRACHT describes it as able to measure volume flows from 0.5 ml/min, which makes it suitable for micro-dosing of lubricating fluids, fuel injector test benches and other applications where standard flow meters cannot resolve the flow.
Two high-precision gears form the measuring unit and are driven by the liquid on the displacement principle. The gears run almost contact-free in the measuring chamber and are supported on ball bearings. An encoder scans the gear motion and outputs 512 pulses per revolution, which gives a much finer resolution than a conventional pick-up sensor and lets the electronics detect the direction of flow.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | KRACHT GmbH |
| Model | VC 0.01 (type key example VC 0.01 K6 F3 P5 E512) |
| Measuring range | 0.5 to 500 ml/min |
| Displacement volume | 0.138995 cm³/rev |
| Sensor resolution | 512 pulses/rev (encoder) |
| Theoretical measuring resolution | 3 684 pulses/ml; 14 734 pulses/ml with 4-fold evaluation |
| Repeat accuracy | better than ±0.1 ml/min |
| Viscosity range | 0.8 to 60 mm²/s |
| Maximum working pressure | 120 bar |
| Pressure drop | 7 bar |
| Media temperature | 30 to 100 °C |
| Ambient temperature | -15 to 80 °C |
| Required filter fineness | below 6 μm |
| Materials | Housing stainless steel 1.4404; gears and ball bearings steel; FKM seals |
| Connection | Plate mounting; connection plate with G1/8 side threads |
| Electrical | 5 to 30 V DC; 2 channels, push-pull output; M12x1 4-pin plug; IP65 |
| Protection | Short-circuit and reverse-polarity protected |
The pulse values above are theoretical. KRACHT supplies a test report with each meter, and the exact K-factor in that report should be used for the evaluation unit.
Signal evaluation and flow direction
The pre-amplifier delivers two square-wave channels offset by 90 degrees. In standard evaluation the receiving electronics count one rising edge per cycle on one channel. With 4-fold evaluation all rising and falling edges on both channels are counted, so the resolution rises by a factor of four. Because the phase relation between channel A and channel B reverses when the flow reverses, a suitable counter or PLC input can determine flow direction as well as volume.
Installation and selection notes
The meter can be mounted in any position and measures in either flow direction. The very fine filtration requirement is important: particles larger than the gear clearance can block or damage the measuring unit, so a filter below 6 μm should be fitted upstream. The permissible media are lubricating fluids within the stated operating limits, and KRACHT asks to be consulted in case of doubt.
Note that the media temperature range starts at 30 °C. For larger flows the standard KRACHT VC gear type flow meter covers sizes up to 700 l/min.
Documents and quotation
The attached KRACHT datasheet contains the type key, flow resistance curves, the signal diagram and the dimension drawing. For a quotation, state the full type code or the fluid, viscosity, flow range, pressure and temperature, and whether a matching evaluation unit is required. Other meters are listed under Flowmeters.
