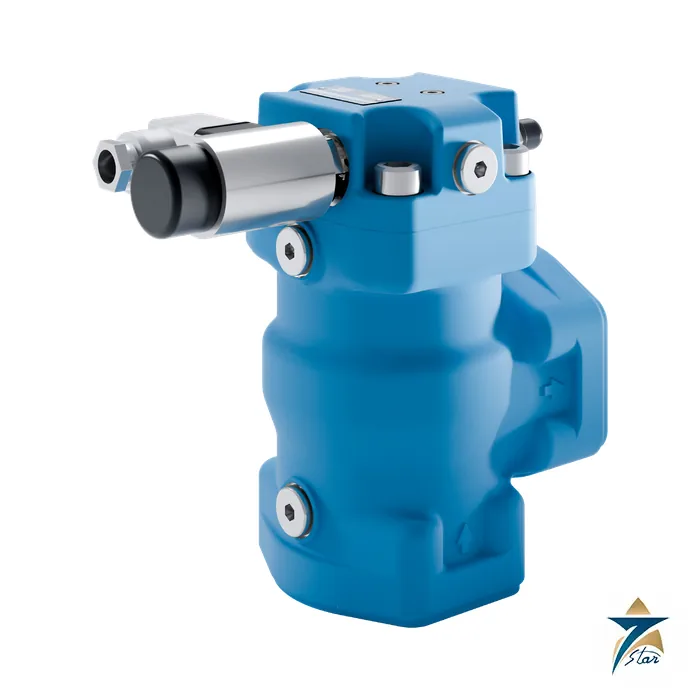

KRACHT DV S Pressure Stage Control Valve
Description
Two-stage pilot-operated pressure valve for clutch and lube oil circuits
The KRACHT DV S pressure stage control valve belongs to the KRACHT DV family of hydraulically pilot-controlled seat valves. Its basic construction is the same as the DV B pressure relief valve, but it carries two pilot control valves connected in parallel, each set to a different pressure, plus an integrated 2/2 directional solenoid valve. Energising or de-energising the solenoid switches the low pressure stage in or out, so the system can run at two defined pressure levels without changing the adjustment.
KRACHT names the clutch control of ship transmissions as a typical application: a low pre-pressure fills the clutch, then the valve switches to the higher clutch pressure.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | KRACHT GmbH |
| Product | DV S pressure stage control valve (DV pressure valve series) |
| Nominal sizes | NS 50 (SAE 2 in) and NS 80 (SAE 3 in) |
| Maximum flow rate | 800 l/min (NS 50); 1800 l/min (NS 80) |
| Nominal pressure | 210 bar (NS 50); 140 bar (NS 80) |
| Pressure stage 030 | 6 to 20, 8 to 22 and 10 to 30 bar |
| Pressure stage 035 | 3 to 10 and 10 to 35 bar |
| Construction | Seat valve, hydraulically pilot operated |
| Hydraulic connection | SAE flange (SAE J518 Code 61 / ISO 6162-1); M, X, Y ports G 1/4 |
| Solenoid valve options | 2/2-way closed or open when de-energised; 4/3-way centre position; 12 V DC, 24 V DC or 230 V 50 Hz |
| Housing / seals | Spheroidal graphite cast iron EN-GJS-400-15 / FKM |
| Media temperature | -20 to 150 °C |
| Ambient temperature | -20 to 60 °C |
| Viscosity | 4 to 1000 mm²/s |
| Oil cleanliness | NAS 1638 class 9; ISO 4406 code 20/18/15 |
| Fluids | Hydraulic fluids to DIN 51524/25, marine fuels to DIN ISO 8217, engine and gear oils, HEES bio-oils |
| Weight (stage 035) | 9.8 kg (NS 50); 21.4 kg (NS 80) |
How the DV range is configured
The same main valve is used for three functions. The DV B is the plain pressure relief valve, the DV R is a pressure control valve with an external control-oil tap for lube oil circuits, and the DV S adds the second pilot and the solenoid valve. KRACHT states that the DV valves are dimensionally interchangeable with its SPV and HV valves, which helps when an older valve is replaced. An example code built from the type key is DV S 50 S 2 F 1 S 035 S 1 C 2, where the positions define size, sealing, connection with internal or external drain, pressure stage, solenoid function and voltage.
Control oil can be drained internally or externally through port Y. Counter-pressure in the tank or drain line adds to the set pressure, so the drain arrangement should be checked when the valve is sized.
Selection and installation
Select NS 50 or NS 80 from the maximum flow and check the pressure drop against the curves in the datasheet. The valve can be mounted in any position. Keep the oil within the stated cleanliness class, because pilot stages are sensitive to contamination. For a single-pressure application the KRACHT DV B pressure relief valve is the simpler choice.
Documents and quotation
The attached KRACHT datasheet covers DV B, DV R and DV S with function descriptions, circuit symbols, type key, curves and dimensions. Send the full type code, or the flow, the two required pressures, solenoid voltage and drain arrangement, for a quotation. More hydraulic valves are listed under Hydraulic Valves and Components.
