Hydac MF and MFD Spin-On Filter, up to 300 l/min and 8 bar

Spin-on filtration for return, suction and low-pressure lines

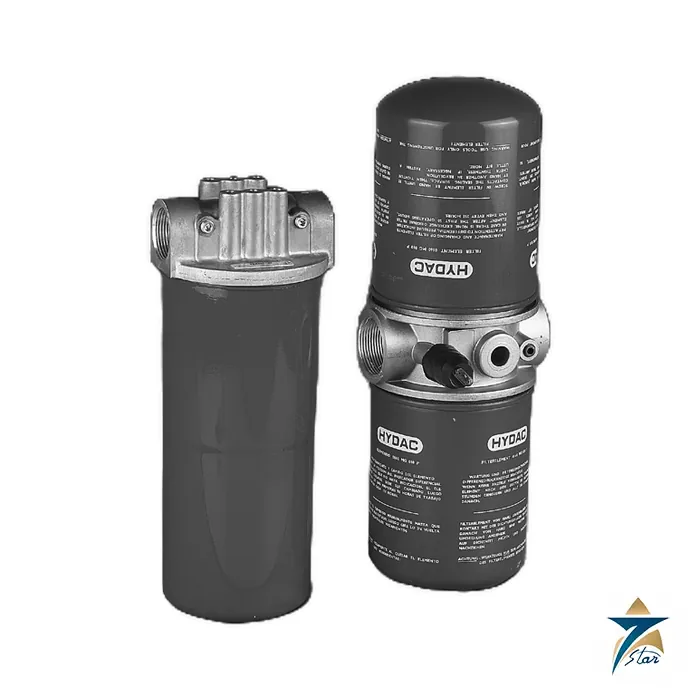

The Hydac MF is a spin-on filter: an aluminium head with a built-in bypass valve and a screw-on sheet steel cartridge. Changing the filter means unscrewing the old cartridge and fitting a new one, with no housing to open and no loose element to handle. The MFD version carries two cartridges on one head for higher flow.

Sizes MF 80, MF 160 and MF 180 are listed, plus MFD 160 and MFD 180, for flows up to 300 l/min at 8 bar. Where the clogging indicator is screwed in decides whether the unit works as a return line, suction or pressure filter.

Technical specifications

Order code and how the indicator position sets the duty

The code in the datasheet is MF BN 160 A U E 10 F 1 .X /-KB: series, media, size, pressure letter A (8 bar), cartridge connection (G or U), port letter, micron rating, indicator letter (A plug, E gauge, F switch, UE vacuum gauge, UF vacuum switch) and a type code from 0 to 8 that describes where the indicator sits. Supplementary details give a bypass pressure (B0.2 for 0.2 bar) or omit the bypass (KB, sizes 160 and 180 only).

Type code 1 and 2 put the indicator on the inlet side for a return line filter. Codes 3 and 4 put it on the outlet side with a vacuum indicator, for a suction filter; those are only for versions with a 0.2 bar bypass or without bypass. Codes 5 and 6 fit both ports for a pressure filter, and 7 and 8 use both sides of the head. MFD has a shorter list (0, 1, 3 and 5).

Cartridges and changing them

Replacement cartridges are coded by size and thread, such as 0160 MA 010 BN. MG cartridges fit filters with the ISO 228 thread and are paper only, apart from the 20 µm BN cartridge for MF 80. MA cartridges fit the UN thread and seal on the outside. The datasheet also notes the inside sealing of the 0080 MA cartridge, so match the cartridge to the head, not only to the size.

Compatible fluids are hydraulic oils to DIN 51524, lubrication oils, compressor oils, biodegradable HETG, HEES and HEPG, and fire-resistant HFA to HFD, with high-water-content fluids on request. Give us the head code and the cartridge code on the old filter when you ask for a quotation.

Where the clogging indicator is fitted decides the duty. For the MF type codes in the datasheet:

Where the Hydac MF is used

• Return lines of hydraulic systems
• Suction lines
• Low-pressure lines
• Lube oil circuits
• Mobile and industrial hydraulics

Selection checklist for the Hydac MF

• Flow rate
• Size, MF 80, 160 or 180
• One cartridge or two, MF or MFD
• Filtration rating in micron
• Bypass cracking pressure
• Port thread
• Clogging indicator type
• Line duty, return, suction or pressure

Installation, commissioning and maintenance notes for the Hydac MF

Fit the head in the line with the flow in the marked direction. Screw in the indicator at the position that matches the duty. Screw on the cartridge by hand and check for leaks. Replace the cartridge when the indicator shows it is clogged. Dispose of the used cartridge with its oil.

Requesting a quotation for the Hydac MF

Please send the flow rate, the filtration rating, the port thread and the indicator type. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

MF spin-on design

The MF is a spin-on filter with an aluminium head.

MF cartridge change

You change the filter by unscrewing the old cartridge and fitting a new one.

MF bypass valve

The head has a built-in bypass valve.

MF size range

The sizes are MF 80, MF 160 and MF 180.

MF two-cartridge version

The MFD version carries two cartridges on one head.

MF maximum flow

The flow is up to 300 l/min.

MF nominal pressure

The nominal pressure is 8 bar.

MF temperature range

The temperature range is minus 30 to plus 100 degrees C.

MF cartridge media

Media include Betamicron in 3, 5, 10 and 20 micron, and paper in 10 micron.

MF bypass pressure

The standard bypass cracking pressure is 1.7 or 2 bar.

MF clogging indicators

Indicators include a pressure gauge, a pressure switch, a vacuum gauge and a vacuum switch.

MF cartridge material

The cartridge case is sheet steel.

MF port connections

The ports are G3/4, G1 1/4 or G1 1/2.

Filter records for the MF

Record the indicator reading, the cartridge change date and the oil condition.

Choosing the right MF indicator

Choose the indicator type from where the filter sits in the circuit.

Documents and quotation

The datasheet (E 7.301.18/11.16) is attached. Related: filter housings and the Hydac RFM return line filter.
