Woodward 505 Digital Control for Steam Turbines
Overview
The Woodward 505 is a field-configurable digital controller built to start, stop, control and protect industrial steam turbines and turbo-expanders of every size. It drives generators, compressors, pumps and industrial fans, and it replaces a stack of separate speed governors, sequencers, annunciators and operator panels with a single panel-mounted unit. The controller senses turbine speed from passive or active speed probes and positions one or two split-range actuators on the turbine inlet steam valves.
For plant engineers in Oman and the wider GCC, the Woodward 505 addresses a familiar problem: aging mechanical or analog governors on mechanical-drive and cogeneration turbines that are hard to tune and harder to support. Seven Star LLC supplies the Woodward 505 with engineering support in Muscat, so refinery, petrochemical, power and water projects can plan retrofits against a lead time confirmed at quotation. The same hardware also fits alongside newer platforms such as the Siemens SGT-300 industrial gas turbine in mixed-prime-mover plants.
Control Principle of the Woodward 505
At its core the Woodward 505 uses a unique PID-to-PID structure. A speed and load PID with several dynamic settings and an adaptive mode runs alongside a cascade PID for header pressure or tie-line control, two auxiliary PIDs that can act as limiters or controllers, plus inlet header, exhaust header and rotor acceleration PIDs. Because every loop shares one selection logic, the control transfers between modes without a step in valve position, which keeps plant parameters from overshooting during upsets.
Protection logic runs in parallel with control. The Woodward 505 provides integral overspeed protection with test capability, overspeed anticipation, three critical speed avoidance bands, configurable under or over-pressure shutdown logic, and minimum and maximum speed and load settings. A first-out indicator records fifteen individual shutdown inputs and fifteen alarm inputs, so operators can see which condition tripped the turbine first instead of reading through a flood of secondary alarms.
Engineering Design of the Woodward 505

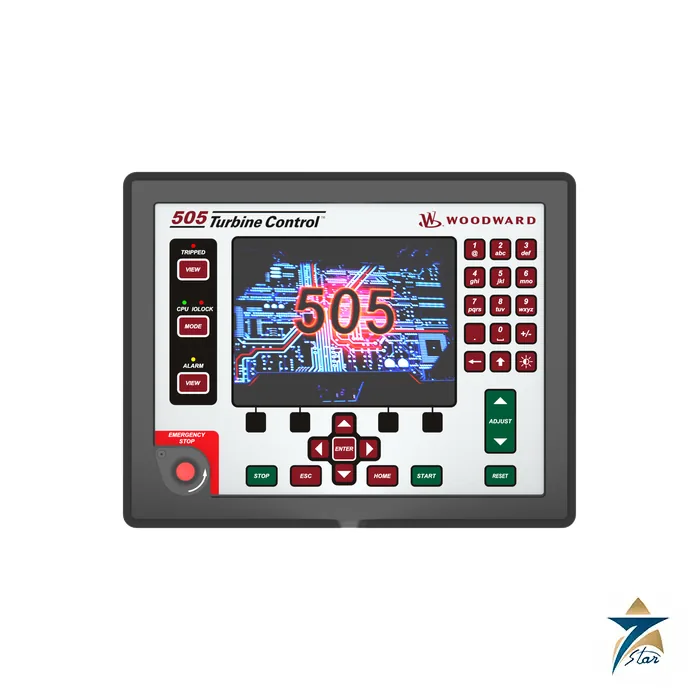

The controller is packaged in an industrial hardened enclosure for mounting in a control room panel or beside the turbine. Its front panel is both programming station and operator control panel, using an 8.4-inch (21 cm) graphical display that shows actual and setpoint values together. Wiring lands on the lower back panel through un-pluggable terminal blocks, which simplifies installation, troubleshooting and module replacement. Low-voltage models accept 18 to 36 Vdc, while high-voltage models accept 88 to 264 Vac or 90 to 150 Vdc.
Engineers configure the Woodward 505 on site through a menu format protected by passwords, and the unit runs a configuration check to catch basic setup mistakes before the turbine is started. Optional RemoteView software turns a computer or touch panel into a remote operator station and engineering workstation, while Control Assistant and AppManager support trend viewing, configuration upload and download, and datalog retrieval. A real-time clock can be synchronized over SNTP to the plant control system.
Key Features
The following capabilities make the Woodward 505 a practical choice for turbine control upgrades:
- Four PID controllers (speed, cascade, auxiliary 1 and auxiliary 2) that users configure themselves without special control engineering support.
- Multiple start-up routines covering manual, semi-automatic, automatic and remote control, including hot and cold start sequences.
- Three critical speed avoidance bands and stuck-in-critical-band logic to protect rotors during run-up.
- Integrated trip and alarm event recorder, turbine run-time logs and real-time trend screens on the front panel.
- Four Ethernet ports using Modbus TCP or OPC protocols, plus one serial Modbus port that supports RS-232 or RS-485 with ASCII or RTU.
- Four CAN ports using Woodward CANopen for high-speed digital communication to Woodward actuators and power management products.
- Multi-lingual display in English, Chinese, Portuguese, Japanese and Spanish.
- Sulfur-resistant conformal coating and the same form, fit and function as previous 505 versions for simple replacement.
Industrial Applications
Steam turbines remain the workhorse of process industries across the Sultanate of Oman, from mechanical-drive turbines on compressors and pumps in oil and gas facilities to back-pressure and extraction units in refineries, fertilizer plants and cogeneration systems. The Woodward 505 controls speed, load, inlet header pressure, exhaust header pressure and tie-line power, so it suits both stand-alone drives and turbines that must share load with other generators through DSLC-II isochronous load sharing.
Industrial zones at Sohar and Salalah, as well as desalination and power complexes along the Batinah coast, depend on dependable turbine control to keep utilities available. Seven Star LLC supplies the Woodward 505 together with related controls, valves and monitoring equipment, including the Woodward TecJet 50 Plus gas fuel control valve and the Bently Nevada 3500/33 relay output module used in protection chains, so one supplier can coordinate documentation and delivery for the complete turbine package.
Technical Specifications
The table below summarizes the principal data published by the manufacturer for the Woodward 505 control. Confirm the exact part number, voltage option and certifications against the datasheet before ordering.
| Parameter | Specification |
|---|---|
| Model | Woodward 505 Digital Control for Steam Turbines |
| Supply voltage | LV: 18–36 Vdc; HV: 88–264 Vac and 90–150 Vdc |
| Speed inputs | 2 passive MPUs or 2 active proximity probes, 0.5–35,000 Hz |
| Discrete inputs | 20 configurable contact inputs |
| Analog inputs | 8 configurable 4–20 mA inputs |
| Actuator outputs | 2 outputs, 4–20 mA or 20–200 mA |
| Relay outputs | 8 configurable relays, 24 Vdc at 5 A |
| Analog outputs | 6 programmable 4–20 mA outputs |
| Communications | 4 Ethernet ports (Modbus TCP or OPC), 1 serial Modbus port, 4 CAN ports |
| Display | 8.4-inch (21 cm) graphical operator control panel |
| Ambient temperature | −30 to +70 °C |
| Hazardous locations | ATEX Zone 2 Cat. 3, IECEx Ex ic nA IIC T4 Gc, CSA Class I Div 2 (low-voltage models) |
| Marine approvals | Lloyd’s Register ENV1, ENV2, ENV3; DNV-GL |
Request a Quote for Woodward 505
To request pricing, lead time or a compatibility review for the Woodward 505, send a formal RFQ to the Seven Star LLC instrumentation team in Muscat. We can confirm part numbers against your turbine and actuator list, arrange shipping to Oman and the GCC, and provide the manufacturer’s Woodward 505 datasheet with your quotation so your engineers can review wiring, certifications and dimensions before purchase.
- Datasheet Woodward 505 Datasheet Download
Woodward products listed
Three items show the spread of the industrial line. The 505XT is a digital control for industrial steam turbines with a single valve or single extraction/admission. The SPM-D10 is a synchronizing unit that matches a generator to a bus before the breaker closes. The TecJet 50 Plus is a gas fuel control valve with built-in actuator and electronics, used to meter fuel on gas engines. Searches for Woodward gas valves or governor control systems usually lead to these families.Ordering Woodward parts: what we need
Woodward identifies hardware by a part number in two digit groups, such as 8440-1667 for one SPM-D10 version, printed on the nameplate with a revision letter and serial number. Send all three. For a 505XT, add the supply voltage version and whether the turbine has extraction or admission. For a synchronizer, give the measuring voltage and the exact SPM-D10 variant. For a TecJet, state the fuel gas, flow size and engine control signal.Browse Woodward products by category: Control Valves, Controllers & Data Acquisition.
