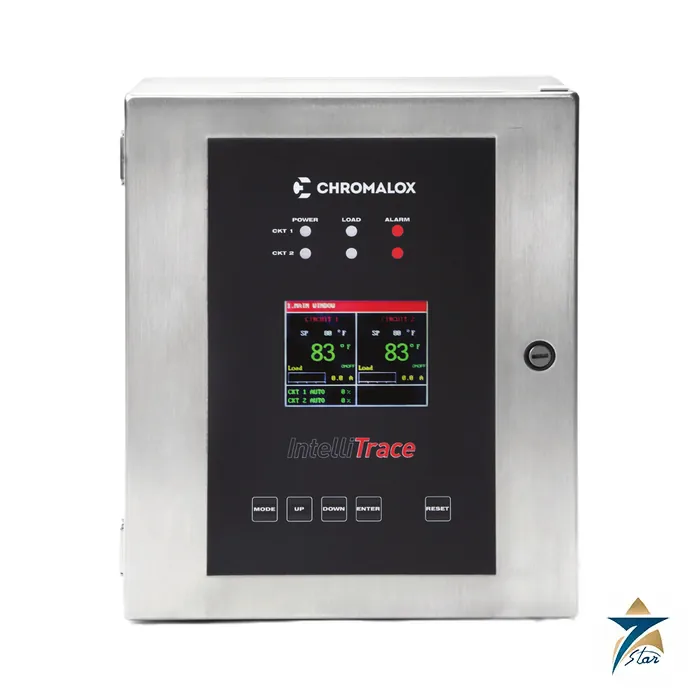

Chromalox ITC1 / ITC2 Digital Heat Trace Controller

Name: Chromalox ITC1/ITC2 Heat Trace Controller – Datasheet & Quote
Brand: Chromalox
SKU: ITC1/ITC2

Description

Digital heat trace controller for one or two circuits

The Chromalox ITC1 / ITC2 intelliTRACE controllers switch heat trace circuits for freeze protection and process temperature maintenance. The ITC1 handles one circuit and the ITC2 handles two independently controlled and monitored circuits, each rated 40 A through solid-state relay power control at 100 to 277 VAC. They work with constant wattage, mineral-insulated or self-regulating heating cables and are intended for industrial locations that are non-hazardous or Class I, Division 2.

A soft start routine removes the in-rush current of self-regulating cable, which reduces nuisance breaker trips at cold start. The controller can also be used on non-heat-trace loads because the soft start is selectable. If a sensor fails, the output moves to a user-set duty cycle and bumpless transfer avoids abrupt current spikes when switching between manual and auto.

Technical specifications

Parameter	Specification
Series	intelliTRACE ITC digital heat trace controller, 1 or 2 circuits
Application	Line or ambient sensing heat trace: freeze protection and process temperature control with constant wattage, mineral-insulated or self-regulating cables
Supply and load	100…277 VAC, 50/60 Hz; SSR power switching, 40 A per circuit
Sensors	3-wire RTD, 100 Ω platinum, 0.00385; 1 or 2 per circuit (low, high, average) or one RTD controlling both circuits; 20 Ω balanced lead wire
Control modes	Auto (PID or ON/OFF), Manual (1…100 % output) or Off; selectable soft start and current clamping
PID ranges	Proportional band 1…100 deg F; integral 0…9,999 s/repeat; derivative 0…500 s; dead band 2…100 deg F
Temperature range	-80 deg F to +1100 deg F (-62 °C to +593 °C)
Alarms	Low and high temperature, low and high current (0.1…50.0 A), high GFEP (30…150 mA), sensor failure; alarm modes alarm only, alarm and trip, alarm and latch, alarm, trip and latch
Alarm relays	1 DC output 1.8 A, 0…50 VDC; 1 AC output 1.8 A, 12…240 VAC
Sensor failure action	Programmable 0…100 % output or bumpless transfer to manual mode
Display and HMI	3.5 in 320 × 240 RGB colour TFT, five capacitive touch buttons, power/load/alarm LEDs per circuit, three password levels
Communications	Modbus RTU/RS-485 (2 or 4 wire) and RS422; Modbus TCP/Ethernet optional
Enclosure	NEMA 4X fiberglass (about 10 × 8 × 8 in) or optional NEMA 4X 316 stainless steel (about 12 × 10 × 8 in); IEC IP66; stainless wall brackets supplied
Operating ambient	-40 deg F to 104 deg F (-40 °C to 40 °C)
Approvals	UL/cUL ordinary locations and Class I, Division 2, Groups A, B, C, D hazardous locations (UL file E347725); CE
Manufacturer Warranty	Standard 1 year, as printed

Ground fault protection and monitoring

Besides temperature and current, the ITC measures ground-fault leakage current (GFEP) and raises alarms for high and low temperature, high and low current, high GFEP and sensor failure. For 1-pole voltages (120 V and 277 V) the controller has an integral GFEP, while for 2-pole voltages (208 V and 240 V) the datasheet states that a two-pole GFEP breaker is required upstream. Chromalox notes that the requirement is waived in industrial establishments where qualified personnel maintain the system and ground-fault alarm indication is provided; the project engineer should confirm which applies.

Ordering the ITC

The model number is built as ITC plus circuits, communications, enclosure and a final zero, for example ITC2-000. Circuits: 1 or 2. Communications: 0 is Modbus RTU/RS485 (and RS422), 1 is Modbus TCP/Ethernet and 9 is other. Enclosure: 0 is NEMA 4X fiberglass and 1 is NEMA 4X 316 stainless steel. The stock list in the sheet shows ITC1-000, ITC2-000, ITC1-010, ITC2-010, ITC1-100, ITC2-100, ITC1-110 and ITC2-110, covering fiberglass or stainless enclosure with RS485 or Ethernet. Each unit includes one set of 16-gauge stainless steel mounting brackets.

Before ordering confirm the heating cable type and maximum circuit current, the supply voltage and pole count, whether line sensing, ambient sensing or both are needed, the enclosure material for the site and the plant network protocol. Related instrumentation is listed under controllers and data acquisition.

Documents and quotation

The Chromalox ITC1/ITC2 model sheet is attached for this page. Seven Star LLC, an independent supplier in Muscat, prepares quotations from the full model number; stock and lead time are confirmed at quotation.
