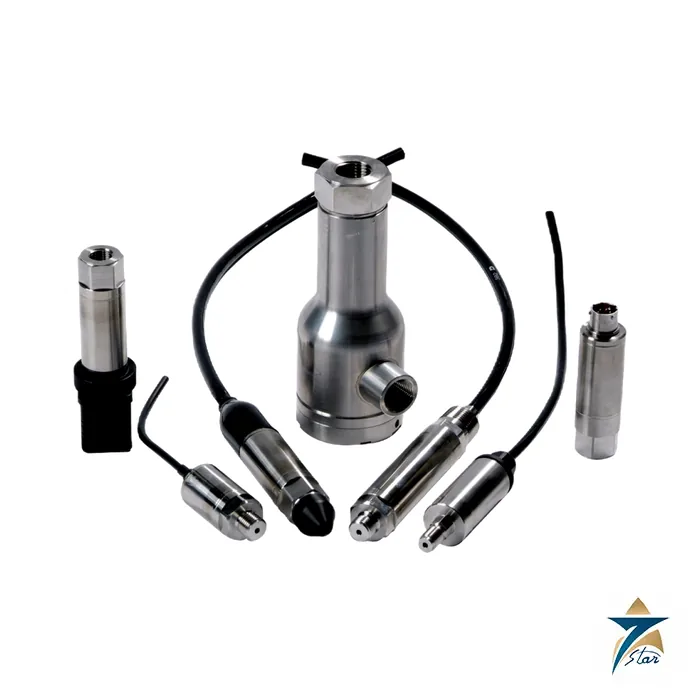

Druck UNIK 5000 Pressure Sensing Platform

Overview

Druck UNIK 5000 is a configurable, high-performance pressure sensing platform from Druck, a Baker Hughes business, built around advanced micromachined silicon technology and analogue signal conditioning. Rather than a single fixed model, the UNIK 5000 is a build-to-order sensor architecture spanning pressure ranges from 70 mbar (1 psi) up to 700 bar (10,000 psi), with over 200 million possible configuration combinations across pressure connectors, electrical connectors, outputs, accuracy grades and hazardous area approvals. This flexibility makes it the platform of choice for OEMs and system integrators who need one qualified sensor family to cover gauge, sealed gauge, absolute, wet/dry differential and wet/wet differential measurement without re-qualifying a new device for every application.

As the official authorized partner and exclusive regional representative for Druck, Seven Star LLC proudly supplies the Druck UNIK 5000 pressure sensing platform to industrial and process engineering teams across Oman and the wider GCC. Facility engineers and OEM panel builders in Muscat, Sohar and Salalah rely on Seven Star LLC to configure and deliver the exact UNIK 5000 variant – accuracy grade, connector, output and certification – required for their application, backed by manufacturer warranty and local technical support.

Measurement Principle

At the core of every Druck UNIK 5000 sensor is a micromachined silicon piezoresistive sensing element. Applied pressure deflects a thin silicon diaphragm, straining an integrated Wheatstone bridge whose resistive elements are diffused directly into the silicon crystal. This strain unbalances the bridge and produces an output voltage proportional to the applied pressure, with the silicon geometry precisely controlled during manufacture to deliver highly repeatable, linear behaviour across the full working range. Because the sensing element and its temperature-compensation circuitry are integrated on the same silicon and stainless steel assembly, the UNIK 5000 achieves accuracy to ±0.04% full scale best straight line in its Premium grade and a frequency response up to 3.5 kHz – performance normally associated with far more complex transducer designs.

Signal conditioning electronics downstream of the bridge convert the raw millivolt signal into the selected output – 4 to 20 mA, mV, or a configurable voltage output – while compensating for temperature effects across one of four selectable temperature bands up to –40 to +125°C. The practical consequence for the design engineer is a sensor with no moving parts to wear, no orifice to clog, and stable long-term performance of ±0.05% FS typical drift per year, which keeps recalibration intervals long and total cost of ownership low for continuous industrial duty.

Engineering Design of the Druck UNIK 5000

The Druck UNIK 5000 is built from a 316L stainless steel and Hastelloy C276 wetted assembly, giving it broad chemical compatibility with process fluids across oil and gas, water injection, HVAC and industrial gas duty. The 25 mm diameter body is available in low/medium and high pressure mechanical constructions, with a comprehensive choice of pressure connectors – G1/4, 1/4 NPT, 7/16-20 UNF, VCR, Swagelok and NW16 flange among more than thirty options – so the sensor can be threaded directly into an existing process fitting without an adaptor.

Electrical termination is equally configurable: cable gland, MIL-C-26482 bayonet, DIN 43650, M12 x 1 four-pin, and demountable connector options are all available, several with on-site zero and span trim via non-interacting potentiometers. Hazardous area variants carry ATEX, IECEx, FM and CSA intrinsically safe approvals for Zone 0/1 installation, and the sensor is rated for operating temperatures from –55 to +125°C, so the same physical platform serves a heated desalination skid and an outdoor GCC summer installation without a design change.

Key Features

The Druck UNIK 5000 pressure sensing platform combines configurability with proven silicon sensor performance, giving engineers a single qualified Druck UNIK 5000 device family for almost any pressure measurement task. Every Druck UNIK 5000 build shares the same core feature set:

• Configurable pressure ranges from 70 mbar (1 psi) up to 700 bar (10,000 psi), covering gauge, sealed gauge, absolute and differential measurement types.
• Accuracy to ±0.04% full scale, best straight line, in the Premium performance grade, with Industrial and Improved grades available for less demanding duty.
• Frequency response up to 3.5 kHz, suitable for dynamic pressure monitoring as well as static process measurement.
• 316L stainless steel and Hastelloy C276 wetted materials for broad compatibility with process and hydraulic fluids.
• Operating temperature range of –55 to +125°C across four selectable compensated temperature bands.
• ATEX, IECEx, FM and CSA intrinsically safe hazardous area certifications available for Zone 0/1 installations.
• More than thirty pressure connector options and multiple electrical connector types, eliminating the need for third-party adaptors.
• mV, mA, voltage and fully configurable voltage output options to match existing PLC, SCADA or OEM control system inputs.

Industrial Applications

The Druck UNIK 5000 is widely specified wherever a single pressure sensing platform must serve multiple duties across a facility. In upstream and midstream oil and gas installations it is used for wellhead pressure monitoring, hydraulic power unit feedback, and pipeline pressure surveillance, while in power generation it instruments boiler feedwater, steam and lubrication systems. Its differential pressure variants are used for level measurement in tanks and vessels, and its compact, configurable form factor makes it a preferred choice for OEM skid builders assembling compressor packages, hydraulic test rigs and marine equipment for classification-society approval.

As the officially authorized partner for Druck, Seven Star LLC distributes the UNIK 5000 to refineries, desalination plants, district cooling operators and OEM panel builders throughout Oman and the GCC, including facilities in the Sohar and Salalah industrial and free zones. Local stockholding and configuration support mean that engineering teams in Muscat and across the Sultanate of Oman can specify the exact UNIK 5000 build for their project without the lead time of ordering directly from Europe, while Seven Star LLC’s technical team assists with connector, output and hazardous area selection to match GCC project specifications.

Technical Specifications

The Druck UNIK 5000 table below summarizes the core specifications of this configurable pressure sensing platform; a full configuration matrix for the Druck UNIK 5000 is available on request.
