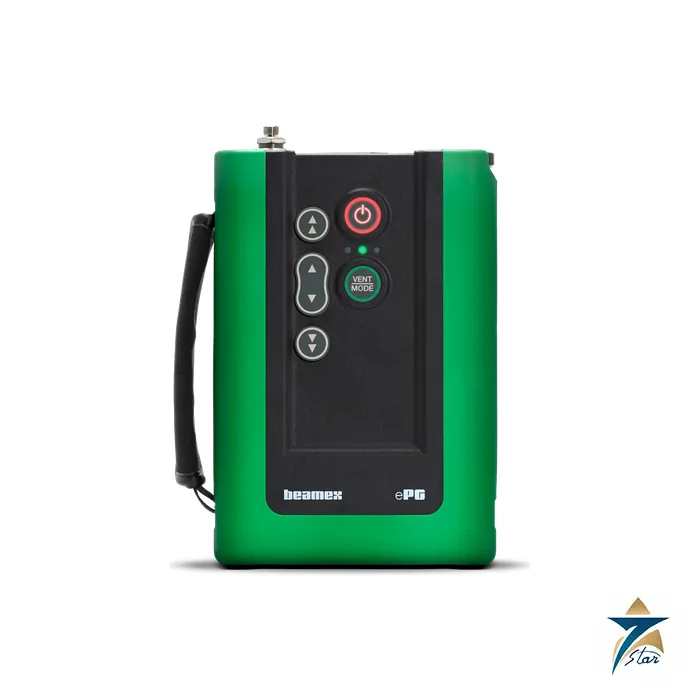

Beamex ePG Electric Pressure Pump and Controller

Overview

Beamex ePG is a portable, battery-operated electric pressure pump and controller for industrial pressure calibration. It generates pressure and vacuum from −0.85 bar (−12.4 psi) up to 20 bar (300 psi), replacing the manual hand pump that technicians have traditionally used to stroke a transmitter. Using the backlit coarse and fine adjustment buttons, the user simply raises or lowers the pressure to the required test point. The result is a faster, more repeatable calibration with far less physical effort, especially on instruments that need many test points or that are installed in awkward positions.

Seven Star LLC supplies the Beamex ePG on request to instrumentation, calibration and maintenance teams in Oman and the GCC, with engineering support in Muscat. The pump works with any pressure calibrator, so a plant that already owns calibrators such as the Druck DPI 620G Genii advanced modular multifunction calibrator can add the Beamex ePG simply by replacing its hand pump, without changing its reference instrument or its procedures.

Pressure Generation Principle

The Beamex ePG contains an electrically driven pump that can work in both directions, creating positive pressure or vacuum at a single G1/8 inch port. The operator selects the target with coarse and fine adjustment buttons, and the controller lets the pressure be set with an adjustability of better than 10 mbar (0.15 psi) across the whole range. Because the pump does the work, a calibration does not depend on the technician’s grip strength or technique, and the pressure can be raised, held and lowered in controlled steps.

Generation time is specified for a connected volume of up to 20 ml: less than 110 seconds to reach 20 bar from zero, and less than 45 seconds to reach −0.85 bar. A 36 micron filter element sits in the pressure port to protect the pump from particles, and the pressure medium must be clean, dry, non-corrosive gas. The ePG generates pressure only; the reading is taken by the reference calibrator or pressure module connected on the same line, which keeps measurement uncertainty entirely with the reference instrument.

Engineering Design of the Beamex ePG

The Beamex ePG is built for use in the field. It measures 231 x 157 x 62 mm without the removable connector, weighs about 2.3 kg, and is water and dust resistant. It can be held and operated with one hand, and a shoulder strap allows the pump to be carried or hung from a rail while the technician works. The body of the pump is made from aluminium, brass, stainless steel and thermoplastic polyester, and food-grade oil is used in the pump mechanism.

Power comes from a field-replaceable 14.4 V lithium-ion battery pack with a status indication and a USB-C connector, charged by a USB Type-C Power Delivery charger. The pack can be charged inside the pump or separately, so a spare battery can keep a long calibration shift running. Common maintenance tasks can be performed by the user, so the pump does not have to travel to the manufacturer for routine service, and the user can keep calibrating with the existing calibrator while the pump is serviced. The standard delivery includes a USB communication cable, charger, pressure T-hose and fittings, and a hard case.

Key Features

The Beamex ePG makes pressure calibration quicker and less tiring:

• Pressure and vacuum range from −0.85 to 20 bar (−12.4 to 300 psi) covers most low and medium pressure industrial transmitters and gauges.
• Backlit coarse and fine adjustment buttons let the user set the required pressure quickly and precisely, with setpoint adjustability below 10 mbar.
• Compatible with any pressure calibrator, so existing reference instruments and procedures stay in use when the hand pump is replaced.
• Fast generation, under 110 seconds to 20 bar and under 45 seconds to full vacuum, shortens the time for each calibration run.
• Field-replaceable lithium-ion battery with a status check and USB-C charging gives long operating time and flexible charging.
• Water and dust resistant, one-hand operation and a shoulder strap suit field work on towers, skids and pipe racks.
• User-serviceable design avoids downtime, because common maintenance does not require sending the pump away.
• Forms a fully automatic documenting pressure calibration system together with the Beamex MC6 family of calibrators.

Industrial Applications

The Beamex ePG is aimed at all industrial pressure calibration: pressure transmitters, analogue and digital pressure indicators, pressure switches, pressure sensors and pneumatic transmitters. The manufacturer names service, power and energy, chemical, pharmaceutical, food and beverage, water and wastewater, pulp and paper, automotive and oil and gas as industries that benefit. In the Gulf this includes gas plants, refineries, desalination and power stations, where a technician may have dozens of transmitters to verify during a shutdown.

Seven Star LLC helps teams in Sohar, Duqm, Salalah and Muscat match the pump to their calibration programme. The ePG is a natural upgrade for a technician using a squeeze-bulb or hand pump, such as with the Taylor 44S390 squeeze bulb pressure calibrator, and it brings automation when combined with the Beamex MC6 advanced field calibrator. Ask Seven Star LLC for the Beamex ePG datasheet to confirm connection hoses, adapters and accessories for your pressure range before ordering.

Technical Specifications

Key figures for the Beamex ePG are listed below from the manufacturer brochure. Generation time applies to a connected volume of up to 20 ml.

Request a Quote for Beamex ePG

To request a quotation for the Beamex ePG, tell Seven Star LLC which calibrator you use, the pressure range of your instruments and the hoses and adapters you need. We supply the Beamex ePG on request with engineering support in Muscat and can send the Beamex ePG datasheet to instrumentation and procurement teams across Oman and the GCC.
