CMP E1FX Explosive Atmosphere Cable Gland for Braided Cable

Name: CMP E1FX Explosive Atmosphere Cable Gland – Datasheet
Brand: CMP Products
SKU: E1FX

Description

An explosive-atmosphere cable gland for braided and steel tape armoured cables

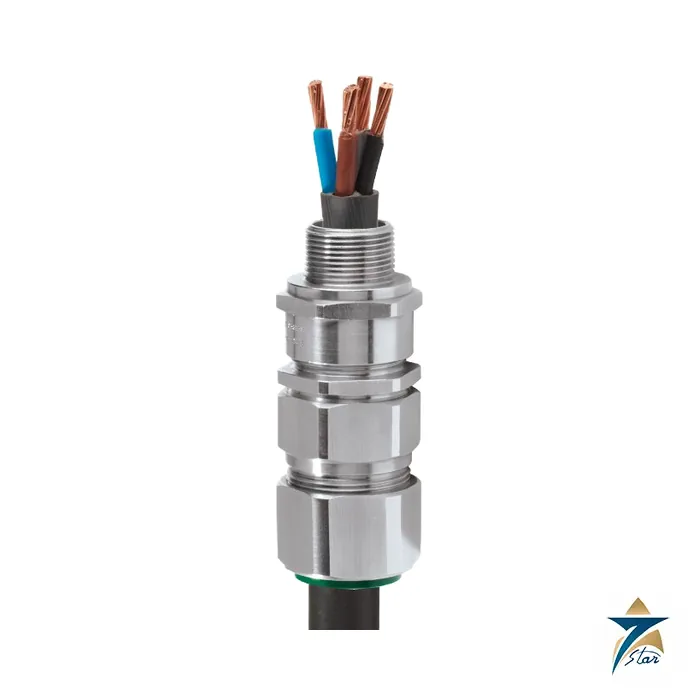

The CMP E1FX is an internationally approved explosive atmosphere cable gland for braided and steel tape armoured cables. It uses metal-to-metal armour clamping with a detachable armour cone and the AnyWay universal clamping ring, a displacement-type flameproof inner seal and a controlled outer load retention seal. CMP states that the design reduces the effects of cold flow, includes an overtightening prevention feature, and gives superior EMC performance. Operating temperature is -60 to +130 degC, and it is globally marked cCSAus, IECEx, ATEX and UKEX.

The grooved cone (X) in the E1FX suits wire braid, steel tape armour and aluminium strip armour, and also single wire, aluminium wire and pliable wire armour when the cable range is outside that of the stepped cone (W) gland such as the CMP PX2K.

Technical specifications

Parameter	Specification
Cable types	Screened flexible (EMC) wire braid (CY/SY), pliable wire armour (PWA), steel tape armour (STA), wire braid armour (SWB), aluminium strip armour (ASA), armoured and jacketed
Design specification	BS 6121 Part 1:1989, IEC 62444, EN 62444
Certificates	ATEX CML18ATEX1324X and CML18ATEX4316X; IECEx CML 18.0181X; UKEX CML 21UKEX1252X and CML 21UKEX4253X; cCSAus 1310517; EAC RU C-GB.AD07.B.02515/20; ECAS and others as listed in the datasheet
Code of protection	II 2G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da; II 3G Ex nR IIC Gc; I M2 Ex db I Mb, Ex eb I Mb
Mechanical classification	Impact level 8; cable anchorage type B
Enclosure protection	IK10 to IEC 62262 (20 joules), brass and stainless steel only
Electrical classification	Category B (Category A with braid, tape or pliable wire armour cables)
Ingress protection	IP66 as standard; IP67 and IP68 on request (with CMP installation accessories)
Materials	Brass, electroless nickel plated brass, copper-free aluminium; CMP SOLO LSF halogen-free thermoset elastomer seal
Sealing	Cable inner bedding and outer cable sheath
Marine approvals	LRS LR22320739TA, DNV TAE000000Y, ABS 20-1948801, BV 43180
Temperature range	-60 to +130 degC

Size selection (metric, brass)

Size	Entry thread	Cable bedding mm	Overall cable mm	Armour range mm (grooved cone)	Across flats max	Length F max mm	Shroud	Weight kg
20S16	M20	3.1-8.6	6.1-13.1	0.3-1.0	24.0	72.5	PVC04	0.16
20S	M20	6.1-11.6	9.5-15.9	0.3-1.0	24.0	70.0	PVC04	0.15
20	M20	6.5-13.9	12.5-20.9	0.4-1.0	30.5	73.0	PVC06	0.21
25S	M25	11.1-19.9	14.0-22.0	0.4-1.2	37.5	89.0	PVC09	0.33
25	M25	11.1-19.9	18.2-26.2	0.4-1.2	37.5	89.0	PVC09	0.33
32	M32	¼”-17.0	26.2-23.7	33.9-0.4	1.2	50.6	86.0	PVC11
40	M40	1-½”	22.0-32.1	27.9-40.4	0.4	55.0	60.5	90.0
50S	M50	2″-29.5	38.1-35.2	46.7-0.4	1.6	66.0	91.0	PVC18
50	M50	½”-35.6	44.0-40.4	53.0-0.6	1.6	77.1	95.0	PVC21
63S	M63	½”-40.1	49.9-45.6	59.4-0.6	1.6	82.5	102.0	PVC23
63	M63	3″-47.2	55.9-54.6	65.8-0.6	1.6	88.0	104.0	PVC25
75S	M75	3″-52.8	61.9-59.0	72.0-0.6	1.6	99.0	115.0	PVC28
75	M75	½”-59.1	67.9-66.7	78.4-0.6	1.6	110.0	117.0	PVC30
90	M90	4″-66.6	78.6-76.2	90.3-0.8	1.6	125.4	147.0	PVC32
100	M100	4″-76.0	90.9-86.1	101.4-0.8	1.6	135.3	140.0	LSF33
115	M115	86.0-97.9	101.5-110.2	0.8-1.6	133.4	162.0	LSF34	6.19
130	M130	97.0-114.9	110.2-123.2	0.8-1.6	152.4	174.0	LSF35	8.34

Values are from the CMP datasheet TDS548 Rev 20 (05/25). The ordering reference is built from the size, E1FX, 1RA and a material suffix: brass needs none, nickel plated brass is 5 and copper-free aluminium is 1; NPT options add a thread code. Example: 20E1FX1RA5 is a nickel plated brass M20 gland.

What to confirm before ordering

Confirm the cable construction (braid, tape or wire armour), the armour and bedding diameters against the table, the entry thread and enclosure, gas or dust group and the required certificate (ATEX, IECEx, UKEX). A stepped cone gland for wire armoured cable is the CMP PX2K, and the CMP T3CDS is a further CMP gland. More products are listed under cable accessories.

Documents and quotation

The attached CMP datasheet is a one-page sheet with the classification, approvals and the selection table. Send the size, material, thread and quantity with your enquiry.
