Bettis XTE3000 Intelligent Multi-Turn Electric Actuator

Overview

The Bettis XTE3000 is an intelligent, non-intrusive multi-turn electric actuator from Emerson, designed for the valve automation demands of the oil and gas, power, municipal and process industries. It drives gate, globe and other multi-turn valves directly, and with Emerson’s range of worm, spur and scotch yoke gearboxes it also operates large quarter-turn ball and butterfly valves. A double-sealed terminal board, non-intrusive setup, data logging, predictive maintenance functions, an absolute position encoder, Bluetooth communication and an advanced display are all included as standard rather than as options.

Seven Star LLC supplies the Bettis XTE3000 to pipeline operators, refineries, power stations and water utilities in the Sultanate of Oman and across the GCC. As a trusted supplier with engineering support in Muscat, we help engineers choose the actuator size, power supply, control interface and hazardous area certification to suit each motor-operated valve on their project.

Working Principle

The Bettis XTE3000 uses an electric motor with an integrated reversing starter to turn the valve through a simplified single-stage gear reduction to the output shaft. The gear train runs in an oil bath that lubricates the components for the whole service life of the actuator, without oil changes. An absolute encoder tracks valve position to within 0.1 percent of true position and continues to register movement even when mains and backup power are lost, so the actuator always knows where the valve is after a manual operation or power outage. A motor speed sensor and microprocessor record torque, while a thermostat on the motor trips it if overheating occurs.

Built-in protection logic in the Bettis XTE3000 guards the valve and actuator against jammed valves, sticky valves that resist unseating, motor overheating, repeated hammering against an obstruction and instantaneous reversal. Torque and position limits can be set as a function of valve position from 0 to 100 percent. An emergency shutdown signal can override all other commands and drive the valve to a preset position while main power is available, and a two-speed timer can stretch opening or closing time to limit surge in long pipelines.

Engineering Design of the Bettis XTE3000

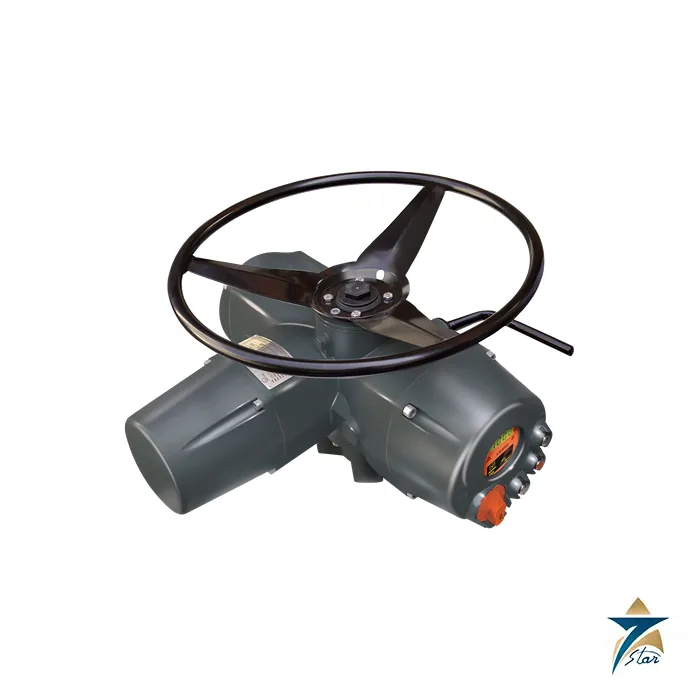

The Bettis XTE3000 enclosure is a corrosion-resistant aluminium alloy with few joints, combined with cast-iron thrust bases and cast-iron reduction gears, using bronze worm wheels where appropriate for efficiency and life. The control enclosure holds the logic and power boards, reversing contactor and a non-intrusive local interface with three push-buttons, yellow, green and red LEDs and a local, remote and off selector. A handwheel with automatic declutch on motor start, and an optional 10:1 side-mounted bevel reducer, provide manual operation. An integrated heater protects the electronics in cold conditions.

For installation and maintenance of the Bettis XTE3000, the detachable thrust base can be mounted to the valve on its own, so the whole actuator does not need to be spun onto the stem. The open-frame motor is field replaceable without oil spillage because the motor compartment is separate from the gear oil bath. An integrated bypass unit lets the actuator be removed from a fieldbus loop without opening the network, and the multilingual display uses transflective LCD and OLED technology that stays readable in bright sunlight.

Key Features

Main reasons to specify the Bettis XTE3000 on motor-operated valves include the following.

• Output torque from 30 to 1,440 Nm (22 to 1,062 ft lbs) at speeds up to 173 rpm, extended by external gearboxes.
• Quarter-turn scotch yoke gearboxes extend the range to 1,000,000 Nm for large ball and butterfly valves.
• Wide power supply options: 220 to 690 VAC three-phase 50 Hz, 208 to 575 VAC three-phase 60 Hz, single-phase AC and 24 to 120 VDC.
• Absolute encoder position accuracy within 0.1 percent, retained without power.
• Communication by HART, Modbus, FOUNDATION Fieldbus, PROFIBUS DP and LonWorks, with Bluetooth and DCMlink for local setup and diagnostics.
• Suitable for SIL 2 with one actuator or SIL 3 with two actuators in redundancy according to IEC 61508 and IEC 61511.
• Enclosure rated IP66/IP68 and NEMA 4, 4X and 6, with ATEX and IECEx flameproof versions.
• Working temperature range down to -60 °C and up to +85 °C with appropriate options.

Industrial Applications

On oil and gas pipelines and gathering networks, the Bettis XTE3000 operates block, launcher and receiver, and station isolation valves, where its ESD function, datalogger and fieldbus options support remote operation from a SCADA system. In refineries, gas plants and tank farms it automates gate and globe valves on product transfer, firewater and tank isolation duties in hazardous areas covered by its flameproof certifications. With scotch yoke gearboxes it can also drive large quarter-turn valves where electric rather than pneumatic actuation is preferred.

Power stations, desalination plants and municipal water networks use the Bettis XTE3000 on inlet, outlet and bypass valves where reliable modulating or inching duty is needed. Seven Star LLC supports these users in Muscat, Sohar, Duqm, Salalah and across the GCC as a trusted supplier of the Bettis XTE3000, coordinating actuator, gearbox and control option selection and assisting with commissioning documentation.

Technical Specifications

The following Bettis XTE3000 values are taken from Emerson’s product data sheet and brochure; check the data sheet tables for size-specific torque and speed.

How to Order

To request a quotation for the Bettis XTE3000, send Seven Star LLC the valve type and size, required torque and operating time, power supply, control signals or fieldbus, and hazardous area classification. Our instrumentation team in Muscat prepares a checked selection, including any gearbox, and supplies on request with lead time confirmed at quotation. The XTE3000 product data sheet is available for download on this page. You can also compare the Limitorque MX multi-turn actuator, the AUMA SAEx explosion-proof actuator and the Biffi F01 electric quarter-turn actuator. Contact us for Bettis electric actuator supply in Oman and the GCC.
