ABB FCAN-01 CANopen Adapter Module for ABB Drives
Description
CANopen control for ABB drives

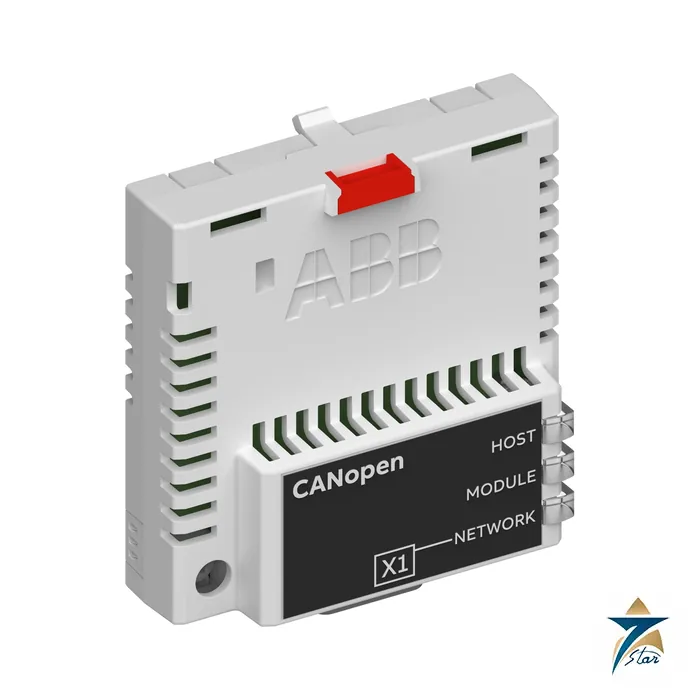

The FCAN-01 is a CANopen adapter for ABB drives. It is used in mobile machinery, packaging lines and other systems where a CANopen master already coordinates drives, encoders and I/O blocks.
The module connects through a nine-pin D-SUB male connector, X1. The manual states that the 120 ohm bus termination is not built in, so the first and last nodes need external terminators, a detail that is often overlooked during commissioning.
Technical specifications
| Parameter | Specification |
|---|---|
| Type designation | FCAN-01 |
| Function | CANopen slave adapter |
| Connector | 9-pin D-SUB male, X1 |
| Bus termination | 120 ohm, not built in |
| Maximum data rate | 1 Mbit/s |
| Bus length by rate | 25 m at 1 Mbit/s, 100 m at 500, 250 m at 250, 500 m at 125, 1000 m at 50 kbit/s |
| Supply from drive | +3.3 V, max 300 mA |
| Mounting | Option slot of the drive |
Bus rates and wiring
The manual ties bus length to data rate: 25 m at 1 Mbit/s, 100 m at 500 kbit/s, 250 m at 250 kbit/s, 500 m at 125 kbit/s and 1000 m at 50 kbit/s. Planning the trunk with these limits avoids intermittent communication faults later.
Power comes from the drive, +3.3 V with a maximum of 300 mA. The adapter plugs into a drive option slot and is configured through the fieldbus parameter group of the drive’s control program.
Using the module in practice
Compared with Ethernet options, CANopen gives modest data volume but robust, low-cost wiring and mature tools. If the plant standard is CAN-based, the FCAN-01 keeps the drive on the same bus as the rest of the machine.
Typical steps are fitting the module, wiring CAN high, CAN low and shield to the connector, fitting terminators, setting node ID and bit rate and mapping the process data in the master.
Selection and planning notes
CAN networks are sensitive to topology. Keep stubs short, run the shield continuously and use a single protective earth point for the cable screen. The manual lists the connector pin assignment, so a ready-made cable can be checked with a meter before it is plugged into the module. Remember that every node on the bus must share the same bit rate, and that a changed node ID takes effect only after a restart of the module or a power cycle, as the manual describes.
More drive types are listed in AC drives; for a general-purpose platform see the ABB ACS580 page. Ask us when a CANopen project needs a matching option for a specific control program.
Documents and quotation
Seven Star LLC supplies the FCAN-01 on request from Muscat; send the drive type, control program version and the network details, and we reply with availability and lead time. The user manual (3AFE68615500, revision F) is linked on this page.
Confirm before ordering: supported drive types and firmware, the external termination plan, node ID and bit rate, and the cable length against your chosen data rate.
