Woodward Flex500 Digital Control for Turbines, Engines and Compressors
Overview

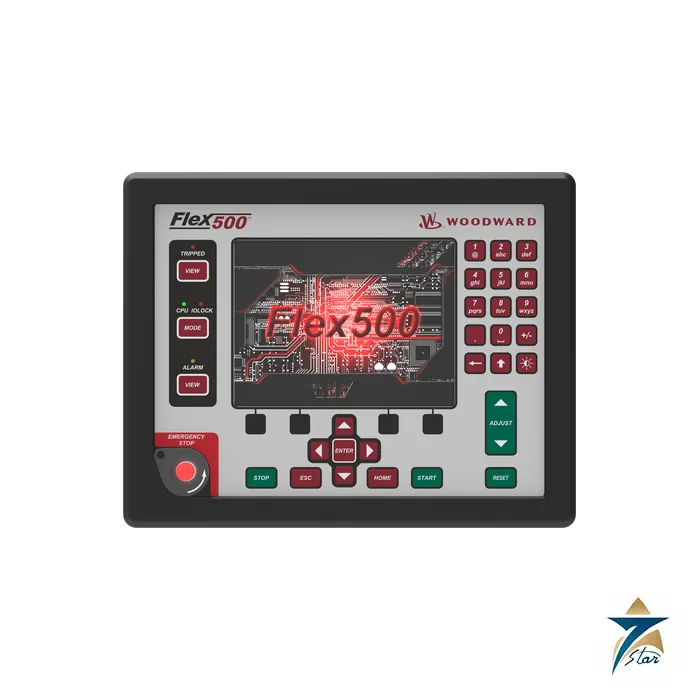

The Woodward Flex500 is a real-time digital control platform for turbines, engines and compressors. It is built on a standard industrial hardware base but programmed specifically for prime-mover control, which gives it the deterministic response of a purpose-built governor with the flexibility of a programmable controller. It is offered as a front panel mount version with an integrated 8-inch HMI or as a rear panel mount version without a display, and either can run as a simplex controller or as a dual-redundant pair.
Operators of gas turbines, compressor trains and engine-driven generators in Oman often need a controller that can be commissioned quickly, tuned on line and standardized across several machines. Seven Star LLC supplies the Woodward Flex500 with engineering support in Muscat, so oil and gas, power and utility projects can source the controller together with its distributed I/O and service documentation. It is a natural companion to machines such as the Siemens Energy SGT-800 heavy-duty gas turbine.
Real-Time Operating Principle
The Woodward Flex500 runs a real-time operating system with a structured scan rate and software that is synchronized to the input and output hardware. Deterministic scan rates can be as fast as 5 ms, and the on-board I/O is sampled with 0.5 ms scan times. Because the architecture is rigid, the screw-to-screw response time is the same at a given scan rate regardless of what else the controller is doing, which the manufacturer states has been verified by extensive FFT testing.
That behavior matters for high-speed rotating equipment. General-purpose PLCs typically use looser scan and synchronization structures, so dynamic behavior can shift as the processor becomes busy or as code is added or removed. The Woodward Flex500 avoids that drift, which supports tight speed control, fast load rejection and reliable protection of critical turbines and compressors.
Engineering Design of the Woodward Flex500
The controller is housed in an industrial hardened enclosure suitable for a control room panel or a cabinet next to the machine, and either version may be installed in an ordinary location or in a Division 2 or Zone 2 hazardous location. Input and output channels and communication ports are on the side and lower panels with un-pluggable terminal blocks, and all modules carry a sulfur and corrosion-resistant conformal coating. The optional front panel combines an engineering station and an operator control panel, with password security protecting every operation and service mode.
Programming of the Woodward Flex500 is done in Woodward’s GAP graphical application programming environment, an IEC 61131-3 compliant tool that supports function blocks, ladder logic and structured text with libraries of field-proven turbine, engine and compressor blocks. NetSim simulation lets teams validate GAP code against machine models in the office before commissioning, and Control Interface Studio is available for building custom operator screens. A Field Termination Module with integrated harnessing supports dual-redundant I/O marshalling, and RTCnet and LINKnet HT distributed I/O modules extend the channel count over the CAN ports.
Key Features
Key capabilities of the Woodward Flex500 include:
- Deterministic scan rates as fast as 5 ms with 0.5 ms on-board I/O scan times for fast, repeatable machine response.
- Front panel mount version with an integrated 8-inch graphical HMI, or rear panel mount version for skid and cabinet installation.
- Simplex or fully redundant configurations covering power, CPU, inputs and outputs, with on-line program changes in dual-redundant systems.
- Four Ethernet ports and four CAN ports, plus one serial port that supports RS-232 or RS-485 with Modbus ASCII or RTU.
- Modbus TCP and OPC communication, with SNTP time synchronization over Ethernet to the plant control system.
- Expandable I/O through RTCnet and LINKnet HT distributed modules designed for hazardous and high-temperature locations.
- Tunable values such as PID settings and ramp rates that users with the correct login level can adjust while the machine runs.
- Achilles cybersecurity certification and certification for hazardous locations, as stated in the manufacturer specification.
Industrial Applications
The Woodward Flex500 is designed for gas turbines, steam turbines, hydro turbines, gas and diesel engines and compressor control and protection. In the Sultanate of Oman that range covers wellhead and gathering compressors, gas-fired power generation, captive power at industrial sites and standby engines, where one controller family allows a whole plant to standardize on a single control system with only the software program differing between machines.
Plants in the Sohar and Salalah economic zones and in remote desert facilities benefit from a controller rated for skid mounting and high-temperature locations, since the unit tolerates an ambient range of −30 to +70 °C with the panel version. Seven Star LLC supplies the Woodward Flex500 alongside related safety and control hardware such as the ICS Triplex T8100 Trusted TMR controller chassis and the Bently Nevada 3500/33 relay output module, helping project teams coordinate documentation and delivery from one source.
Technical Specifications
The table summarizes the principal data from the manufacturer specification for the Woodward Flex500. Confirm the mounting version, voltage option and certifications against the datasheet.
| Parameter | Specification |
|---|---|
| Model | Woodward Flex500 Digital Control |
| Power | LV: 18–32 Vdc; HV: 88–264 Vac and 90–150 Vdc |
| Speed inputs | 2 MPU and 2 proximity probes with prox power |
| Discrete inputs | 20 configurable contact inputs |
| Analog inputs | 8 configurable 4–20 mA inputs |
| Actuator drivers | 2 outputs, 4–20 mA or 20–200 mA |
| Relay outputs | 8 configurable relays (2 at 24 Vdc 5 A, 6 at 24 Vdc 2 A) |
| Analog outputs | 6 programmable 4–20 mA outputs |
| Communications | 4 Ethernet (Modbus TCP, OPC), 1 serial Modbus, 4 CAN (CANopen) |
| Temperature range | −30 to +70 °C with panel mount; −40 to +70 °C bulkhead mount |
| Vibration and shock | 8.2 Grms skid mount; 10 G shock |
| Hazardous locations | ATEX II 3 G, IECEx Ex ic nA IIC T4 Gc, CSA Class I Div 2 |
Request a Quote for Woodward Flex500
Send your RFQ for the Woodward Flex500 to the Seven Star LLC instrumentation team in Muscat with the machine type, redundancy requirement, mounting style and I/O count. We will arrange stock or lead time for Oman and the GCC, confirm accessories such as the Field Termination Module and distributed I/O, and attach the manufacturer’s Woodward Flex500 datasheet to our quotation for your review.
- Datasheet Woodward Flex500 Datasheet Download
Woodward products listed
Three items show the spread of the industrial line. The 505XT is a digital control for industrial steam turbines with a single valve or single extraction/admission. The SPM-D10 is a synchronizing unit that matches a generator to a bus before the breaker closes. The TecJet 50 Plus is a gas fuel control valve with built-in actuator and electronics, used to meter fuel on gas engines. Searches for Woodward gas valves or governor control systems usually lead to these families.Ordering Woodward parts: what we need
Woodward identifies hardware by a part number in two digit groups, such as 8440-1667 for one SPM-D10 version, printed on the nameplate with a revision letter and serial number. Send all three. For a 505XT, add the supply voltage version and whether the turbine has extraction or admission. For a synchronizer, give the measuring voltage and the exact SPM-D10 variant. For a TecJet, state the fuel gas, flow size and engine control signal.Browse Woodward products by category: Control Valves, Controllers & Data Acquisition.
