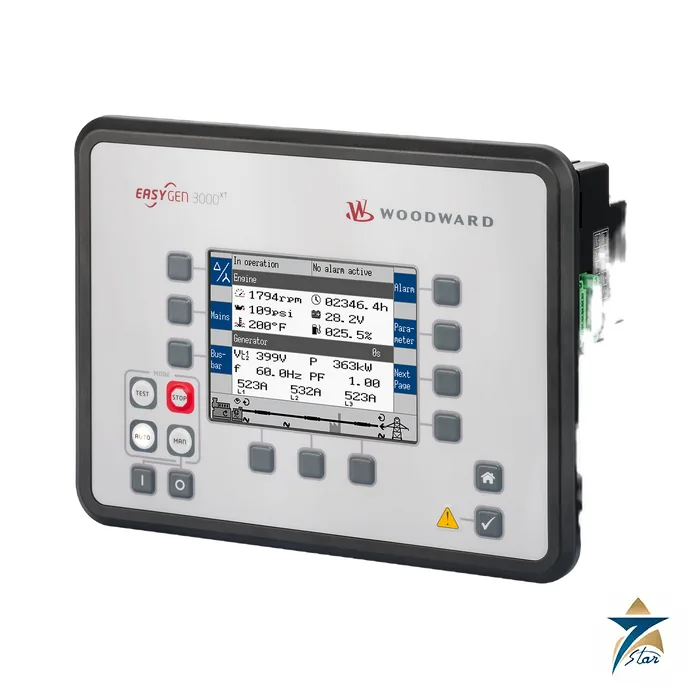

Woodward easYgen-3500XT Genset and Breaker Controller

Name: Woodward easYgen-3500XT Genset Controller – Datasheet
Brand: Woodward
SKU: easYgen-3500XT

Description

A genset and breaker controller that combines synchronising, protection and load control

The Woodward easYgen-3500XT belongs to the easYgen-3000XT series of genset controllers and is offered in Package 1 and Package 2 hardware. One device combines generator, mains and busbar synchronising, engine, generator and mains protection, an integral AVR interface, configurable PIDs, and load, import/export and power factor control, so a separate PLC is often not needed for plant logic. It supports run-up synchronisation and black start, generator-group breaker control, three CAN bus ports and three Ethernet Modbus TCP ports. Woodward describes conformal coating, galvanic isolation, redundant communication and multi-master operation so the standby controller can take over without engine spin-down.

Technical specifications

Parameter	Specification
Series members	easYgen-3100XT / 3200XT (Standard); easYgen-3400XT / 3500XT (Package 1 and Package 2)
Supply	12 / 24 VDC (8 to 40 VDC), max 22 W (Low Temperature variant max 32 W)
Ambient temperature, operation	No display and Low Temperature variant: -40 to 70 degrees C; with display: -20 to 70 degrees C
Storage temperature and humidity	-30 to 80 degrees C; 95%, non-condensing
Voltage measurement	100 VAC (69/120 VAC rated), 400 VAC (277/480 VAC rated) and, on 3400/3500 XT, 400/690 VAC; accuracy Class 0.5
Current measurement	1 A or 5 A isolated, software configurable; setting range 1 to 32,000 A; accuracy Class 0.5
Power measurement	0.5 to 99,999.9 kW/kvar; accuracy Class 1.0
Measuring frequency	50/60 Hz (40 to 85 Hz); 30 to 85 Hz on 3400/3500 XT
Package 2 I/O	23 configurable discrete alarm inputs, 10 analog inputs, 4 analog outputs 0-20 mA, expansion capability, 3-phase busbar voltage
Package 1 I/O	12 discrete alarm inputs, 3 analog inputs, single-phase busbar voltage
Analog sender types	VDO 0-180 ohm and 0-380 ohm, Pt100, Pt1000, resistive inputs
Communication	CAN bus (CANopen or J1939 on CAN 2), RS-485 Modbus RTU slave, USB, Ethernet Modbus TCP, display of 100 J1939 analog values
Relay outputs	AgNi contacts, 2.00 A AC at 250 VAC resistive, 2.00 A DC at 24 VDC inductive
Housing, front panel version	Plastic, 282 x 216 x 96 mm, front IP66 with screw fastening (IP54 with clamp), back IP20, about 1,850 g
Housing, back panel version	Powder-coated sheet metal, 250 x 228 x 50 mm (P1) or 250 x 228 x 84 mm (P2), IP20, about 1,750 g
Compliance	Marine: ABS; grid codes VDE-4105 and VDE-4110

Ordering codes and package differences

Package 2 adds the larger I/O count, 3-phase busbar voltage measurement, busbar phase rotation and interface expansion; both packages include run-up and black start, group-breaker control, 600 VAC input range and integral AVR control. The Product Specification lists these part numbers for the 3400/3500 columns:

Version	Package 1	Package 2	Rental Functions (P1 / P2)
Back-panel mounted	8440-2084	8440-2087	8440-2287 / 8440-2289
With display	8440-2085	8440-2088	8440-2283 / 8440-2290
Low temperature display	8440-2086	8440-2089	8440-2288 / 8440-2291

Rental Functions add billing counters and switchable parameter sets for mobile genset fleets. The Low Temperature option has a heated display for operation to -40 degrees C.

Selection and documents

Protection functions listed include ANSI 59/27/81O/81U, 32/32R, 46, 50, 51, 25 and ROCOF (78), with engine overspeed, underspeed and D+ failure. Confirm the number of breakers, voltage level, CT ratio, display need and fieldbus, and quote the exact 8440 part number. Woodward lists easYview displays, IKD expansion boards, LS-5 and LS-6XT breaker controllers and ToolKit software as accessories. Other Woodward controls on this site include the Woodward SPM-D10, and more are under Controllers and Data Acquisition. The attached Product Specification 45027 A contains the full comparison and I/O tables.

Datasheets & Documents

Datasheet Woodward easYgen-3000XT Product Specification 45027 A Download
