Brand: Victron Energy

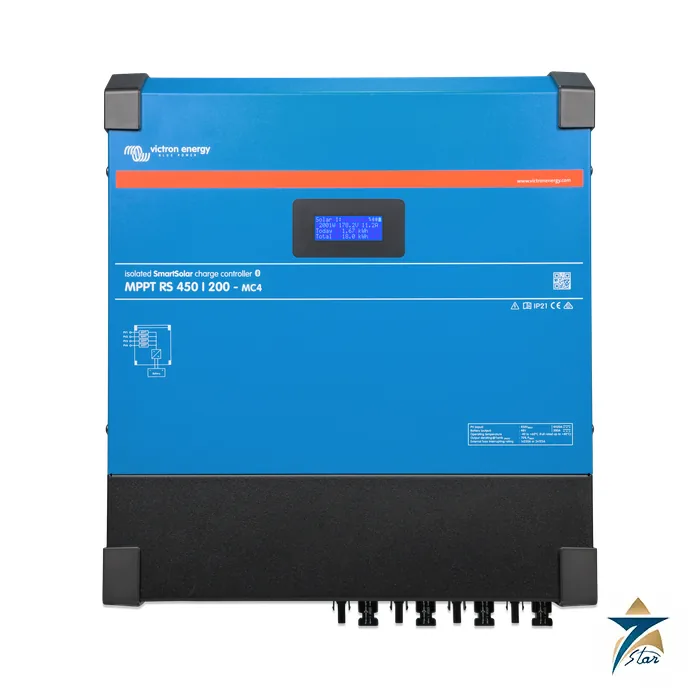

Victron SmartSolar MPPT RS 450/200 Solar Charge Controller
Description
The Victron Energy SmartSolar MPPT RS 450/200 is a galvanically isolated solar charge controller for 48 V battery systems with up to 450 V PV input and 200 A output. At 11.5 kW maximum charge power it targets large off-grid and hybrid systems, such as telecom sites, remote camps and pumping stations, where a high-voltage PV string layout reduces cable cost and losses.
Isolated high-voltage MPPT for 48 V battery banks
Four independent MPPT trackers each accept up to 16 A operational input current and 4,000 W, so strings facing different roof or ground orientations can be optimised separately. The PV operating range is 65 to 450 V with a 120 V start-up voltage. Full galvanic isolation separates the PV input from the battery side, and the controller continuously monitors PV isolation resistance (100 kΩ fail level) and reports a fault to a connected GX device while continuing to charge.
Bluetooth and a built-in display allow set-up with the VictronConnect app, including a 30-day history for each tracker. A VE.Can port and a VE.Direct port connect the unit to a GX device for monitoring through VRM, and up to 25 units can be synchronised in parallel over VE.Can. The remote input accepts a battery management system with an allow-to-charge signal, and a programmable relay can signal alarms, DC undervoltage or generator start and stop.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | SmartSolar MPPT RS 450|200 (isolated) |
| Battery voltage | 48 V |
| Rated charge current | 200 A |
| Maximum charge power | 11.5 kW at 57.6 V |
| Charge voltage defaults | Absorption 57.6 V, float 55.2 V; programmable 36 V to 60 V |
| Charge algorithm | Multi-stage adaptive, adjustable; battery temperature sensor included |
| Maximum efficiency | 96 % |
| Self-consumption | 15 mA |
| Maximum PV voltage / start-up voltage | 450 V / 120 V |
| MPPT operating range | 65 V to 450 V (limited by battery voltage: PV Voc not above 8 x float voltage) |
| Trackers | 4; 16 A operational and 20 A short-circuit current per tracker; 4,000 W per tracker |
| Max. PV array per tracker | 7,200 Wp (450 V x 20 A) |
| PV isolation fail level | 100 kΩ |
| Parallel operation | Synchronised, up to 25 units with VE.Can |
| Communication | VE.Direct, VE.Can, Bluetooth |
| Relay | Programmable; 4 A up to 35 VDC, 1 A up to 70 VDC |
| Inputs | 2 general purpose analogue/digital ports; remote on-off |
| Operating temperature | -40 to +60 °C, fan-assisted cooling; humidity max. 95 % non-condensing |
| Enclosure | Steel, blue RAL 5012; IP21 |
| Battery terminals / PV terminals | 4 x M8 bolts, 2 positive and 2 negative / 1 pair of MC4 connectors per tracker |
| Weight / dimensions (h x w x d) | 13.7 kg / 487 x 434 x 146 mm |
| Safety standard | EN-IEC 62109-1 |
Choosing between the 450/100 and 450/200
The datasheet also covers the smaller RS 450/100 (100 A, 5.8 kW, two trackers, 7.9 kg, 440 x 313 x 126 mm). Choose the 450/200 when the battery bank and PV array can use the full 11.5 kW from one unit, otherwise two 450/100 controllers give more modular redundancy. Before ordering, confirm the string open-circuit voltage at the coldest site temperature against the 450 V limit and the 8 x float voltage rule, the battery chemistry and any BMS charge-permission signal. The related Victron MultiPlus-II inverter charger is often paired with this controller, and more solar products are listed under Solar Power.
Documents and quotation
The attached datasheet is Victron Energy’s two-page data sheet for the isolated SmartSolar MPPT RS 450|100 and 450|200. Send us the array layout, battery voltage and monitoring requirement and we will quote the controller and any accessories.
Datasheets & Documents
- Datasheet Victron SmartSolar MPPT RS 450|100 and 450|200 datasheet Download
Reviews (0)
About brand
A battery-based backup or off-grid system needs one device that inverts, charges the battery and switches between AC sources. In the Victron Energy program that device is the MultiPlus-II inverter charger. Victron Energy, founded in 1975 and based in Almere, Netherlands, makes inverters, chargers and battery systems.
Seven Star LLC is an independent supplier in Muscat. We list the MultiPlus-II 48/5000/70-50 and source Victron inverter chargers for buyers in Oman.
Reading the Victron MultiPlus-II 48/5000/70-50 model name
The name carries the main ratings: a 48 V battery system, 5000 VA inverter output, a 70 A battery charger and a 50 A AC transfer switch. Victron's documentation gives a 230 VAC output and continuous power of 4000 W at 25 °C, falling to 3700 W at 40 °C. The unit supports Victron's PowerControl and PowerAssist functions for use with a limited grid or generator supply.
Ordering Victron Energy equipment: what we need
Send the complete model name, state if you need the standard or the GX version, and give the battery voltage and battery type. Tell us if the unit will run alone, in parallel or in a three-phase group, and the ambient temperature at the site, which matters in the GCC. We check the model against Victron documentation and provide the manufacturer's datasheet on request.
Related products
Frequently Asked Questions
What battery voltage does the MPPT RS 450/200 charge?
It is a 48 V controller with a programmable charge voltage window of 36 V to 60 V and a rated charge current of 200 A.
How many MPPT trackers does it have?
Four independent trackers, each with 16 A operational input current, 20 A short-circuit current and 4,000 W maximum charging power.
Is the PV input isolated from the battery?
Yes. The datasheet describes full galvanic isolation between the PV and battery connections, with PV isolation resistance monitoring at a 100 kilo-ohm fail level.
Can several units be used together?
Yes. Up to 25 units can be synchronised in parallel over VE.Can.
Which communication interfaces are included?
VE.Direct, VE.Can and Bluetooth, plus a built-in display and a programmable relay.
