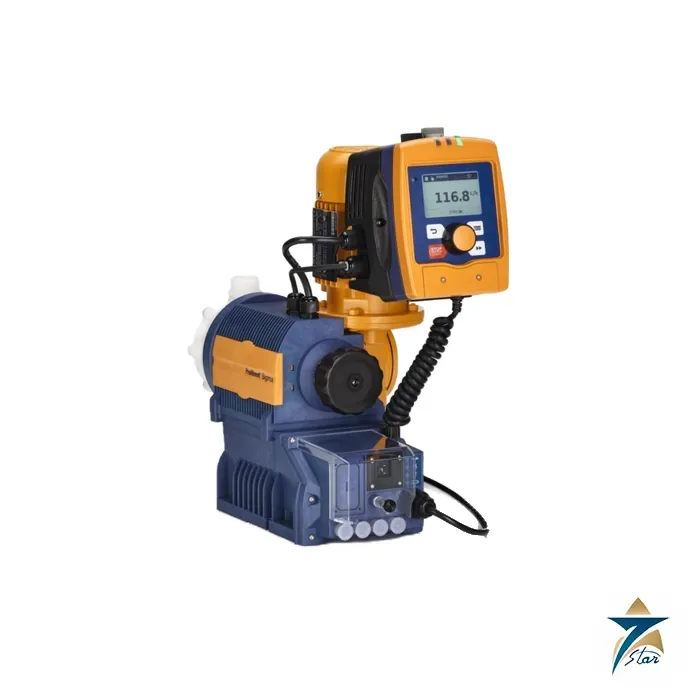

ProMinent Sigma X S1Cb Motor-Driven Diaphragm Metering Pump

Overview

The ProMinent Sigma X S1Cb is the smallest member of the motor-driven Sigma X diaphragm metering pump family and is described by the manufacturer as a smart pump built for productivity, reliability and safety. Within the S1Cb range the pump covers a capacity of 21 to 117 l/h at back pressures between 12 and 4 bar, which suits the chemical injection duties that dominate water treatment: sodium hypochlorite for disinfection, coagulants, acid and caustic for pH correction, and corrosion or scale inhibitors in utility circuits. The complete Sigma X family spans 21 to 1,040 l/h across the S1Cb, S2Cb and S3Cb versions, so a plant can standardise on one operating concept as its dosing duties grow.

Seven Star LLC supplies the ProMinent Sigma X S1Cb to water utilities, desalination and utility plants, power stations and industrial facilities in the Sultanate of Oman and across the GCC. Stock planning, quotation support and engineering assistance are handled from Muscat, so a maintenance planner can confirm a dosing head material, connector size and relay option before an order is placed rather than discovering a mismatch on site.

Operating Principle of the ProMinent Sigma X S1Cb

The ProMinent Sigma X S1Cb is a mechanically actuated diaphragm pump: an electric motor drives an eccentric mechanism that moves the diaphragm with a fixed 4 mm stroke, and the delivered volume is set by adjusting the stroke length from 0 to 100 percent in 1 percent steps with a self-locking rotary dial. Because the pump also uses an integral frequency converter, the stroke rate can be varied as well, so the combination of frequency and stroke length adjustment gives a wide control range. Under correct, constant conditions, with proper installation and calibration, the manufacturer states that precision is better than ±1 percent of the maximum stroke volume.

On the ProMinent Sigma X S1Cb, metering profiles let the controller shape the movement of the diaphragm so that viscous or outgassing media can be handled without complicated workarounds. The frequency converter is controlled by a microprocessor and also protects the power end from overloading. Safety is addressed by the patented multi-layer safety diaphragm with optical signalling, with an electrical signalling option: in the event of a diaphragm failure the feed chemical is prevented from escaping to the outside or into the power end of the pump. An integral relief valve protects the pump against excess pressure and provides a bleed option during dosing.

Engineering Design of the ProMinent Sigma X S1Cb

The housing of the ProMinent Sigma X S1Cb is fibreglass-reinforced plastic with IP 65 protection, and the standard liquid end is mounted on the left, with the option to specify other arrangements for special installation situations or for use with tanks and brackets. Wetted materials are PVDF or stainless steel 1.4571/1.4404, with special materials on request. Dosing head codes such as PVT and SST combine PVDF or stainless steel heads with PTFE seals and ceramic or stainless steel balls, while the SSH variant uses 1.4435 stainless steel for demanding hygiene applications.

Operation is through a removable operating unit with a click wheel and four additional keys, a large illuminated LCD and a three-LED status display that can be read from all sides. The service menu shows wear parts, the integral logbook records up to 300 events, and a built-in timer controls time-dependent dosing cycles. The pump takes a 1-phase supply of 100 to 230 V ±10 percent or 240 V ±6 percent at 50/60 Hz with a rated 110 W, so the same unit can be installed on a wide range of site supplies.

Key Features of the ProMinent Sigma X S1Cb

The following features, taken from the manufacturer’s flyer, define how the ProMinent Sigma X S1Cb behaves in service.

• A patented multi-layer safety diaphragm with optical signalling keeps the feed chemical from reaching the outside or the power end if the diaphragm is damaged.
• The integral frequency converter with microprocessor control protects the power end from overloading and widens the adjustment range.
• The removable operating unit of the ProMinent Sigma X S1Cb has a click wheel, four keys and an illuminated LCD, giving a consistent operating concept across the Sigma X family.
• Manual or external-contact operation is available, with a step-up or step-down factor from 99:1 to 1:99 and batch dosing of up to 99,999 strokes per start pulse.
• A programmable mA input supports analogue control from a PLC, while a connector for a 2-stage level switch protects against empty chemical tanks.
• Integral PROFIBUS connectivity is offered, and PROFINET is available through the ProMinent DULCOnvert PROFIBUS-PROFINET converter.
• Various relay modules can be selected to report operating status to a remote system.
• Food and beverage variants conforming to EU 1935/2004, FDA or hygienic design are available, along with customised designs on request.

Industrial Applications

The manufacturer lists proportional addition of chemicals in water treatment, for example sodium hypochlorite for the disinfection of drinking water, neutralisation in wastewater treatment, pulse-controlled dosing when bottling different volumes, and precise dosing of flavours and vitamins in food production. In Oman and the wider Gulf these duties appear in municipal potable water networks, desalination post-treatment, district cooling make-up water, power station utility water and industrial effluent plants around Sohar, Salalah and Muscat, where the ProMinent Sigma X S1Cb, a compact motor-driven pump with clear diagnostics, reduces the burden on operators.

Seven Star LLC supplies the ProMinent Sigma X S1Cb with engineering support in Muscat. For safety, ProMinent specifies that suitable overflow devices must be provided during installation of all mechanically actuated diaphragm metering pumps, and we recommend that the discharge line, relief arrangement and chemical compatibility are reviewed as part of every enquiry, together with any matching ProMinent controller such as the DULCOMETER range.

Technical Specifications

The table summarises the published data for the ProMinent Sigma X S1Cb; the flyer lists each capacity code with its own pressure, stroke volume and weight.
