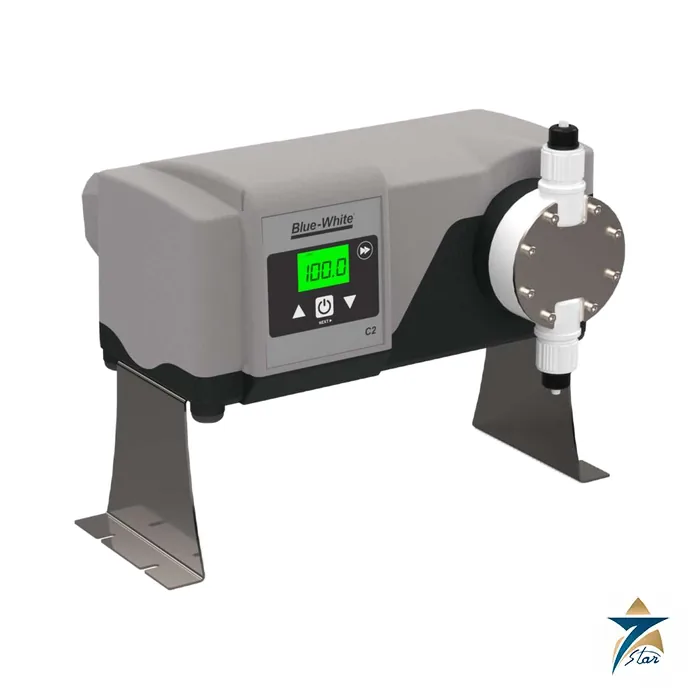

Blue-White C2 CHEM-FEED Diaphragm Metering Pump 62.5 LPH

C2 is a motor-driven CHEM-FEED diaphragm metering pump from Blue-White, delivering 0.09 to 62.5 litres per hour at up to 12 bar (175 psi). Its DiaFlex diaphragm, PVDF liquid end and diaphragm failure detection suit continuous dosing of aggressive treatment chemicals into pressurised water lines.

Mid-range diaphragm dosing pump for pressurised injection

The C2 uses a brushed DC motor with a mechanical cam and a speed range of 1 to 100 percent (100:1) at a maximum of 166 strokes per minute. Five stroke and diaphragm combinations are listed, from the Micro-Feed versions (0.02 to 2.3 GPH and 0.04 to 4.0 GPH at 150 psi) to the large-diaphragm 0.165 to 16.5 GPH model at 175 psi.

Two control levels are offered. The C2F has manual speed control, remote start/stop and the DFD/FVS alarm output. The C2V adds 4-20 mA input and output, frequency input, pulse batching and a motor-active output. Diaphragm Failure Detection senses chemical in the pump head, and the manual describes the system as designed to stop the pump on a diaphragm failure.

Key features as printed in the datasheet

• Flow range 0.09-62.5 LPH (0.02-16.5 GPH); maximum 175 psi (12 bar).
• 100:1 turndown, 166 strokes per minute maximum.
• DiaFlex diaphragm; Flex-A-Prene diaphragm option for caustic soda.
• Diaphragm Failure Detection (DFD) with Hastelloy C-276 sensor pins.
• Backlit LCD with snap-on UV cover; tactile keypad.
• NSF 61 listed; cETLus, CE and BABA compliant as stated.
• NEMA 4X powder-coated aluminium enclosure.
• Two-year motor warranty stated on the datasheet.

Technical specification

General specification

Output by cam and diaphragm

Materials

Selection and ordering guide

The code reads C2 [F or V] [voltage] [cam] [electrical] [elastomer] [fitting] [diaphragm], for example C2F2441XVA. Voltage digits: 4 is 115 V/60 Hz NEMA 5/15, 5 is 230 V/60 Hz NEMA 6/15, 6 is 220 V/50 Hz CEE 7/VII, 8 is 240 V/50 Hz AS 3112 and 9 is 230 V/50 Hz BS 1363. Cam digits 1, 2, 3, 5, 6 select the stroke and diaphragm sizes in the table above. Elastomer V is TFE/P, E is EP.

Fitting codes A to F cover hose barb, male or female NPT and 3/8 in OD tube compression layouts, each with an injection fitting. Add S for the Flex-A-Prene diaphragm when pumping caustic soda; the standard DiaFlex diaphragm is the default.

Installation and operation notes

Install close to the supply tank, injection point and power. Stainless-steel mounting brackets are included, and an extended-bracket set (72000-380) lifts the pump 4.5 in for access on floors, shelves or skids. Keep both lines short, because discharge-line length adds back pressure at the pump head.

The manual states that a back-flow prevention check valve is essential on the discharge, a pressure relief valve is recommended, and the 4-20 mA outputs and DFD relay use terminals described in the wiring diagrams. Priming takes about 60 seconds from the priming mode.

Applications in Oman and the GCC

C2 pumps are typical for sodium hypochlorite, ferric chloride, sodium bisulfite and antiscalant dosing at cooling towers, boiler feed, desalination pretreatment and swimming-pool plants. Their 12 bar capability allows injection straight into pressurised mains where a smaller pump would stall.

The datasheet lists a 14 to 110 F (46 C) ambient range, so in the Gulf keep the pump in a shaded or ventilated enclosure; the enclosure is NEMA 4X, but solar heating is not covered by the sheet.

Selection and installation notes

A dosing or metering pump is selected from the flow range, the back pressure, the chemical and the control signal. Check that the liquid end and the seals are compatible with the chemical, fit an injection valve and a pressure relief valve on the discharge, prime the pump and calibrate the flow with a measuring cylinder at the working pressure, wear the protective equipment the chemical safety sheet requires and keep spare diaphragms and valves.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Compatible accessories and related items

Accessories shown include the KIT-PSM HDPE wall bracket, PVDF injectors 71000-555, 71000-577 and 71000-579, suction tubing C-334-6-10 and 76001-361, discharge tubing C-335-6-25 and 90008-437, ball-check cartridges 20000-228 (Hastelloy), 20000-229 (PTFE) and 70001-409 (ceramic with Hastelloy spring), and extended bracket set 72000-380.

Frequently asked questions

What flow range does the Blue-White C2 cover?

0.09 to 62.5 LPH (0.02 to 16.5 GPH) depending on cam and diaphragm size.

What is the pressure limit of the C2?

175 psi (12 bar) for small and large diaphragm models and 150 psi (10 bar) for Micro-Feed versions.

What does DFD do?

Diaphragm Failure Detection senses chemical in the pump head and stops the pump if the diaphragm fails.

Which model has 4-20 mA control?

The C2V adds 4-20 mA input and output, frequency input and pulse batching.

Does Seven Star LLC act as a Blue-White distributor?

No. Seven Star LLC is an independent supplier in Muscat that sources Blue-White products on request.

Documents and quotation

This page carries the official Blue-White technical data sheet for C2. Seven Star LLC is an independent supplier in Muscat and sources Blue-White products on request; tell us the quantity and delivery point to receive a quotation. Always confirm the order code and technical values in the document first. See more in the product category.
