Brand: Allweiler

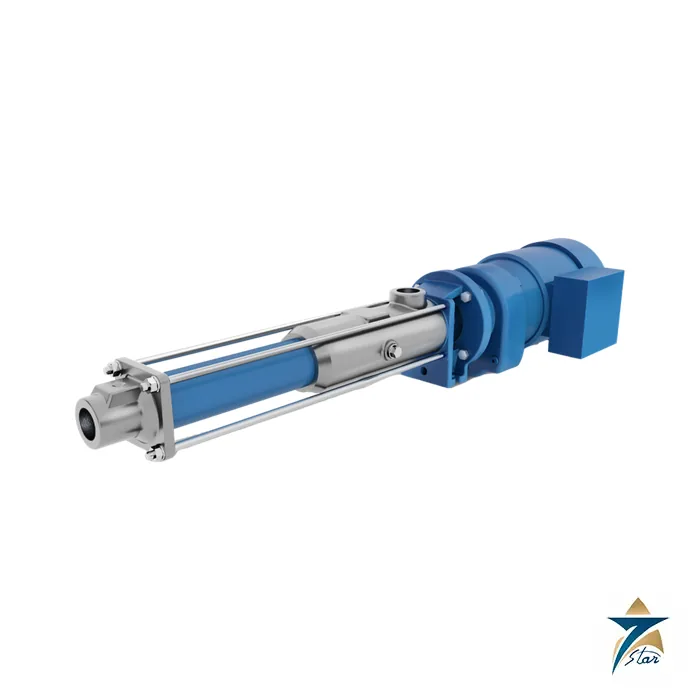

Allweiler AEB-DE Progressing Cavity Dosing Pump Series
Description
Progressing cavity dosing pump with one footprint for four sizes
The Allweiler AEB-DE is a dosing pump series for metering and dosing high-viscosity and particulate-filled fluids. It combines proven features from the Allweiler industrial range with optimized rotor and stator geometries for accurate metering. The modular setup offers four pump sizes with identical outside dimensions, so a skid builder can standardise the design whatever the flow rate and fluid, and later changes in flow need only a change of the conveying elements.
The brochure highlights a space-saving modular design, customisation with selected rotor and stator, bi-directional flow capability, and a choice of threaded or flanged connections with an optional baseplate. The suction casing has three closed drillings for filling, draining or fitting auxiliaries, and the seal sits in the flow of liquid, so the pump can be installed vertically without risk of dry run.
Technical specifications
Data from the Allweiler AEB-DE dosing pump brochure (2020).
| Parameter | Specification |
|---|---|
| Capacity Q | Up to 33 l/min (8.7 GPM) |
| Differential pressure | Up to 24 bar (348 PSI); size 12.2 limited to 12 bar (174 PSI) |
| Achievable underpressure Ps | Up to 0.9 bar (13 PSI) |
| Outlet pressure Pd | Up to 25 bar (363 PSI) |
| Liquid temperature | Up to 100 deg C (212 deg F) |
| Liquid viscosity | Up to 28000 mPas |
| Solids content | Up to 60 vol percent permissible |
| Mechanical seal | Single acting non-balanced seal, optional quench; permitted pressure -0.5 to 12 bar (16 bar) |
| Stuffing box alternative | Gland seal; permitted pressure -0.7 to 16 bar |
| Monitoring options | ATLS-T1 dry-running protection; ATLS-P pressure sensor |
| Drive | Geared motor selected per duty; optional VFD on the motor terminal box |
| Installation | Threaded or flanged connections; suction casing rotates 90 degrees; optional baseplate; horizontal or vertical |
Applications named in the brochure
The series is sold into water and wastewater (polymer, flocculant), pulp and paper (additives, sizing agent, starch, dye), marine (oily water, urea, bilge, seawater), general industry (caustic soda, glycol, paints, glues, sealants), the chemical process industry (acid, leachate, catalysts, condensate, additives), mining (polymer, tenside, catalyst), food (oil, sauce, chocolate, liquor) and power (urea, waste oil, slop oil). High-grade stainless steel material allows the pumps to cover more applications than before.
The ATLS-T1 dry-running protection prevents breakdowns by detecting dry running, and the ATLS-P pressure transmitter monitors the pressure so the signal can be used to prevent overpressure damage to pump and piping.
Choosing and confirming
Because the four sizes share a footprint, the sizing question is flow and differential pressure; use the capacity-against-pressure chart in the brochure and confirm with the manufacturer. Check viscosity against the 28000 mPas limit and the solids content against 60 vol percent. For the related maintenance-friendly design see the Allweiler OptiFix pump, and for other pumps the pump category or the Allweiler TRILUB TRL V16-40R41 screw pump.
Documents and quotation
The AEB-DE dosing pump brochure can be downloaded from this page. Seven Star LLC is an independent supplier in Muscat; please include fluid, viscosity, flow, pressure and motor requirements in your RFQ.
Datasheets & Documents
- Brochure Allweiler AEB-DE Progressing Cavity Dosing Pump Brochure (2020) Download
Reviews (0)
About brand
Allweiler is a German pump manufacturer and describes itself as Germany's oldest pump maker. Gotthard Allweiler invented a fire-fighting wing pump in 1860, and manufacturing moved to Radolfzell on Lake Constance in 1876, where Allweiler is still based. It joined the Colfax pump group in 1998, became part of CIRCOR in 2017, and CIRCOR has been owned by KKR since 2023.
Seven Star LLC lists the Allweiler TRILUB TRL screw pump and supplies Allweiler pumps and spare parts to power plants, marine operators and process plants in Oman as an independent supplier.
Allweiler company profile
| Founded | 1860, by Gotthard Allweiler |
|---|---|
| Headquarters | Radolfzell, Germany, since 1876 |
| Ownership | CIRCOR, owned by KKR since 2023; previously Colfax from 1998 |
| First product | A fire-fighting wing pump |
| Product families | Screw pumps (SN, SM, TRILUB), progressing cavity pumps (AE, AEB), centrifugal pumps (NT, NI, ALLMARINE), gear pumps, marine and fuel oil pumps |
Milestones
- 1860: Gotthard Allweiler invents the wing pump.
- 1876: Manufacturing moves to Radolfzell.
- 1998: Allweiler joins the Colfax pump group.
- 2017: Allweiler becomes part of CIRCOR.
- 2023: CIRCOR becomes part of KKR.
Allweiler TRILUB screw pumps
TRILUB is Allweiler's name for a family of three-screw pumps built for lubricating and hydraulic oil service. One driven screw meshes with two idler screws inside a liner and moves the oil axially with little pulsation, which suits lube oil circuits of turbines, compressors, gearboxes and diesel engines. The listed TRL V16-40R41 is a complete pump from this family. Buyers who search for Allweiler oil pumps are usually looking for this kind of unit, in the GCC as elsewhere.
Allweiler products we list
Ordering Allweiler pumps and parts: what we need
Send the full type designation and the serial or order number from the nameplate. For a complete pump add the oil grade and viscosity, flow, discharge pressure, speed and motor data. For parts, name the item needed, such as the screw set, liner, mechanical seal or bearing.
Facts checked against CIRCOR's Allweiler history page, October 2026.
Browse Allweiler products by category: Pumps.
Related products
Frequently Asked Questions
How many sizes does the AEB-DE have?
Four pump sizes share the same installation footprint.
What is the maximum flow?
Capacity up to 33 l/min.
What viscosity can it dose?
Up to 28000 mPas.
Can it run vertically?
Yes, the seal sits in the liquid flow, so horizontal or vertical installation is possible without dry run risk.
Is dry-run protection available?
Yes, the series can be upgraded with ATLS-T1 dry-run protection or an ATLS-P pressure sensor.
