Brand: Pentair

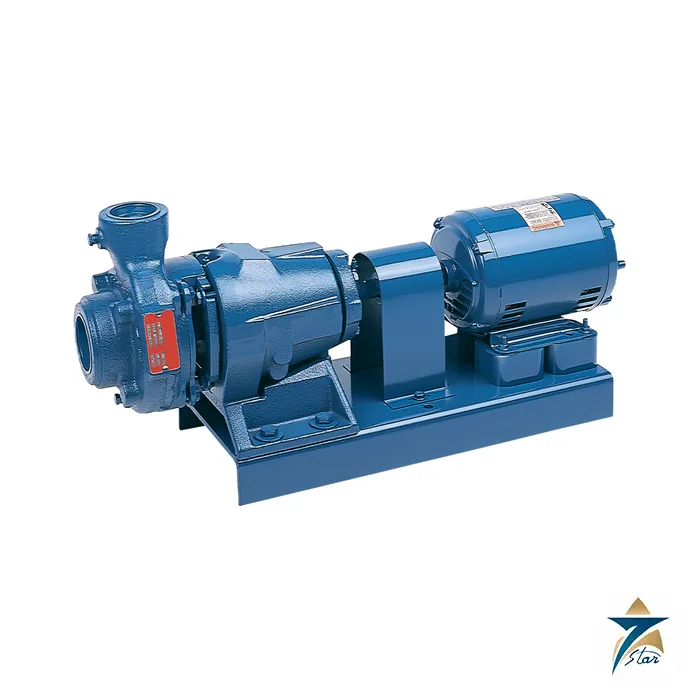

Pentair Aurora 324A End Suction Centrifugal Pump
Description
A flexible-coupled end suction pump for hot water and general liquid duties
The Pentair Aurora 324A is the horizontal, flexible-coupled, frame-mounted model of the Aurora 320 Series single-stage end suction pumps. The series covers capacities to 400 GPM (75 m3/h), heads to 210 ft (42 m) and temperatures to 225 degF (107 degC). Aurora says the clean, straightforward design of the 320 Series was developed with maximum interchangeability in mind.
The top centreline-mounted casing with a vertical centreline discharge makes the pump self-venting, avoids vapour locks and minimises pipe strain, and the back pull-out design allows disassembly without disturbing the suction and discharge piping.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Aurora 324A single-stage end suction pump, horizontal, flexible coupled (320 Series) |
| Capacity (series) | Up to 400 GPM (75 m3/h) |
| Head (series) | Up to 210 ft (42 m) |
| Temperature (series) | Up to 225 degF (107 degC) |
| Casing | Top centreline mounted, O-ring casing gasket, bronze case wearing ring (model 324A option) |
| Shaft | Stainless steel shaft designed for deflection not exceeding 0.002 in at the sealing faces |
| Impeller | Enclosed, dynamically balanced, keyed and secured by a 316 stainless steel capscrew and washer; vacuum cast impeller optional |
| Mechanical seal | Buna-N bellows and cup with 316 stainless steel parts |
| Bearings | Selected for 2 year minimum life at maximum load; grease or oil lubricated, or sealed; oil seals and non-sparking neoprene slingers |
| Options (324A) | Case wearing ring, oil lubricated and sealed bearings, grease lubricated bearings, formed steel or steel drip-rim bases, coupling guard, totally enclosed and hazardous location motors, optional discharge positions |
Selection notes
The brochure gives 3500 RPM and 2880 RPM range charts, with a note that individual performance curves should be checked for final selection. Provide flow, total head, NPSH available, liquid and temperature so the pump size and speed can be matched to the curve.
What to confirm before ordering
Confirm the size code, speed (50 or 60 Hz supply), motor type and enclosure, the base and coupling guard, seal arrangement, and the discharge position. The Pentair Aurora 3800 Series end suction pump is related, and more are listed under pumps.
Documents and quotation
The attached Pentair brochure (8 pages) covers the 320 Series models 321, 323 and 324A, with features, range charts and options. Send the size, duty point and quantity with your enquiry.
Datasheets & Documents
- Brochure Pentair Aurora 320 Series single stage end suction pumps brochure (EN) Download
Reviews (0)
About brand
Aurora is a Pentair brand of centrifugal pumps for commercial, municipal and industrial service. Seven Star LLC lists the Pentair Aurora 3800 Series single-stage end suction centrifugal pump and supplies Aurora pumps and pump parts to building services contractors, utilities and industrial plants in Oman. Requests are handled by model, size and serial number.
Pentair Aurora 3800 Series pumps
The 3800 Series is a single-stage end suction design: liquid enters axially and leaves through a radial discharge, with one impeller on the shaft. Pentair builds it as the close-coupled Model 3801 and the flexible-coupled Model 3804, and lists it for HVAC, chilled and hot water, pressure boosting, municipal and industrial service. The same casing size can be built with different impeller diameters and motors, so the size alone does not define the pump.
Ordering Aurora pumps and parts: what we need
Send the model, size and serial number from the pump nameplate, plus the impeller diameter if it is stamped there. For a new pump, give flow, total head, liquid, temperature, suction conditions, motor voltage and frequency. For parts, name the items needed, such as mechanical seal, impeller, shaft sleeve or wear rings. We accept inquiries from across the GCC.
Browse Pentair products by category: Pumps.
Related products
Frequently Asked Questions
What is the Aurora 324A?
A single-stage horizontal end suction pump with a flexible coupling, from the Aurora 320 Series.
What are the series limits?
Up to 400 GPM (75 m3/h), 210 ft (42 m) head and 225 degF (107 degC).
Is the pump self-venting?
Pentair states that the vertical centreline discharge makes the pump self-venting and avoids vapour locks.
What shaft seal does it use?
A mechanical seal with Buna-N bellows and cup and 316 stainless steel parts.
Is the pump back pull-out?
Yes, the back pull-out design allows disassembly without disturbing the piping.
