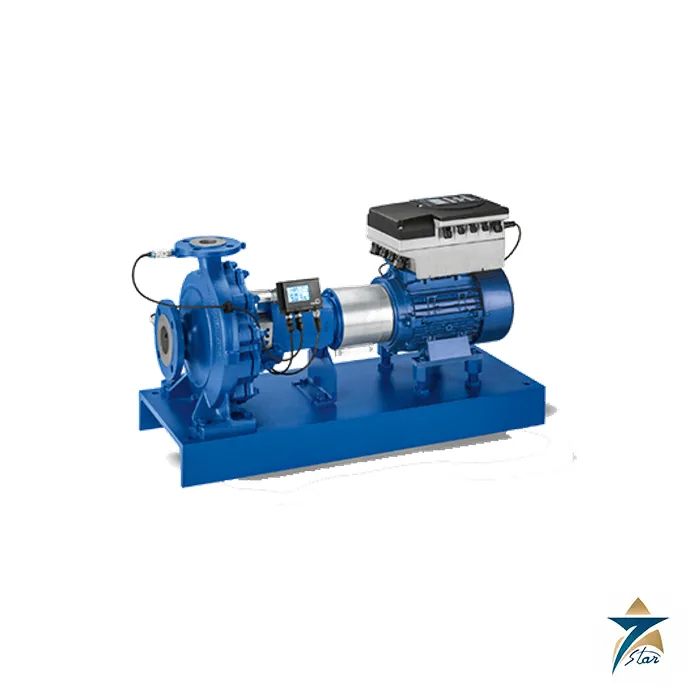

KSB Etanorm Single-Stage Volute Casing Centrifugal Pump

Overview

The KSB Etanorm centrifugal pump is a single-stage, back pull-out volute casing design built to the EN 733 dimensional standard, making it the reference pump platform for clean-water and general industrial fluid transport across the Middle East. First introduced in the 1930s and continuously refined since, the KSB Etanorm has become the best-selling standardized centrifugal pump in the world, trusted for its hydraulic efficiency, parts interchangeability, and long service life across water utilities, HVAC circuits, and process plants.

Working closely with plant engineers in the region, Seven Star LLC supplies the KSB Etanorm to municipal water authorities, building-services contractors, and industrial end users across the Sultanate and the wider GCC who need a proven, EN 733-compliant pump platform backed by genuine KSB manufacturing, spare parts, and technical support.

Operating Principle

The KSB Etanorm draws fluid axially into a closed, radially mounted impeller with multiply curved vanes, converting rotational energy into pressure head as the volute casing gradually decelerates and directs the flow toward the discharge nozzle. The back pull-out design allows the complete rotating assembly – shaft, impeller, and mechanical seal – to be withdrawn from the casing without disturbing the suction or discharge piping, which keeps maintenance downtime to a minimum on continuously operating water and process circuits.

Replaceable casing wear rings and a shaft-protecting sleeve isolate the main casing and shaft from erosive wear, extending the interval between major overhauls. Single or double mechanical seal arrangements accommodate the sealing duty of the pumped fluid, and where variable flow is required the KSB Etanorm can be paired with a motor-mounted or panel-mounted frequency inverter for IE4/IE5-class variable-speed operation.

Because the KSB Etanorm follows EN 733 dimensional standardisation, a plant that standardises on this pump family across multiple duty points can hold a common spares inventory of wear rings, sleeves, and mechanical seals rather than stocking unique parts per pump size, a practical advantage for maintenance planning on sites running dozens of pumps across water, cooling, and process services.

Engineering Design of KSB Etanorm Single-Stage Volute Casing Centrifugal Pump

The KSB Etanorm is manufactured to EN 733 (formerly DIN 24255) main dimensions, ensuring that pumps of the same duty point from different production batches remain interchangeable at the baseplate and flange. Casing and impeller materials span cast iron, bronze, and stainless steel grades selected to match the pumped fluid’s corrosivity and abrasiveness, with mechanical seals arranged to EN 12756 and motor mounting to IEC 60072 so that standard IEC motors can be fitted or exchanged in the field.

An ATEX-compliant version of the KSB Etanorm is available for pumping duties in hazardous atmospheres, and the range supports working pressures up to 16 bar and continuous fluid temperatures up to 140°C, covering the great majority of general industrial and building-services duties without requiring a specialized alloy pump.

Key Features

• Single-stage, back pull-out volute casing design to EN 733
• Flow rates up to 2,321 m³/h and heads up to 160 m
• Working pressure up to 16 bar, fluid temperature up to 140°C
• Replaceable wear rings and shaft-protecting sleeve for long service life
• Single or double mechanical seal options to EN 12756
• Compatible with IEC 60072 standard motors and frequency inverters
• IE4/IE5 efficiency-class motor compatibility for energy savings
• ATEX-compliant version available for hazardous-area service

Industrial Applications

Across Oman and the GCC, the KSB Etanorm is specified for municipal and industrial water supply networks, cooling-water circuits at power and desalination plants, and general process transfer duties at refineries and manufacturing sites in industrial zones near Sohar and Salalah, where a dependable EN 733 pump platform with readily available spare parts reduces long-term maintenance risk. Building-services contractors also rely on the KSB Etanorm for HVAC circulation, fire-fighting, and irrigation systems across commercial and residential developments.

Seven Star LLC, as an experienced supply partner for KSB, supports these projects with pump sizing based on actual system curves, ensuring the selected Etanorm variant and motor combination matches the real duty point rather than oversized, energy-wasting selection, which matters on continuously running utility and cooling-water applications throughout the region. Selecting the correct impeller trim and casing material for the KSB Etanorm at the outset also avoids premature wear from cavitation or abrasive solids, which is why Seven Star LLC reviews actual system head-flow data before confirming a final pump selection for each site.

The wide EN 733 size range also means that as a facility expands or process demand grows, a larger KSB Etanorm frame size can usually be substituted onto the same baseplate footprint and pipe centerlines, reducing the civil and pipework rework normally associated with a pump upgrade across GCC industrial and municipal water projects. Commissioning support from Seven Star LLC further covers alignment checks, baseline vibration readings, and initial performance verification against the KSB factory test curve, giving operators documented confidence in the KSB Etanorm installation from day one of operation, backed by our stock of genuine KSB spare parts.

Technical Specifications

Request a Quote for KSB Etanorm Single-Stage Volute Casing Centrifugal Pump

Seven Star LLC is an experienced supplier of KSB in Oman and the GCC, supplying genuine Etanorm pumps with full documentation, sizing assistance, and technical backup. With fast quotation turnaround and technical support, contact our engineering team for a duty-point pump selection and a formal quotation for your water supply, cooling, or process transfer requirement.
