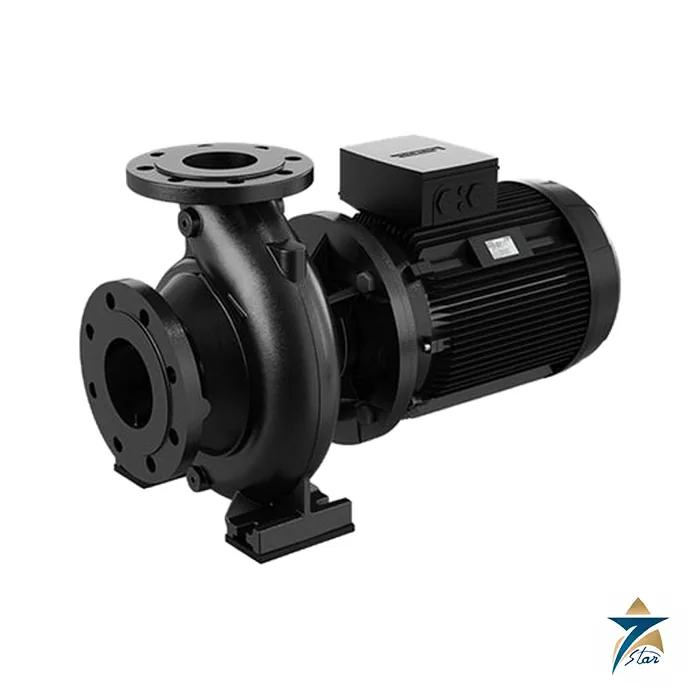

Grundfos NB Single-Stage End-Suction Centrifugal Pump

Overview

The Grundfos NB pump is a single-stage, close-coupled end-suction centrifugal pump engineered for reliable, continuous-duty performance in water supply, HVAC circulation, fire-fighting standby, and general industrial process applications. Built to the EN 733 and ISO 2858 dimensional standards, the NB series delivers a non-self-priming volute pump design with an axial suction port, a radial discharge port, and a horizontal shaft, providing predictable hydraulic performance across a broad range of flow rates and heads. Its close-coupled construction pairs the pump directly to a fan-cooled asynchronous motor, reducing footprint and simplifying alignment compared with long-coupled alternatives, while the Grundfos NB pump’s cast-iron and stainless-steel wetted-part options make it suitable for clean water, mildly aggressive fluids, and general industrial liquids.

With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the Grundfos NB pump to municipal water utilities, commercial building contractors, and industrial plants throughout the Sultanate of Oman, Muscat, and the wider GCC region. Facility engineers and procurement teams sourcing Grundfos hydraulics through Seven Star LLC receive a formal quotation, manufacturer documentation, and technical support with selection, in a region where continuous plant uptime is non-negotiable.

Operating Principle

The Grundfos NB pump operates on the classic centrifugal volute principle: liquid enters axially through the suction eye of a closed, double-curved impeller, and the impeller’s rotation imparts kinetic energy to the fluid, accelerating it radially outward into the surrounding volute casing. As the fluid moves through the progressively widening volute passage, its velocity head is efficiently converted into static pressure head, producing the flow and pressure required to move liquid through the connected piping network. Because the impeller is fully enclosed with smooth double-curved blades, hydraulic losses are minimized and the pump maintains stable efficiency across its published performance curve.

The non-self-priming design means the suction line and pump casing must remain flooded or primed before start-up, a standard consideration for end-suction volute pumps in this class. A mechanical shaft seal isolates the pumped liquid from the motor bearings, preventing leakage while allowing sustained operation at rated pressures up to 10 bar (PN 16 flange rating according to EN 1092-2). The practical consequence for plant operators is a robust, low-maintenance hydraulic unit with no valves or check mechanisms inside the wet end, delivering consistent flow with minimal internal wear when properly primed and operated within its designed duty envelope.

Engineering Design of the Grundfos NB Pump

The physical architecture of the Grundfos NB pump centers on a back pull-out design, one of its most valued engineering features for industrial maintenance teams. This configuration allows the motor, motor stool, pump cover, and impeller to be withdrawn as a single assembly without disturbing the pump casing or the connected suction and discharge pipework, dramatically reducing downtime during seal replacement, bearing inspection, or impeller servicing. The pump casing itself remains bolted in-line, so realignment after maintenance is largely eliminated – a significant advantage in tightly piped pump rooms and skid-mounted booster sets common across GCC utility and commercial installations.

Construction is close-coupled to a standard IEC-frame, fan-cooled asynchronous motor, with cast-iron or all-stainless-steel wetted components available depending on the fluid handled and corrosion requirements. Flanged suction and discharge connections are dimensioned to EN 733, with PN 16 flanges per EN 1092-2 as standard, ensuring straightforward integration with existing pipework and skid designs. The mechanical shaft seal is selected to match the application’s temperature and chemical duty, and the compact footprint of the close-coupled arrangement makes the NB pump particularly well suited to plant rooms, pump houses, and HVAC mechanical spaces where installation space is at a premium.

Key Features

The Grundfos NB pump combines proven hydraulic design with serviceable, standards-based construction. Core capabilities include:

• Single-stage, close-coupled end-suction centrifugal design built to EN 733 and ISO 2858 dimensional standards.
• Back pull-out construction enabling motor, cover, and impeller removal without disturbing the pump casing or pipework.
• Closed impeller with double-curved blades and smooth hydraulic surfaces for stable efficiency across the performance curve.
• PN 16 flanged connections dimensioned to EN 1092-2 for straightforward integration with standard pipework.
• Close-coupled fan-cooled asynchronous motor reducing footprint versus long-coupled alternatives.
• Cast-iron or all-stainless-steel wetted-part options for clean water, mildly aggressive fluids, and industrial process liquids.
• Rated working pressure up to 10 bar with mechanical shaft seal isolating pumped liquid from motor bearings.
• Broad model range across suction and discharge diameters and impeller trims to match specific duty points.

Industrial Applications

The robust hydraulic design and serviceability of the Grundfos NB pump make it a standard choice across municipal, commercial, and industrial infrastructure throughout the region. In Muscat and other urban centers of Oman, water utilities and building contractors specify the NB series for potable water boosting, HVAC chilled and condenser water circulation, and general building services where dependable, continuous-duty centrifugal performance is required. The Grundfos NB pump’s back pull-out design is particularly valued in commercial high-rise and district cooling installations, where minimizing pump-room downtime during scheduled maintenance directly affects tenant comfort and system availability.

With engineering support in Muscat, Seven Star LLC supplies the NB pump to industrial process plants, RO desalination facilities, and fire-fighting standby systems across the Sohar and Salalah economic zones, as well as to general industrial customers throughout the GCC handling clean water and mildly aggressive process fluids. Contractors and plant engineers rely on the pump’s EN 733 and ISO 2858 compliance to simplify spare-parts interchangeability and hydraulic selection across multi-vendor pump stations, while Seven Star’s supply on request and technical support help keep critical water and process systems running.

Technical Specifications

Representative technical parameters for the Grundfos NB pump series:

Request a Quote for Grundfos NB Single-Stage End-Suction Centrifugal Pump

To submit a formal Request for Quote (RFQ), confirm current availability and lead time, or download complete technical datasheets for the Grundfos NB pump, please contact the instrumentation and pumping division at Seven Star LLC today. Backed by manufacturer datasheet documentation, our engineers are ready to assist with model selection, hydraulic sizing, and rapid commercial sourcing for water supply, HVAC, and industrial process applications.
