Moore Industries IPT2 Current-to-Pressure I/P Transmitter
Description
A DIN-style current-to-pressure transmitter for pneumatic valves and dampers

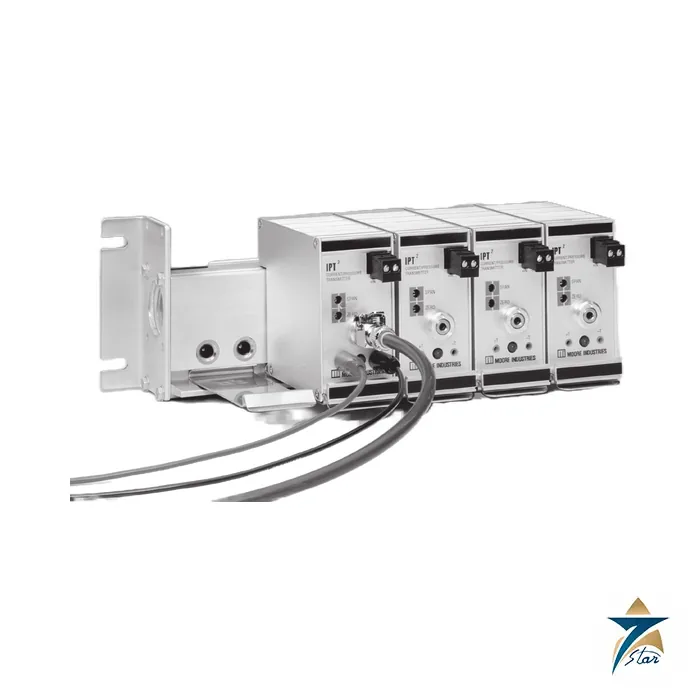

The Moore Industries IPT2 converts a 4-20 mA, 4-12 mA or 12-20 mA signal to a proportional pneumatic output so that a DCS, PLC or PC can control a pneumatic actuator, valve or damper drive. It is built in a compact 40 mm wide aluminium housing that snaps onto a standard mounting rail or a Moore pneumatic header rack such as the RIR and SIR. A front-panel LED varies in intensity with the input current, and a built-in orifice cleaning mechanism helps avoid clogs. A pneumatic test jack for calibration is available as an option, and the circuit and housing are designed to resist radio frequency and electromagnetic interference.
Technical specifications
| Parameter | Specification |
|---|---|
| Input | 4-20 mA, 4-12 mA or 12-20 mA; 375 ohms maximum (250 ohms without LED) |
| Output | 18 standard pneumatic ranges, for example 3-15 psig, 3-27 psig, 0.2-1 bar, 20-100 kPa; custom ranges on request |
| Accuracy | Better than plus or minus 0.25% of span including linearity, hysteresis and repeatability |
| Stability | Not to degrade from stated accuracy for six months |
| Step response | Under 0.2 s into 100 ml load, 10% to 90% of span (not guaranteed below 3 psig) |
| Air supply | Instrument air only, 20-40 psig; must be 5 psig above maximum output |
| Air capacity and use | Minimum 2.0 SCFM output; 0.08 SCFM typical consumption |
| Supply pressure effect | Negligible from 20 to 40 psig steady pressure |
| Voltage drop | 7.5 V maximum (5 V maximum without LED) |
| Ambient range | -40 to +80 degrees C operating and storage; effect under 0.025% of span per degree C from 0 to 50 degrees C |
| Connections | Removable terminal blocks, 22-14 AWG; 1/8 in NPT female for supply and output on units with mounting block |
| Adjustments | Zero and span screws, plus or minus 10% minimum, non-interactive |
| Weight | 438 g (15.6 oz) |
| Certification | CE (EMC); FM non-incendive Class I Division 2 groups A-D, T5 at Tamb -40 to +80 degrees C |
Housings, racks and accessories
The standard DIN-style aluminium housing can be replaced by WTI or WTIP rain-proof housings, which the datasheet describes as meeting NEMA 3R, with a plate and U-bolts for 2 inch pipe mounting on the WTIP. Surface and rack-mounted SIR and RIR racks take up to fifteen IPT2 units from a single air supply with self-sealing pneumatic connections. Accessories include a pneumatic test coupler, a 1 inch 0-30 psi gauge and gauge adapters for calibration at the test jack.
Ordering and documents
The order code lists the input, output range, supply pressure, access designation (FA1 to FA12) and housing. The datasheet also notes a reverse-acting output option, for example 20-0 psig, and a clean start-up design that prevents sticking when the instrument restarts in cold weather. Please state the signal range, the pneumatic output range, the supply pressure available and whether a test jack or rack is needed. Related Moore Industries products on this site include the Moore Industries SIX; more valve products are listed under Valve Positioners. The attached datasheet (June 2025) contains the full ordering matrix. Quote the quantity required so that a matching rack or mounting block can be proposed.
Datasheets & Documents
- Datasheet Moore Industries IPT2 datasheet (June 2025) Download
