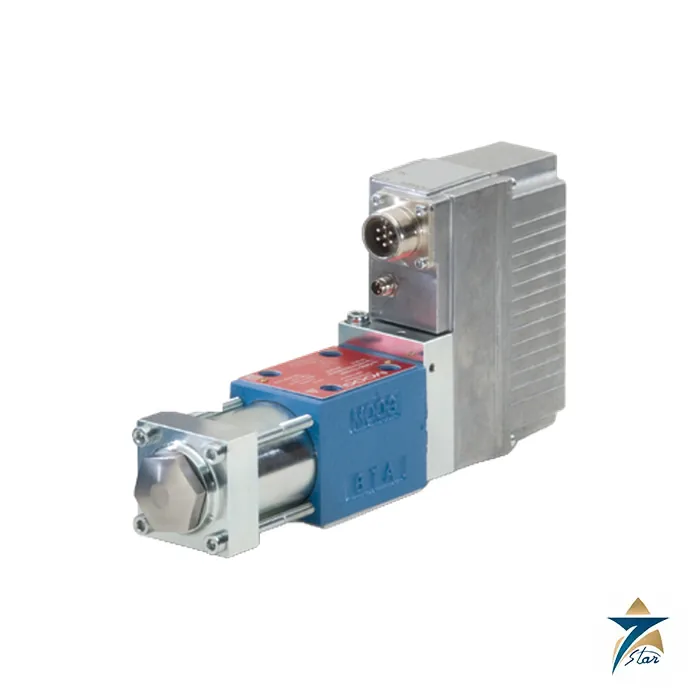

Moog D638 Digital p/Q Control Servo Valve

Overview

Moog D638 is a size 03 (ISO 4401, NG6) direct drive servo valve that adds an integrated pressure sensor and digital electronics to the proven linear force motor design. Where a conventional flow servo valve only positions a spool, the Moog D638 can regulate pressure in port A, or control flow while holding a pressure limit, so a single valve can replace the separate flow valve, pressure valve and external transducer that many hydraulic axes still carry. It is rated for 5, 10, 20 or 40 l/min per spool land at a 35 bar drop, passes up to 75 l/min at maximum flow, and works at pressures up to 350 bar.

Seven Star LLC supplies the Moog D638 to injection moulding, press, test-bench and power generation customers in Oman and the wider GCC. Because the valve is configured through a long ordering code that covers pressure range, valve function, fieldbus and connector, our team in Muscat reviews each request with the buyer so the valve ordered matches the control architecture, and engineering support before ordering helps keep commissioning on schedule.

Operating Principle

Inside the Moog D638, a permanent magnet linear force motor drives the spool in both directions from a spring-centred middle position, and an LVDT feeds the actual spool position to the digital electronics. In pressure control the electronics compare the reading of the transducer in port A with the pressure command and drive the spool until the deviation disappears. The valve can work in a main line, where it behaves like a 3-way pressure reducing or limiting valve, or in a bypass line, where a 2×2-way arrangement acts as an electrically adjustable relief valve from A to T.

In pQ mode the Moog D638 receives both a flow command and a pressure command are present. The spool position requested by the pressure controller is compared with the external spool command and the smaller of the two is used, so the valve follows the flow command until the actual pressure reaches the limit, at which point pressure control takes over smoothly. Maximum and minimum pressure limiting are both possible, and the choice between p and pQ control can be made over the fieldbus. Up to 16 pressure parameter sets can be stored and switched while the machine runs.

Engineering Design of the Moog D638

The Moog D638 is a single-stage valve with spool and bushing, weighing 2.5 kg, and it mounts in any orientation as long as the venting screw sits on top while the valve is vented. The electronics housing carries two fieldbus connectors, X3 and X4, so that the valve can be daisy-chained on the bus without external T-pieces, plus an M8 service connector (X10) for parameterisation, status LEDs, and a main connector X1 that is either 6-pole plus PE or 11-pole plus PE according to the chosen function. CANopen, PROFIBUS-DP and EtherCAT interfaces are offered, and an analog-only version is available.

Supply is 24 VDC (18 to 32 VDC) with a maximum current of 1.7 A, and protection is IP65 with mating plugs. The Moog D638 is set up with Moog Valve and Pump Configuration Software, which can store parameter sets and reuse them for later deliveries. Axis control can be added so that external sensors, read through up to three analog inputs, SSI or a bridge input, close the outer loop inside the valve itself. A version for hazardous areas, marked II 2G Ex de IIC, is available on request, and seals are supplied in HNBR or FKM.

Key Features

The following points set the Moog D638 apart from a plain analog servo valve of the same size:

• An integrated pressure sensor in the A channel of the Moog D638 removes the external transducer and the extra cabling it needs.
• One valve provides flow control, pressure control, and flow control with pressure limiting, selectable over the bus.
• The 8 ms step response for a 0 to 100 percent stroke supports fast pressure build-up and release.
• Typical threshold and hysteresis for flow control are both below 0.05 percent, with rated-flow deviation under 3 percent between samples.
• Five pressure ranges of the Moog D638 can be specified at order: 25, 100, 160, 250 and 350 bar.
• Diagnostic and condition-monitoring data are available in the valve, helping maintenance teams plan servicing.
• A one-to-one replacement path lets new valves reproduce the settings of earlier units.
• Fail-safe spool positions on power loss can be chosen at order: centre, or approximately 10 percent open toward either side.

Industrial Applications

Moog lists metal forming and presses, power generation, test and simulation as the target markets, and the catalog names oil rigs, offshore wind turbines and steel mills among the demanding environments in which the series has proven itself. Typical duties for the Moog D638 include clamp-force and back-pressure control on moulding and forming machines, regulated loading of test specimens, and pressure-controlled hydraulic clutches or brakes. In Oman, comparable duties arise in fabrication and plastics plants, in turbine and auxiliary hydraulic systems, and in the heavy-engineering yards of Sohar and Salalah.

For conventional two-stage servo loops in the same flow range, the Moog G761 electrohydraulic servo valve (0.5 to 75 l/min) is the established alternative to the Moog D638, while higher flows move to the Moog D791 pilot-operated servo valve (100 to 250 l/min) or the Moog 79 Series flow control servo valve (115 to 225 l/min). Seven Star LLC supplies the whole group from Muscat and can walk a project team through the comparison.

For plain analog flow control in the larger size 05, see the Moog D634 direct drive servo valve.

Technical Specifications

The data below for the Moog D638 come from the Moog catalog for the D638 and D639 series, measured at 140 bar, 32 mm²/s and 40 °C unless stated otherwise.

Request a Quote for Moog D638

Tell Seven Star LLC which pressure range, valve function, fieldbus and connector the Moog D638 must have, and which controller will command it, and our engineers will turn that into a formal RFQ for Oman and the GCC. We confirm availability and lead time at quotation, share the Moog catalog for dimension and ordering-code checks, and support selection against the larger size 05 variant if your flow demand exceeds 75 l/min.
