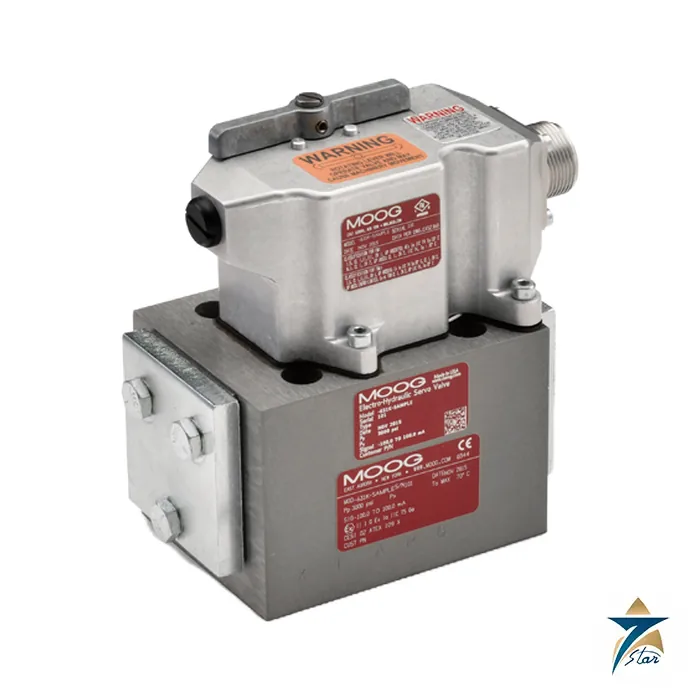

Moog G631 Servo Valve

Overview

Moog G631 is a two-stage, pilot-operated flow control servo valve built to the ISO 4401 size 05 mounting pattern, designed for industrial applications that need precise proportional flow control without requiring built-in electronics. It is supplied without integrated feedback electronics, driving directly from an analog torque-motor command, which makes it the preferred choice for OEMs that pair the valve with their own external servo amplifier or controller card rather than a valve-mounted driver.

With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the Moog G631 servo valve to industrial buyers across Oman and the wider GCC, backed by genuine factory support, full traceability, and access to Moog’s global engineering documentation. Machine builders and hydraulic system integrators in Muscat, Sohar, and Salalah can source this exact valve family through Seven Star LLC with a formal quotation and technical support with selection.

Operating Principle

The Moog G631 operates on a classic two-stage pilot arrangement: an electrical torque motor drives a hydraulic pilot flapper-nozzle stage, which in turn positions the main-stage spool proportionally to the applied current. Because the valve ships without integrated position-feedback electronics, the main spool position is typically closed back through the customer’s own external servo amplifier and, where required, an external LVDT or transducer on the driven actuator, giving system designers full control over the control-loop architecture. This open, electronics-free construction keeps the valve itself simple, robust, and easy to service in the field.

Because the main spool slides in a precision-lapped sleeve rather than seating like a poppet, the G631 modulates hydraulic flow smoothly and continuously, delivering the fast dynamic response and low hysteresis that dedicated servo applications require. The practical consequence is a valve with negligible internal leakage at the null position, no components subject to seat wear, and repeatable proportional control that remains stable across the working pressure range typical of size-05 industrial hydraulic circuits.

Engineering Design of the Moog G631

Physically, the Moog G631 is machined to the ISO 4401 size 05 mounting interface, the same widely adopted industrial footprint used across much of Moog’s D66x and D67x valve families, so it bolts directly onto standard manifolds already common in Oman’s process and machinery plants. The pilot stage and main stage share a single compact valve body, and because the valve carries no onboard electronics module, its physical envelope is smaller and lighter than equivalent valve with integrated feedback, which can simplify manifold layout on space-constrained machines.

The torque motor accepts a standard analog current command from an external servo driver, and the valve is available in a range of rated current configurations to match different customer amplifier outputs. Because there is no onboard electronics to protect from vibration or thermal cycling, the G631 is often specified into harsh environments where a fully electronic valve would need additional environmental hardening, and its mechanical simplicity means field technicians can service the pilot stage without troubleshooting an integrated circuit board. This makes the G631 a common choice for retrofits onto legacy machine control systems that already have their own dedicated servo amplifier hardware.

Key Features

The Moog G631 is engineered as a robust, electronics-free servo valve suited to system integrators who supply their own control loop, and the Moog G631 remains a benchmark choice in this configuration.

• The valve uses a two-stage pilot-operated design with no integrated feedback electronics, giving system designers full control over the servo loop architecture.
• The ISO 4401 size 05 mounting pattern provides broad manifold compatibility with Moog’s wider D66x and D67x valve families.
• A torque-motor-driven pilot stage delivers fast, low-hysteresis proportional response suitable for precision flow control tasks.
• The compact, electronics-free body reduces the physical envelope and simplifies manifold layout on space-constrained machines.
• The valve accepts a standard analog current command directly from an external servo amplifier, avoiding compatibility issues with proprietary control electronics.
• The lapped-spool main stage eliminates seat wear and delivers smooth, continuous flow modulation without switching transients.
• Mechanical simplicity allows field technicians to service the pilot stage without diagnosing onboard circuit electronics.
• The G631 is well suited to retrofits onto legacy machine platforms that already include their own dedicated servo amplifier hardware.

Industrial Applications

The Moog G631 is specified across Oman’s process and heavy machinery sectors wherever an OEM or system integrator already operates its own servo amplifier hardware and needs a reliable, electronics-free servo valve to complete the loop. In steel and metal fabrication facilities across the Sohar industrial zone, G631 valves control positioning cylinders on rolling and forming equipment where the plant’s existing PLC-based control system already closes the position loop externally. Marine and offshore equipment integrators in Salalah’s port and logistics facilities specify the same valve family for winch and steering actuation, and general industrial machine builders throughout the GCC use the G631 wherever retrofitting a legacy hydraulic system with proprietary servo electronics already installed.

With engineering support in Muscat, Seven Star LLC supplies the G631 servo valve to plants throughout the Sultanate of Oman, Muscat, and the Sohar and Salalah economic zones, as well as neighboring GCC markets, supporting OEM machine builders and hydraulic integrators that need a dependable valve to pair with their own control electronics. Because the G631 is frequently specified into safety-relevant motion systems where the customer’s own control loop must interface precisely with the valve’s response characteristics, regional buyers depend on Seven Star LLC’s traceable supply chain to supply Moog hardware and correct technical documentation rather than unsupported parallel-import unit.

Technical Specifications

The table below summarizes the key technical specifications of the Moog G631 servo valve.

Request a Quote for Moog G631 Servo Valve

Facilities across Oman and the GCC needing a Moog G631 servo valve can request a formal RFQ directly from Seven Star LLC’s instrumentation division, with lead time and availability confirmed at quotation. Technical datasheets, dimensional drawings, and application support are available on request, and our engineers can help confirm the correct current rating and spool configuration for your existing servo amplifier. Seven Star LLC provides manufacturer documentation and technical support – contact us today to place your order or request a technical consultation.
