Brand: Kidde

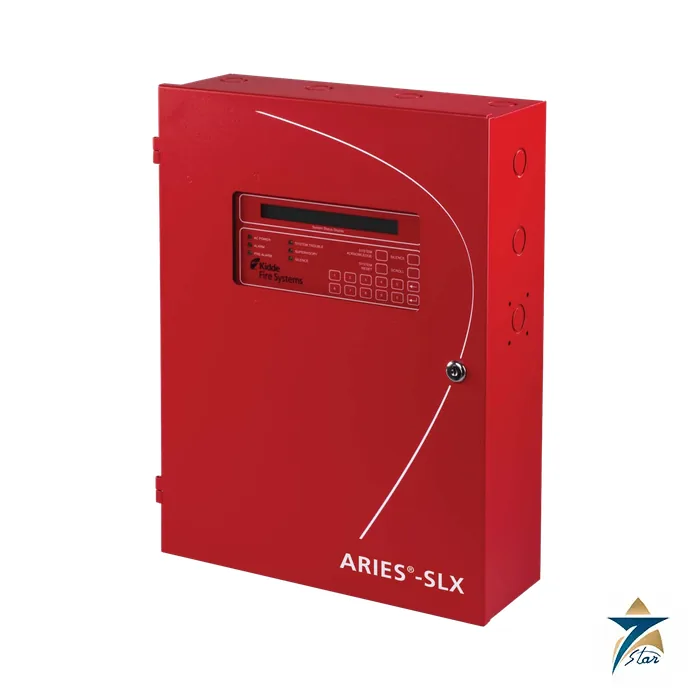

Kidde ARIES-SLX Single-Loop Addressable Suppression Control Unit
Description
An addressable release panel for one loop
The Kidde ARIES-SLX is an intelligent, addressable, single-loop fire alarm and suppression control unit. One signaling line circuit carries up to 255 SmartOne addressable devices, and six output circuits cover notification and agent release. It is aimed at single- and multi-hazard waterless suppression: the datasheet lists Kidde ECS and ADS clean agent, inert gas, HP and LP CO2, WHDR wet chemical, IND dry chemical and Marioff HI-FOG water mist, along with sprinkler supervisory, deluge/pre-action and foam systems by others.
Technical specifications
| Parameter | Specification |
|---|---|
| Model / designation | ARIES-SLX, document K-76-650 Rev AD (effective February 2026) |
| Signaling line circuit | 1 SLC, 255 devices max., Class A, B or X (with isolators); 40 ohm max. loop resistance, 0.5 microfarad max. |
| Output circuits | 2 NACs, 2 release circuits, 2 combination NAC/release circuits; NAC 24 VDC regulated, 1.5 A max. each |
| Release circuits | One or two control heads or solenoid valves, one Metron actuator (24 VDC, 2.4 A max.), or one set of initiators |
| Relays | 3 programmable plus 1 trouble Form-C; 1.0 A at 30 VDC resistive, 0.5 A at 30 VDC or 120 VAC inductive |
| Auxiliary power | 2 Class B outputs, 1 A at 24 VDC each, resettable or continuous |
| Mains input | 120 VAC 50/60 Hz 3.2 A or 220/240 VAC 1.6 A |
| Power output / batteries | 5.4 A at 24 VDC regulated; up to 70 Ah sealed lead-acid; enclosure fits two 12 Ah batteries |
| Display | 80-character (2 x 40) backlit LCD with status LEDs |
| Ports | 2 RS-232, 1 RS-485 annunciator bus (31 remote addresses max.), 1 USB device port |
| Networking | 32 nodes, up to 8,160 addresses, via NIC and optional fiber-optic converter OCC (62.5/125 multimode, up to 1.6 km between nodes) |
| Enclosure | NEMA 1, 18 gauge steel, red; 366 x 129 x 487 mm with door; surface or flush (trim ring ordered separately) |
| Operating environment | 0 to 49 degrees C, 93 percent RH at 32 degrees C non-condensing, indoor dry use |
| Listings as printed | UL Listed to ANSI 864 10th edition; FM Approved; California State Fire Marshal |
| Order numbers | 77-600000-901 (USA use); 76-600000-901 (outside USA); 76-600000-007 trim ring; 76-100010-001 battery cabinet; 76-600000-005 RDCM |
Where the ARIES-SLX fits in the range
The SLX is the compact member of the ARIES family. A single SmartOne loop is enough for one hazard area or a small plant room with photoelectric smoke detectors (DS-PS), heat detectors (DS-HFS), duct detectors (DS-SD), monitor modules and control modules. Linear heat sensor cable connects through addressable input modules, and AIR-Intelligence air sampling detectors connect through addressable protocol interface cards. For two or more loops, or expansion beyond 255 addresses at one location, the multi-loop ARIES-MLX is the datasheet family member to consider.
Programming is done with the ACT-SLX configuration tool over USB. A front panel AutoLearn routine builds a general-alarm program quickly, while Auto-Setup configures the typical waterless suppression scenario. Spurt and Squirt functions and Modbus TCP/IP are listed features.
What to confirm before ordering
Give the suppression system type and the control head or solenoid part numbers, the number of addressable devices, whether any networking or remote display modules are needed, the mains voltage and the battery size. The panel is backward compatible with Kidde, Fenwal and Chemetron control heads and initiators, and the datasheet says it can network with legacy Chemetron and Fenwal single-loop units, which helps in replacement projects. Check the version for your region: the USA and non-USA part numbers differ. Commissioning and acceptance belong to the licensed fire contractor.
Documents and quotation
Use the download on this page to open the manufacturer’s datasheet K-76-650 (4 pages). We supply from Muscat as an independent company. For a quotation, give us the exact designation, quantity and site; price and availability follow on request. A clean agent cylinder such as the Kidde FM-200 200 lb cylinder can be quoted alongside the panel, with more fire-protection items in Logic Controllers.
Datasheets & Documents
- Datasheet Kidde ARIES-SLX datasheet K-76-650 Rev AD (February 2026) Download
Reviews (0)
About brand
Engineered fire suppression hardware, cylinders, valves and the control heads that release them, is the side of Kidde that industrial sites deal with. The name goes back to 1917. Seven Star LLC lists Kidde clean agent cylinders, control heads and pilot cylinders, and supplies Kidde fire systems parts to operators and fire contractors in Oman as an independent supplier. Household smoke alarms and aircraft systems sold under the same name are outside our scope.
Kidde fire suppression parts listed here
The listed items are release-train components: the WK-890181-000 electric control head, a 24 V DC unit used on Kidde FM-200 systems, an FM-200 (HFC-227ea) clean agent cylinder in the 200 lb size, and the K62462 pilot gas cylinder. Kidde also builds high-pressure CO2 systems with their own control heads and nitrogen pilot cylinders. Typical sites in the GCC are turbine enclosures, switchgear and control rooms, data halls and marine machinery spaces.
Ordering Kidde parts: what we need
Kidde components are ordered by part number, so send it exactly as printed on the label or in the system drawings. For an agent cylinder we also need the fill weight, valve type and the transport documents required. Send the nameplate photo and the system design reference whenever possible.
Browse Kidde products by category: Fire Fighting.
Related products
Frequently Asked Questions
How many addressable devices can one ARIES-SLX control?
One signaling line circuit supports up to 255 SmartOne devices. Networking up to 32 nodes extends the capacity to 8,160 addresses, according to the datasheet.
What are the output circuits on the ARIES-SLX?
Two notification circuits, two release circuits and two combination circuits that are set as notification or release, giving six circuits in total.
Does the ARIES-SLX support remote displays?
Yes. The annunciator bus supports up to 15 remote display/control modules plus LED and relay driver modules, within a total of 31 remote addresses.
Which suppression systems can it release?
The datasheet lists Kidde ECS and ADS clean agent, inert gases, HP and LP CO2, WHDR wet chemical, IND dry chemical and Marioff HI-FOG water mist, plus sprinkler, deluge/pre-action and foam systems by others.
What are the part numbers for the control unit?
77-600000-901 for use in the USA and 76-600000-901 for use outside the USA, both red. Check the version with the supplier for your project.
