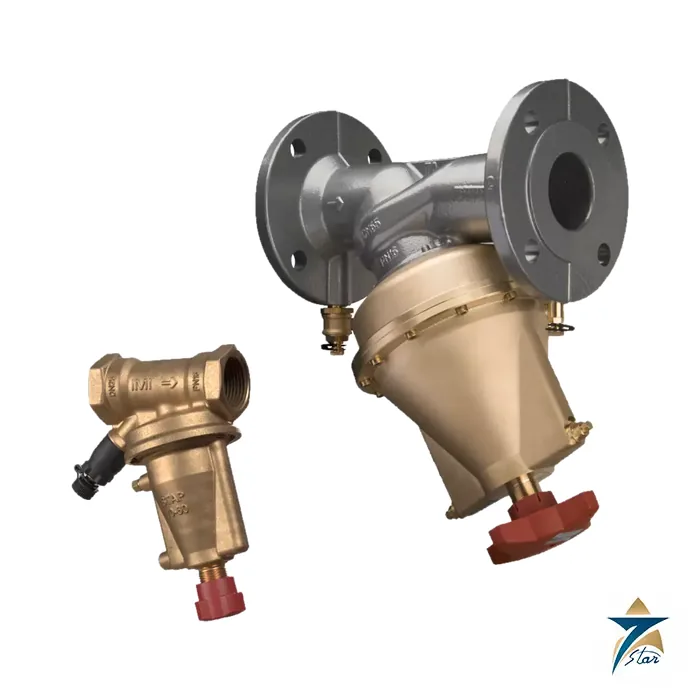

IMI TA STAP Differential Pressure Controller DN15-50

Name: IMI TA STAP Differential Pressure Controller – Datasheet
Brand: IMI TA
SKU: STAP

Description

Differential pressure controller that keeps hydronic circuits stable

The IMI TA STAP is a differential pressure controller for the secondary side of heating and cooling systems. Installed in the return pipe and connected by a capillary tube to a balancing valve, it holds a constant differential pressure across a circuit, riser or control valve while the available pressure and load change. That keeps control valves quiet and stable, removes the need to re-balance when parts of the plant are switched in or out, and makes commissioning faster in buildings with many zones.

The set-point is adjustable with a 3 mm Allen key, a shut-off function simplifies maintenance, and a measuring point with a draining option helps balancing. The body, bonnet, cone and spindles are made from AMETAL dezincification resistant alloy with an HNBR membrane.

Technical specifications

Values are from the IMI TA STAP leaflet, DN 15-50.

Parameter	Specification
Type	Differential pressure controller with adjustable set-point and shut-off
Sizes	DN15 low flow, DN15 to DN50
Pressure class	PN 16
Maximum differential pressure over valve	250 kPa
Setting ranges	5-25 kPa (DN15 LF, 15, 20); 10-40 kPa (DN32, 40); 10-60 kPa (DN15 LF, 15, 20, 25); 20-80 kPa (DN32, 40, 50)
Temperature	-20 to 120 C
Media	Water or neutral fluids; water-glycol mixtures 0 to 57 %
Connection	Internal thread ISO 228, thread length ISO 7-1
Materials	Body, bonnet, cone and spindles AMETAL; EPDM O-rings; HNBR membrane; stainless steel spring
Supplied with	1 m capillary pipe and transition nipples G1/2 and G3/4
Installation	In the return pipe, with correct flow direction arrow

Working range and articles

Size	Kvmin	Kvnom	Kvm	qmax, m3/h	Setting range, kPa
DN15 LF	0.05	0.17	0.7	0.5	5-25 or 10-60
DN15	0.07	1.0	1.4	1.0	5-25 or 10-60
DN20	0.16	2.2	3.1	2.2	5-25 or 10-60
DN25	0.28	3.8	5.5	3.9	10-60
DN32	0.42	6.0	8.5	6.0	10-40 or 20-80
DN40	0.64	9.0	12.8	9.1	10-40 or 20-80
DN50	1.2	17.0	24.4	17.3	20-80

Article numbers and dimensions (G thread, length L, height H):

Size	Range	Thread	L, mm	H, mm	Article
DN15 LF / 15 / 20	5-25 kPa	G1/2, G1/2, G3/4	83-90	137-139	52 264-115 / 52 265-115 / 52 265-120
DN32 / 40	10-40 kPa	G1-1/4, G1-1/2	133-135	179-181	52 265-132 / 52 265-140
DN15 LF / 15 / 20 / 25	10-60 kPa	G1/2 to G1	83-92	137-141	52 264-015 / 52 265-015 / -020 / -025
DN32 / 40 / 50	20-80 kPa	G1-1/4 to G2	133-137	179-187	52 265-032 / -040 / -050

Sizing and selection

Choose the smallest valve whose minimum required pressure drop, read from the leaflet diagram, is below the available differential pressure; for example at 6000 l/h the DN40 needs about 22 kPa while the DN32 needs 50 kPa. Check that the circuit set-point lies inside the setting range of the chosen size, and combine the controller with a STAD balancing valve for flow measurement and capillary connection. STAP and STAD packages are listed under their own article numbers, for example 52 865-104 for DN40. See the IMI TA-Modulator for pressure independent control; more valves are under Control Valves.

Documents and quotation

The attached leaflet includes the sizing diagram, five application examples, accessories (draining kit, measuring point, extension kit) and the package numbers. Send the size, set-point range and quantity for a quotation.
