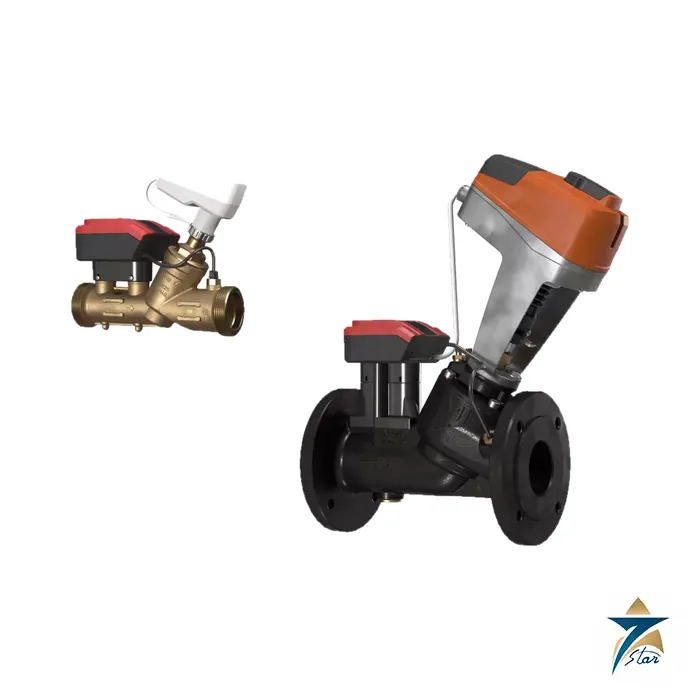

IMI TA-Smart Control Valve DN15 to DN150

Name: IMI TA-Smart Control Valve – Datasheet & Price Quote
Brand: IMI TA
SKU: TA-Smart

Description

Smart 2-way control valve with ultrasonic flow, temperature and power measurement

The IMI TA-Smart is a smart two-way control valve for heating and cooling terminals, air handling units and zones. An ultrasonic flow sensor and temperature sensors are built in, so the valve controls flow or power directly, shows flow, supply and return temperature, delta T and energy, and logs its data without separate meters. The valve characteristic is EQM, adjustable from EQM 0.25 to inverted EQM 0.25, which gives stable modulating control even at very low part-load flows. Hydronic systems in offices, hospitals, hotels and district energy substations use this type of valve to reduce pumping energy and keep delta T high.

Setup and diagnostics are done from a Bluetooth smart device with the HyTune app, and communication is by BACnet or Modbus, MQTT and analog signal. Cloud connection and delta T or return temperature limitation are optional. Change-over operation lets one valve serve heating and cooling.

Technical specifications

Values are from the IMI TA-Smart leaflet. Full valve, flow range and article tables are in the PDF.

Parameter	Specification
Type	2-way control valve with flow, temperature and power measurement
Sizes	DN15 to DN150, including DN50 high flow (HF)
Pressure class	DN15-50 PN 25; DN65-150 PN 16 or PN 25
Maximum differential pressure	400 kPa (4 bar); closing pressure 600 kPa (6 bar)
Medium temperature	-10 to 110 C; operating environment 0 to 50 C
Media	Water, water-ethylene glycol up to 56 %, water-propylene glycol up to 57 %, Kilfrost GEO and Glysofor E (firmware 11.x.x or later)
Flow ranges (qsetmin to qnom)	DN15: 160-1260 l/h; DN20: 380-2000; DN25: 540-2900; DN32: 920-4900; DN40: 1560-8300; DN50: 2680-15000; DN50 HF: 4560-22800; DN65: 5800-29000; DN80: 8640-43200; DN100: 14200-71000; DN125: 22400-112000; DN150: 33000-165000 l/h
Flow accuracy	Water: 2 % at 100 % qnom to 2.4 % at 5 % qnom (MID class 2); water-glycol 3 % to 4 % (class 3)
Flow control accuracy	+/-5 % from 4 % to 100 % qnom; +/-10 % from 0.5 % to 4 % qnom
Leakage	DN15-50 below 0.01 % of qnom (Class IV, EN 60534-4); DN65-150 Class V
Supply and power	24 VAC/VDC +/-15 %, 50/60 Hz; operation below 4.0 W (DN15-50) to below 7.7 W (DN100-150)
Control signal	0(2)-10 VDC, 0(4)-20 mA, BACnet or Modbus; output 0(2)-10 VDC; Bluetooth Low Energy
Protection	IP54; protection class III (SELV)
Connection	DN15-50 external thread ISO 228; DN65-150 flanges EN 1092-2 type 21
Materials	DN15-50 AMETAL body, plug and insert; DN65-150 ductile iron EN-GJS-400-15, stainless steel seat and spindle
Standards	EMC 2014/30/EU (EN 60730-1, -2-14); PED 2014/68/EU

Articles by size

DN15 to DN50 (threaded, with temperature housing and 3 m sensor cable; versions with pre-mounted SmartBox cables have article numbers ending -10xxx):

Size	Thread	L, mm	H, mm	Kvs	Article
DN15	G3/4	167	165	1.90	322231-00015
DN20	G1	180	166	3.15	322231-00020
DN25	G1-1/4	187	166	4.35	322231-00025
DN32	G1-1/2	200	191	7.28	322231-00032
DN40	G2	218	190	12.3	322231-00040
DN50	G2-1/2	239	190	21.2	322231-00050
DN50 HF	G2-1/2	244	195	34.8	322231-00051

DN65 to DN150 (flanged, with temperature sensor pocket and 5 m cable):

Size	Flange	L, mm	H, mm	Kvs	Article
DN65	PN16 / PN25	290	377	49	322231-01265 / 01365
DN80	PN16 / PN25	310	380	73	322231-01280 / 01380
DN100	PN16 / PN25	350	438	120	322231-01290 / 01390
DN125	PN16 / PN25	400	444	190	322231-01291 / 01391
DN150	PN16 / PN25	480	462	265	322231-01292 / 01392

Selection notes

Choose the size from the required maximum flow within the qsetmin to qnom range, and confirm that the differential pressure across the valve stays below 400 kPa. Below 2 C medium temperature the spindle must be protected from ice with vapor tight insulation. The user remains responsible for restricting physical and network access to the valve. A mechanical alternative is the IMI TA-Modulator pressure independent control valve; related valves are under Control Valves.

Documents and quotation

The attached leaflet includes the full article tables, accessories, installation clearances and signal options. Send the size, pressure class, communication protocol, and whether pre-mounted cables are wanted when requesting a quotation.
