Brand: Helukabel

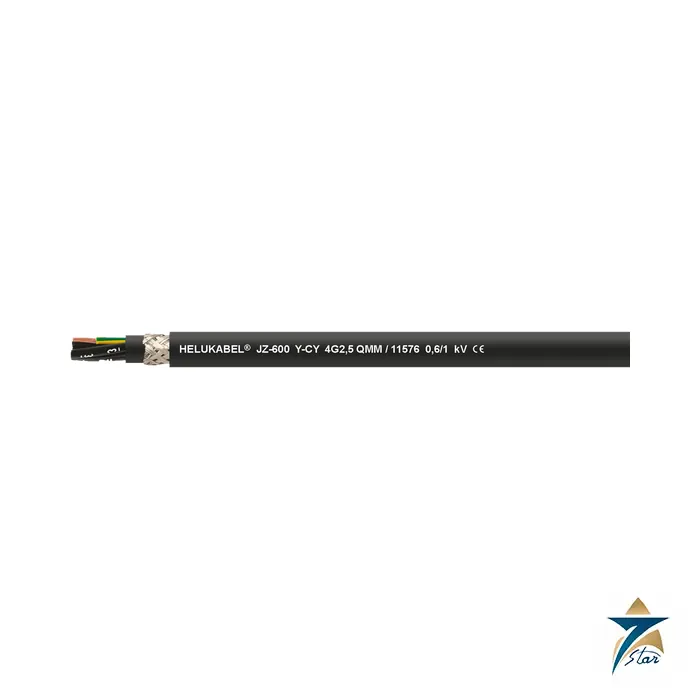

Helukabel JZ-600-Y-CY Screened PVC Control Cable
Description
The Helukabel JZ-600-Y-CY is a screened PVC control and connection cable rated 600/1000 V, with an inner sheath, a tinned-copper braid of about 85 percent coverage and a black UV-resistant outer sheath. It is an EMC-preferred type: the dense braid keeps interference out of control and signal cores, and the black sheath allows fixed installation outdoors. The OZ-600-Y-CY version omits the protective conductor.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | JZ-600-Y-CY (with protective conductor) / OZ-600-Y-CY (without) |
| Standard basis | In alignment with DIN VDE 0262 and DIN VDE 0285-525-2-51 / DIN EN 50525-2-51 |
| Nominal voltage | AC U0/U 600/1000 V |
| Test voltage core/core | 4000 V |
| Breakdown voltage | 8000 V |
| Coupling resistance | At 30 MHz, approx. 250 Ohm/km |
| Temperature range | Flexible -15 °C to +80 °C; fixed -40 °C to +80 °C |
| Minimum bending radius | Flexible 10x outer diameter; fixed 5x outer diameter |
| Conductor | Bare copper, finely stranded, DIN VDE 0295 Class 5 / IEC 60228 Class 5 |
| Core insulation | PVC, DIN VDE 0207-363-3 / DIN EN 50363-3 (TI2) |
| Screen | Braided tinned copper wires, approx. 85 % coverage, over an inner PVC sheath |
| Outer sheath | PVC, DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (TM2), black RAL 9005, metre marking |
| Properties | Largely oil resistant; UV-resistant and weather-resistant to DIN EN ISO 4892-2; for outdoor use |
| Fire behaviour | Flame-retardant to DIN EN 60332-1-2 |
| Approvals | EAC |
When the 600/1000 V screened type is the right pick
Helukabel positions this cable for machine tools, assembly and conveyor lines, plant construction, heating and air-conditioning and steel mills, in dry, damp and wet rooms and outdoors in fixed installation. The data sheet notes that, with its extended nominal-voltage range and good UV resistance, it is primarily used in Southern Europe, Arabic, Asian and Eastern countries, which is why it turns up in Gulf plant specifications. It is not for direct burial or laying in water; the data sheet states it becomes suitable for direct burial from an outer diameter of 20 mm.
For EMC performance the screen should be terminated at both ends with a large all-round contact area, as Helukabel recommends. The standard JZ-500 has no screen, and the double-screened TOPFLEX-EMV types are intended for frequency-converter motor lines rather than control wiring.
Core counts and sizes
| Part no. | Cores x mm² | Outer diameter mm (approx.) | Weight kg/km (approx.) |
|---|---|---|---|
| 11464 | 2 x 0.5 | 8.4 | 115.0 |
| 11467 | 5 G 0.5 | 10.1 | 169.0 |
| 11490 | 3 G 0.75 | 9.3 | 143.0 |
| 11576 | 4 G 2.5 | 13.9 | 351.0 |
| 11590 | 2×4 | 13.4 | 306.0 |
| 11593 | 5G4 | 17.6 | 623.0 |
| 11599 | 4G6 | 17.8 | 673.0 |
| 11605 | 5 G 10 | 24.8 | 1207.0 |
Sizes extend up to 4 G 185 mm² (part 13147, outer diameter 69.4 mm). AWG values in the table are approximations.
Documents and quotation
The Helukabel data sheet, dated 30.10.2025, is attached. Seven Star LLC supplies Helukabel cables in Oman against the part number. Confirm the core count, cross-section, protective conductor option, routing (indoor, outdoor or buried) and screen termination method before ordering. Compare with the unscreened control cable range.
Datasheets & Documents
- Datasheet HELUKABEL JZ-600-Y-CY data sheet (PDF, 30.10.2025) Download
Reviews (0)
About brand
Helukabel is a German cable manufacturer and supplier founded in 1978 and headquartered in Hemmingen near Stuttgart, part of the family-run HELU Group. Its catalogue covers control and connection cables, data and bus cables, motor and servo cables, drag-chain cables, power and fire-resistant cables, fibre optic and solar cables, together with cable accessories and assemblies.
Helukabel cable families
Industrial control cables such as JZ-500 and JZ-600, screened instrumentation cables such as PAAR-TRONIC-CY, motor cables for frequency converters such as TOPFLEX-EMV, halogen-free and fire-resistant power cables, welding cable, solar cable and Industrial Ethernet and fibre optic cables each have a data sheet with construction, standards, temperature range and a part-number table listing core count, cross-section, outer diameter and weight.
Supply from Seven Star LLC
Seven Star LLC, an independent supplier in Muscat, sources Helukabel cables against the manufacturer part number and data sheet, and provides the data sheet with each quotation. Send the part number, or the cable type, core count, cross-section and length.
Related products
Frequently Asked Questions
Is the JZ-600-Y-CY suitable for outdoor use?
Yes for fixed installation. The black PVC sheath is UV-resistant and weather-resistant to DIN EN ISO 4892-2, but it must not be laid directly in soil or water below the diameter stated in the data sheet.
What is the screen construction?
A braid of tinned copper wires with approx. 85 percent coverage over an inner PVC sheath.
What voltage is it rated for?
AC U0/U 600/1000 V, with 4000 V core/core test voltage.
Why is it described as an EMC-preferred type?
The dense braided screen suppresses interference from parallel cables. Helukabel recommends a double-sided, all-round contact of the braid.
Is direct burial permitted?
Helukabel states that the cable may not be laid directly in soil or water, and that it is suitable for direct burial starting with an outer diameter of 20 mm.
