Brand: Helukabel

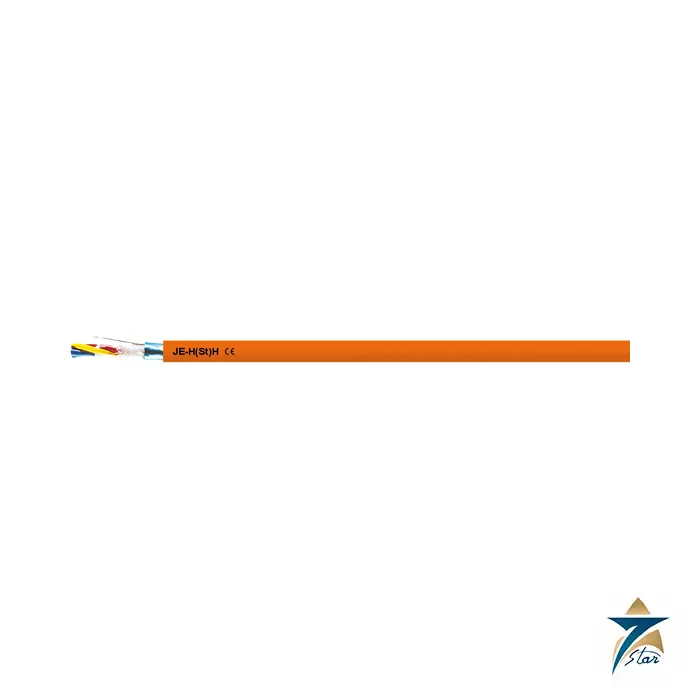

Helukabel JE-H(St)H Bd FE 180/E 30-E 90 Fire Alarm Cable
Description
The Helukabel JE-H(St)H Bd FE 180/E 30 up to E 90 is a halogen-free fire alarm and signalling installation cable with solid 0.8 mm conductors twisted in pairs, four pairs to a unit, a statically screened aluminium-laminated tape with a 0.8 mm tinned drain wire, and an orange halogen-free sheath. It is built in alignment with DIN VDE 0815 and is meant for fixed installation where life and property are protected in a fire. The data sheet lists a variant with functional maintenance E 30 to E 90 and a lighter E 30 variant.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | JE-H(St)H Bd FE 180/E 30 up to E 90, orange, halogen-free |
| Standard basis | Flame-retardant, halogen-free installation cable adapted to DIN VDE 0815 |
| Loop resistance | Max. 73.2 Ohm/km |
| Operating peak voltage | 225 V (not for high-current and power installation) |
| Test voltage | Core/core 500 V; core/screen 2000 V |
| Insulation resistance | Min. 100 MOhm x km |
| Mutual capacitance | Max. 120 nF/km at 800 Hz |
| Capacitance unbalance | Max. 200 pF/100 m |
| Temperature range | Flexing -5 °C to +50 °C; fixed installation -30 °C to +70 °C |
| Minimum bending radius | 6x cable diameter |
| Conductor and cores | Bare copper, single-wire 0.8 mm; halogen-free cross-linked polymer insulation HI1 (E 90 with special foil wrapping over conductor); colour rings per DIN VDE 0815 |
| Construction | Pairs, 4 pairs per unit, units identified by numbered tape; polyester and glass-fibre tape; alu-laminated polyester tape screen with tinned copper drain wire 0.8 mm |
| Outer sheath | Halogen-free, flame-retardant, HM2 to DIN VDE 0207 part 24, orange |
| Fire ratings | FE 180 (IEC 60331); E 30 (and E 90 variant) to DIN 4102 part 12, dependent on installation technique |
Where it belongs in a fire alarm system
The data sheet describes the cable as a flame-resistant, halogen-free, statically screened installation cable for telecommunication purposes in industrial complexes, public buildings, hotels, airports, underground railway networks and hospitals. The screen suppresses strong interference impulses. It is not for power or high-current installations, and the data sheet states it is not for underground laying.
E 30 to E 90 functionality depends on the installation technique, so the cable should be installed with the tested fixings. In a typical addressable fire alarm project the cable is used for detection loops, sounder circuits and interface cabling, with the pair count selected from the loop design. Check the loop resistance and capacitance limits stated by the panel manufacturer against the table values above.
Sizes
| Part no. (functionality) | Pairs x mm | Outer diameter mm (approx.) | Weight kg/km (approx.) |
|---|---|---|---|
| 34081 (E 30 up to E 90) | 2 x 2 x 0.8 | 7.4 | 74 |
| 34082 (E 30 up to E 90) | 4 x 2 x 0.8 | 10.8 | 127 |
| 34083 (E 30 up to E 90) | 8 x 2 x 0.8 | 16.9 | 300 |
| 34085 (E 30 up to E 90) | 16 x 2 x 0.8 | 20.1 | 426 |
| 34087 (E 30 up to E 90) | 32 x 2 x 0.8 | 29.1 | 859 |
| 34089 (E 30 up to E 90) | 52 x 2 x 0.8 | 37.3 | 1280 |
| 34148 (E 30) | 2 x 2 x 0.8 | 7.5 | 74 |
| 34149 (E 30) | 4 x 2 x 0.8 | 9.3 | 127 |
| 34150 (E 30) | 8 x 2 x 0.8 | 11.4 | 300 |
Documents and quotation
The Helukabel data sheet is attached (dated 16.04.2015; confirm the current revision when ordering). Seven Star LLC supplies Helukabel cables in Oman against the part number. Confirm the pair count, E rating, the fire alarm panel manufacturer requirements and the project standard. Browse the electrical and power category.
Datasheets & Documents
- Datasheet HELUKABEL JE-H(St)H Bd FE 180 data sheet (PDF, 16.04.2015) Download
Reviews (0)
About brand
HELUKABEL is the German manufacturer and supplier of cables, wires and cable accessories, with a range that covers control, power, data, fire-resistant and drag-chain cables. Helmut Luksch and his wife founded the company in 1978 in Hemmingen, near Stuttgart. The name combines the first letters of his first and last name (HElmut LUksch) with the word for cable (Kabel). It has made its own cables since 1988.
Seven Star LLC is an independent supplier in Muscat. We list HELUKABEL control, power, VFD, data and fire-resistant cables and supply them to contractors, panel builders and plants in Oman and the GCC by type, cross-section and length.
HELUKABEL at a glance
| Established | 1978, Hemmingen near Stuttgart, Germany, by Helmut Luksch |
|---|---|
| Manufacturing | Own production since 1988, starting at the Windsbach plant |
| Product families | Control and power cables, screened VFD motor cables, data and bus cables, fire-resistant and halogen-free cables, flexible rubber and welding cables, cable glands and accessories |
| Ownership | Family-owned, managed by the Luksch family |
HELUKABEL cables we list
| Cable | Type | Typical use |
|---|---|---|
| JZ-500, JZ-500 HMH, JZ-600-Y-CY | Control cables | Wiring of machines and panels; HMH is halogen-free, Y-CY is screened |
| NYY-J, N2XH-J | 0.6/1 kV power cables | Power distribution; N2XH-J for buildings where halogen-free cable is required |
| TOPFLEX-EMV-3-PLUS, TOPFLEX-EMV-UV, TOPFLEX 611-C-PUR | Screened motor cables | Connecting motors to variable speed drives and servo drives with low interference |
| (N)HXH-FE 180/E 90, JE-H(St)H Bd FE 180 | Fire-resistant cables | Safety circuits, fire alarm systems and emergency power that must keep working in a fire |
| PAAR-TRONIC-CY, SUPER-PAAR-TRONIC-C-PUR, OZ-BL-CY | Signal and instrument cables | Measurement signals, drag chains, and blue-sheathed intrinsically safe circuits |
| H07RN-F, H01N2-D | Rubber cables | Mobile equipment, temporary power and arc welding |
The code on a European cable describes its build. In NYY-J, N means a standard type, Y a PVC insulation and sheath, and J a green-yellow earth core. In N2XH, 2X is XLPE insulation and H a halogen-free sheath. A C or CY in the name marks a copper braid screen. FE 180 and E 90 are the fire tests: insulation integrity for 180 minutes and circuit function for 90 minutes as an installed system.
Where HELUKABEL cables are used
In Oman and the GCC, HELUKABEL cables are used in oil and gas and process plants, motor control centres and VFD installations, building fire alarm and life safety systems, machinery and cranes, and water and power infrastructure.
Ordering HELUKABEL cables: what we need
Send the cable type, the number of cores and cross-section (for example 4G2.5 or 3x150+70), the length, and whether you need a specific standard or certificate. For fire-resistant cables, add the required test (FE 180, E 30 or E 90).
Facts checked against HELUKABEL company history, October 2026.
Browse Helukabel products by category: Industrial Cables, Welding Accessories & Safety.
Related products
Frequently Asked Questions
What does the E 30 to E 90 rating mean?
It is the functional-maintenance time of the installed cable system, 30 to 90 minutes, tested to DIN 4102 part 12 and dependent on the installation technique.
Is the cable screened?
Yes, with an alu-laminated polyester tape and a 0.8 mm tinned copper drain wire.
Can it be laid underground?
No. The data sheet states it is not for purposes of high-current and power installation as well as underground laying.
What is the conductor size?
Solid 0.8 mm conductors twisted in pairs, four pairs to a unit.
What is the bending radius?
6x the cable diameter.
