Graco LubePro A2800 Vertical Oil Pump

Name: Graco LubePro A2800 Vertical Oil Pump – Datasheet & Quote
Brand: Graco
SKU: LubePro A2800

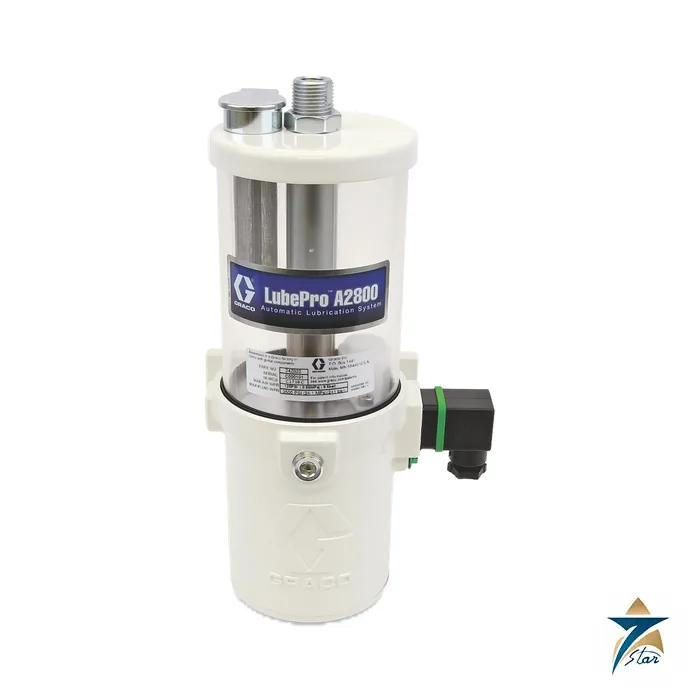

The Graco LubePro A2800 is a pneumatically powered, single-stroke vertical oil pump for automatic lubrication of in-plant machinery. Compressed air drives the pump, which delivers a measured shot of oil to the injectors on a bearing lubrication line, so lube points get oil on schedule while the machine runs.

A compact air-powered oil pump for bearing lubrication lines

Automatic lubrication replaces hand oiling with a pump, a supply line and metering injectors. The A2800 is the pump in that arrangement. Each air stroke pushes 0.56 cubic inches of oil into the supply line at up to 3500 psi, with a 28:1 pressure ratio, and an integrated vent relieves line pressure on the return stroke so that the injectors can reset without a pressure switch or extra wiring.

The reservoir is made of polycarbonate and comes in 0.6 litre or 2 litre sizes. Low-level versions add a switch that can signal a controller when the oil is running out.

Technical specifications

Parameter	Specification
Series / type	LubePro A2800 vertical oil pump, single stroke, air operated
Pressure ratio	28:1
Maximum fluid working pressure	3500 psi (24 MPa, 241 bar)
Pump output	0.56 cu in. (9.2 cc) per stroke
Fluid	Oil, minimum 40 cSt
Reservoir	0.6 L or 2 L
Air inlet pressure	15 psi minimum, 125 psi maximum (1.03 to 8.62 bar)
Air inlet / fluid outlet	1/4 in. NPT(F) / 1/4 in. NPT(F)
Filling	Top cover with strainer
Wetted parts	Zinc plated steel, cast aluminum ZL101, magnet, POM; polycarbonate reservoir; Buna-N, PTFE and PEEK seals
Weight	10.58 lb (4.8 kg)
Operating temperature	14 to 149 F (-10 to 65 C)
Low level switch	0.5 A maximum, 12 to 240 V DC/AC, IP65 when plugged and screwed down
Part numbers in manual	24Z021 (0.6 L, low level, normally open), 24Z022 (0.6 L, low level, normally closed), 24Z026 (2 L), 24Z027 (2 L, low level, normally open), 24Z028 (2 L, low level, normally closed)
Approvals note	Not approved for use in European explosive atmosphere locations

Choosing the model and installing it

The manual groups the A2800 models by reservoir size and low-level switch. The 0.6 L models are 24Z021 and 24Z022 and the 2 L models are 24Z026, 24Z027 and 24Z028; the manual’s model table marks each low-level part as normally open or normally closed. Select the pump to suit the oil volume per cycle and the number of lube points on the line.

The pump needs a clean, regulated air supply, a grounded mounting and a fluid with a viscosity of at least 40 cSt. Fill through the strainer in the top cover, prime the supply lines, feeder lines and injectors in turn, and follow the manual’s air-lock procedure. Use only non-corrosive, non-abrasive lubricants, and follow the pressure relief procedure in the manual before servicing, because high-pressure fluid can pierce the skin.

Documents and quotation

The linked PDF is the Graco instruction manual 3A4033K for the 28:1 LubePro vertical oil pump. We have quoted the manual where the web page and manual differ, for example the maximum air inlet pressure, and we have not stated injector compatibility. Confirm the exact part number, reservoir size, low-level contact type, thread standard and whether your site needs hazardous-area approval before ordering. Send us the part number, quantity and delivery location and we will prepare a quotation; Seven Star LLC supplies from Muscat as an independent supplier. Related lubrication equipment is in our Pumps category, including the Bijur Delimon MultiPort II mobile progressive grease lubricator.

Lubrication equipment

Graco has made lubrication equipment since the early decades of the company, and the LubePro range carries that experience into air-operated pumps for grease and oil. Models include single-stroke vertical pumps, a remote-fill oil pump and a reciprocating pump for larger systems, with optional low-level detection. Each manual lists part numbers, reservoir sizes and thread types, so the exact model should be confirmed when an enquiry is made. These pumps feed bearing and machine lubrication points in manufacturing, process and heavy industry.
