Graco LubePro H1900 Horizontal Remote-Fill Oil Pump
Description
The Graco LubePro H1900 is a horizontal, air-operated oil pump with remote fill, made for automatic lubrication systems that need a large single shot of oil. It draws oil from a header line or remote fill station instead of carrying its own reservoir.
A remote-fill oil pump with a large shot size
Where a plant has a central oil header, topping up a pump reservoir by hand is a recurring chore. The H1900 connects to the oil supply line, which is limited to 80 psi at the inlet, and delivers 3.0 cubic inches per stroke at a 19:1 pressure ratio.
That output is more than five times the shot of the vertical A2800 and A2900 pumps, so a faster lubrication cycle is possible on long runs of bearing lines. Optional low-level detection is available on the 24Y499 and 25Y499 models.
Technical specifications
| Parameter | Specification |
|---|---|
| Series / type | LubePro H1900 horizontal oil pump, single stroke, air operated, remote fill |
| Pressure ratio | 19:1 |
| Maximum fluid working pressure | 3500 psi (24 MPa, 241 bar) |
| Pump output | 3.0 cu in. (49.2 cc) per stroke |
| Oil input supply pressure | 80 psi maximum (0.55 MPa, 5.5 bar) |
| Maximum air inlet pressure | 185 psi (1.27 MPa, 12.76 bar) |
| Air inlet size | 1/4 in. NPT |
| Fluid outlet size | 3/4 in. NPT, with 3/4 NPT(m) x 1/4 NPT(f) reducers supplied |
| Oil input supply size | 3/8 in. NPT |
| Wetted parts | Electroless nickel plated ductile iron, painted ductile aluminum, zinc nickel coated steel, acetal, 6061 and 308 aluminum alloy; Buna-N seals |
| Weight | 22 lb (9.9 kg) |
| Operating temperature | 14 to 149 F (-10 to 65 C) |
| Low level switch | 30 V 0.3 A; 120 V 0.13 A; 240 V 0.06 A; IP65 when plugged and screwed down |
| Part numbers in manual | 24Y498 (no low level), 24Y499 (low level), 25Y498 and 25Y499 (same, with BSPP adapters) |
| Approvals note | Not approved for explosive atmospheres or hazardous locations |
Installation points and what to check
Mount the pump as shown in the manual, connect clean, regulated air to the 1/4 inch inlet, run the oil supply to the 3/8 inch port and take the 3/4 inch outlet to the system. The pumps are supplied with reducers for 1/4 inch NPT outlet piping, and the 25Y models carry loose BSPP fittings for metric thread systems. Air supply may go up to 185 psi, but the oil input must not exceed 80 psi.
Use only non-corrosive, non-abrasive lubricants. Because the supply is remote, check that the header line stays filled and clean, since a dry line will starve the pump. The manual also lists a pressure relief procedure, an air-lock procedure and sizing guidance for the supply and feeder lines. Use only non-corrosive, non-abrasive lubricants, and follow the pressure relief procedure in the manual before servicing, because high-pressure fluid can pierce the skin.
Documents and quotation

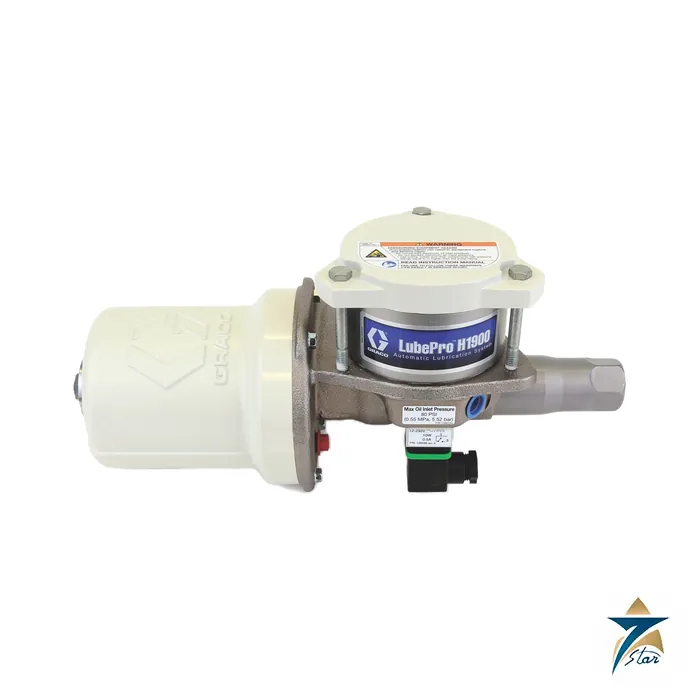

The linked PDF is Graco instruction manual 3A3169E for the H1900 LubePro oil pump. Our photograph is Graco’s image of the series. Please confirm the part number, thread standard, low-level option, oil viscosity and supply pressure of your header line before ordering; the product page also lists injector compatibility which we have not repeated. Send us the part number, quantity and delivery location and we will prepare a quotation; Seven Star LLC supplies from Muscat as an independent supplier. Related lubrication equipment is in our Pumps category, including the Bijur Delimon MultiPort II mobile progressive grease lubricator.
