Brand: Bijur Delimon

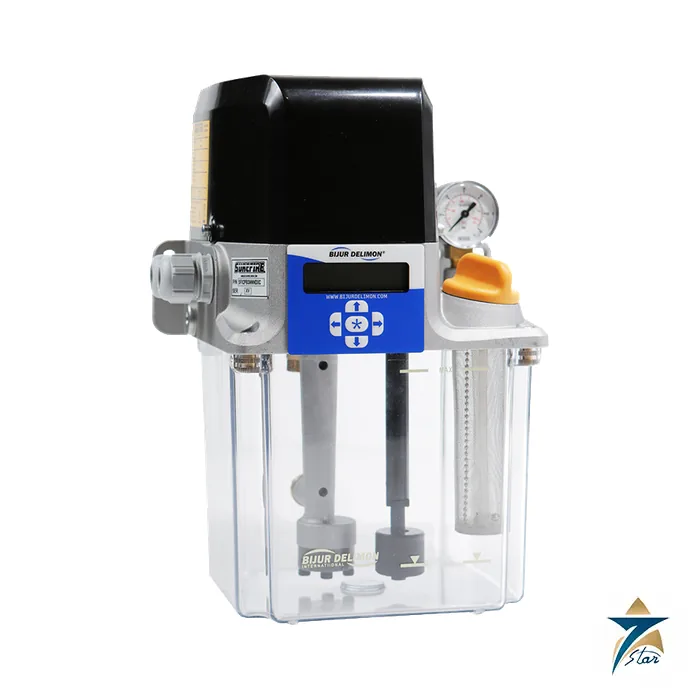

Bijur Delimon SureFire II Electric Lubrication Pump
Description
A compact electric gear pump for oil and fluid-grease systems
The SureFire II is an automatic, self-contained electric motor-driven gear pump from Bijur Delimon International (Raleigh, North Carolina). Its compact size fits tight machine spaces, and it adapts to a broad range of production machinery.
The PDI version drives single injectors or injector groups serving up to 100 lubrication points with oil or fluid grease. The SLR version supplies oil to resistance fittings or groups serving up to 100 points. Reservoirs of 2, 3, 6, 12 and 30 litres, plastic or metal, and several control options allow the same pump to be specified for a lathe or a long conveyor line.
Technical specifications
| Parameter | Specification |
|---|---|
| Output volume (max.) | 250 cc/min at 60 Hz, 210 cc/min at 50 Hz (115/230 VAC); 250 cc/min (24 VDC) |
| Output pressure (max.) | PDI 450 psi (31 bar); SLR 75 psi (5 bar) |
| Pressure switch setting | PDI closes at 290 psi (20 bar); SLR closes at 20 psi (1.4 bar) |
| Lubricant | Standard oil 20 to 1500 cSt; light oil 5 to 40 cSt; soft greases NLGI 000 to 00 (40,000 cSt max.), PDI only |
| Reservoir volume | 2, 3, 6, 12 and 30 litre; Luran (blue tint) plastic for 2, 3, 6 litre, painted steel for all |
| Motor voltage | 100/115 VAC or 200/230 VAC, 50/60 Hz single phase; 24 VDC |
| Running current | 1.0 A (115 VAC), 0.7 A (230 VAC), 3.4 A (24 VDC) |
| Operating temperature | 5 °C to 40 °C (40 °F to 105 °F) |
| Enclosure | IP 54; CE approved |
| Connections | Two G 1/4 BSPP outlets (one each side), G 1/4 BSPP return; 6 mm O.D. minimum main feed line recommended |
| Fill screen | 40 mesh, removable (oil only) |
Decoding the SFX ordering chart
The part number starts with SFX and is built from the reservoir capacity (2, 3, 6, 12 or 30), material (P plastic, M metal), distribution system (A = SLR with 75 psi relief valve, B = PDI with 450 psi relief valve), lubricant (S oil 20 to 1500 cSt, L light oil 5 to 40 cSt, G grease 000 to 00), level monitoring (X none, N standard), voltage (B 24 VDC, C 100/115 VAC, D 200/230 VAC), electric connector (X cable glands, A DIN, B DIN plus M12, C two M12 for 24 VDC) and integrated controls (X terminal block, A terminal block with run switch and LED, B timer, C Lite controller, D Premium controller). The 12 and 30 litre sizes are metal only, and SLR is for oil only.
Related Bijur Delimon products in the same range are compared below.
| Product | Type | Key range |
|---|---|---|
| SureFire II | Electric gear pump, 2 to 30 litre | PDI 450 psi / SLR 75 psi |
| MultiPort II | Electric multi-element pump, 3 or 7 litre grease | Up to 250 bar |
| Dynamis Maxx | Mobile electric piston pump, 4 or 8 litre | 160 or 300 bar relief |
| Airmatic | Pneumatic oil pump, 1, 4 or 12 litre | 2 to 10 cc per stroke |
| SureMatic | Pneumatic grease or oil pump, 1 to 5 litre | Up to 100 bar (grease) |
| PVB | Progressive divider valve | 0.20 cc per outlet |
| ZEM | Positive displacement injector | 0.01 to 1.5 cc |
| SMAC-MAX | Multi-mode controller | 110 or 220 VAC |
Controller options and installation
The Premium controller manages on and off times, pre-lube at start-up, fault detection, password-protected settings and status outputs for the host machine. The Lite controller offers up to four modes, and the ON/OFF timer provides 1 second to 99 hours for each period. The terminal block versions are for operation from a customer PLC or DCS; motor overload protection must be provided by the host machine. Compare with the SKF TLMR automatic lubricant dispenser for grease points, or browse pumps and lubrication equipment.
Documents and quotation
The manufacturer datasheet (SureFire II Lubricator Datasheet 36410 R5 08/25) is attached to this page as a download. For a quotation, send the lubricant and viscosity or NLGI grade, the number and type of lubrication points, the system type (progressive, injector or single-line), the supply voltage or air pressure, the ambient temperature range and any option letters from the ordering chart. Please confirm the full part number and options against the current manufacturer datasheet before ordering; the data on this page is taken from the datasheet revision named above.
Datasheets & Documents
- Datasheet Bijur Delimon SureFire II Lubricator Datasheet, Single Phase (36410 R5 08/25) Download
Reviews (0)
About brand
Bijur Delimon International is a US-based maker of engineered centralized lubrication systems, headquartered in Raleigh, North Carolina, and part of Timken since 2026. Seven Star LLC is an independent supplier in Muscat and lists Bijur Delimon pumps, distribution elements and controllers for steel, mining, power and machinery buyers in Oman and the GCC.
Bijur Delimon pumps, dividers and controllers
The range spans electric and pneumatic lubrication pumps (SureFire II, MultiPort II, Dynamis Maxx, Airmatic, SureMatic), distribution elements such as PVB divider valves and ZEM injectors, and controllers such as SMAC-MAX. Systems are built around single-line resistance, injector and progressive layouts for oil and grease.
Ordering centralized lubrication equipment: what we need
Send the part number or the ordering-chart option letters, the lubricant and viscosity or NLGI grade, the number of lubrication points, the supply voltage or air pressure and the quantity. We check the model against the current datasheet before quoting.
Related products
Frequently Asked Questions
What does the SureFire II supply?
Oil or fluid grease to PDI injector systems, or oil to SLR resistance fitting systems, for up to 100 lubrication points.
What reservoir sizes exist?
2, 3, 6, 12 and 30 litres; 12 and 30 litre are metal only.
What is the maximum pressure?
450 psi (31 bar) for PDI and 75 psi (5 bar) for SLR.
Which supply voltages are offered?
100/115 VAC, 200/230 VAC single phase, or 24 VDC; a three-phase datasheet is separate.
Is a controller included?
Options range from a terminal block to a timer, a Lite controller or a Premium controller.
