Brand: Bijur Delimon

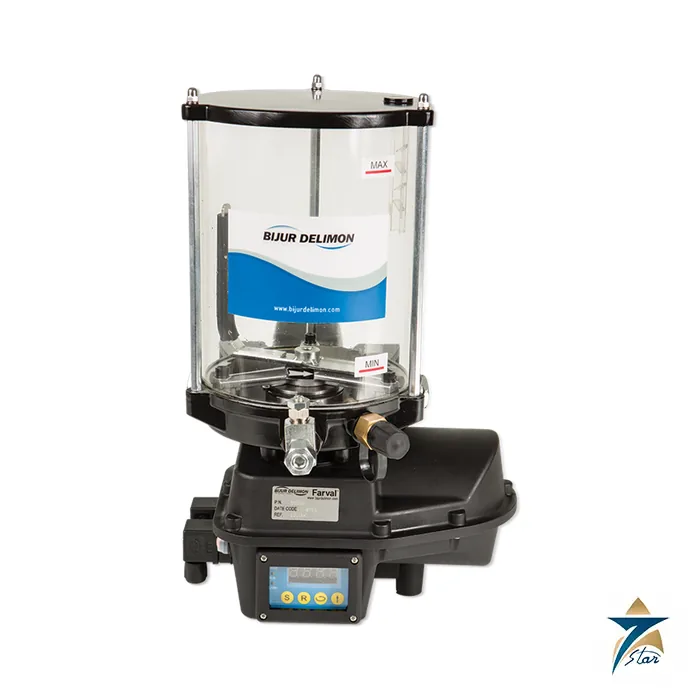

Bijur Delimon MultiPort II Mobile Progressive Grease Lubricator
Description
A rugged multi-outlet grease pump for mobile machines
The MultiPort II Lubricator is an electrically driven multiple-outlet lubrication unit designed mainly for progressive divider valve systems. It can house up to three independent or combined pumping elements that feed lubrication points directly or through a network of progressive dividers, and 12 and 24 VDC motors make it suited to mobile applications.
Power from a gearmotor drives a precision eccentric cam that moves up to three spring-loaded piston elements, displacing a fixed volume of grease through an outlet check valve. Each element has an adjustable relief valve, a rotating mixing arm helps grease reach the inlet, and the enclosure is rated IP69K.
Technical specifications
| Parameter | Specification |
|---|---|
| Reservoir capacity | 3 litre (7 lb) or 7 litre (15 lb), with mixing arm |
| Lubricant | Grease NLGI 000 to 2, pumpable at operating temperature |
| Maximum working pressure | 250 bar (3625 psi) |
| Output per minute | 3.0 cc (0.18 cu in.) per element at 40 rpm, 68 °F, 1000 psi back pressure |
| Elements | 1 to 3; outlet port 1/4 in. NPT(F) or 1/4 in. BSPP(F) |
| Operating voltage | 12 or 24 VDC; controller fuse 5 A (24 VDC) or 8 A (12 VDC) |
| Operating temperature | 24 VDC: -20 °C to 50 °C; 12 VDC: -10 °C to 50 °C |
| Enclosure | IP69K; CE approved |
| Low level switch | Capacitive proximity, DC NPN or PNP, 10-36 VDC, normally closed |
| Fill connection | Quick disconnect (universal ISO 7241-1B) or Zerk fitting |
| Weight with reservoir | 3 L: 10 kg (21 lb); 7 L: 11 kg (24 lb) |
Reading the ordering code
The 24 VDC family is numbered 55412 and the 12 VDC family 55626. Each is followed by option letters: controller (C) or none (X), reservoir 3 or 7 litre, level switch (X none, L NPN, P PNP; PNP not with controller), BSPP outlet option (B), fill connector (U universal, Z Zerk, F fast-fill) and element codes for the left, centre and right positions (Y independent outlet, C combined with the centre element, N no element, B/L/R combination codes). Items in bold on the datasheet are standard options; others may have longer lead time.
Related Bijur Delimon products in the same range are compared below.
| Product | Type | Key range |
|---|---|---|
| SureFire II | Electric gear pump, 2 to 30 litre | PDI 450 psi / SLR 75 psi |
| MultiPort II | Electric multi-element pump, 3 or 7 litre grease | Up to 250 bar |

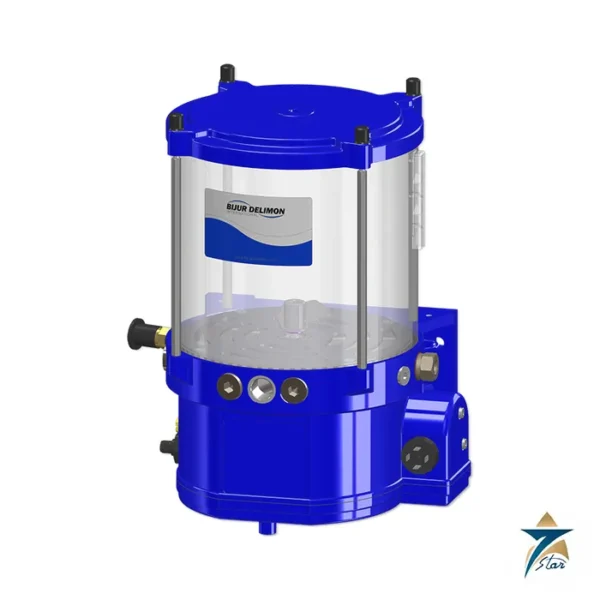

| Dynamis Maxx | Mobile electric piston pump, 4 or 8 litre | 160 or 300 bar relief |
| Airmatic | Pneumatic oil pump, 1, 4 or 12 litre | 2 to 10 cc per stroke |
| SureMatic | Pneumatic grease or oil pump, 1 to 5 litre | Up to 100 bar (grease) |
| PVB | Progressive divider valve | 0.20 cc per outlet |
| ZEM | Positive displacement injector | 0.01 to 1.5 cc |
| SMAC-MAX | Multi-mode controller | 110 or 220 VAC |
Where it fits and what accompanies it
Pair it with PVB mobile divider valves (datasheet 35635) and, for control, the SMDC controller (datasheet 46911) or your own PLC. Accessories listed include low-level switch kits, dual-scale pressure gauges (0-3000 psi/200 bar and 0-5000 psi/350 bar), a field-wireable DIN plug, a pump mounting plate and manual fill pumps for 35 lb pails and 120 lb kegs. See pumps and lubrication equipment and the SKF TLMR dispenser.
Documents and quotation
The manufacturer datasheet (MultiPort II Mobile Progressive Grease Datasheet 36980 R15 10/26) is attached to this page as a download. For a quotation, send the lubricant and viscosity or NLGI grade, the number and type of lubrication points, the system type (progressive, injector or single-line), the supply voltage or air pressure, the ambient temperature range and any option letters from the ordering chart. Please confirm the full part number and options against the current manufacturer datasheet before ordering; the data on this page is taken from the datasheet revision named above.
Datasheets & Documents
- Datasheet Bijur Delimon MultiPort II Lubricator Mobile Progressive Grease Datasheet (36980 R15 10/26) Download
Reviews (0)
About brand
Bijur Delimon International is a US-based maker of engineered centralized lubrication systems, headquartered in Raleigh, North Carolina, and part of Timken since 2026. Seven Star LLC is an independent supplier in Muscat and lists Bijur Delimon pumps, distribution elements and controllers for steel, mining, power and machinery buyers in Oman and the GCC.
Bijur Delimon pumps, dividers and controllers
The range spans electric and pneumatic lubrication pumps (SureFire II, MultiPort II, Dynamis Maxx, Airmatic, SureMatic), distribution elements such as PVB divider valves and ZEM injectors, and controllers such as SMAC-MAX. Systems are built around single-line resistance, injector and progressive layouts for oil and grease.
Ordering centralized lubrication equipment: what we need
Send the part number or the ordering-chart option letters, the lubricant and viscosity or NLGI grade, the number of lubrication points, the supply voltage or air pressure and the quantity. We check the model against the current datasheet before quoting.
Related products
Frequently Asked Questions
What reservoirs does MultiPort II have?
3 litre or 7 litre grease reservoirs with a mixing arm.
What is its maximum pressure?
250 bar (3625 psi).
How many pumping elements can it hold?
One to three, independent or combined.
Which voltages are available?
12 VDC and 24 VDC.
What enclosure rating applies?
IP69K.
