Brand: Bijur Delimon

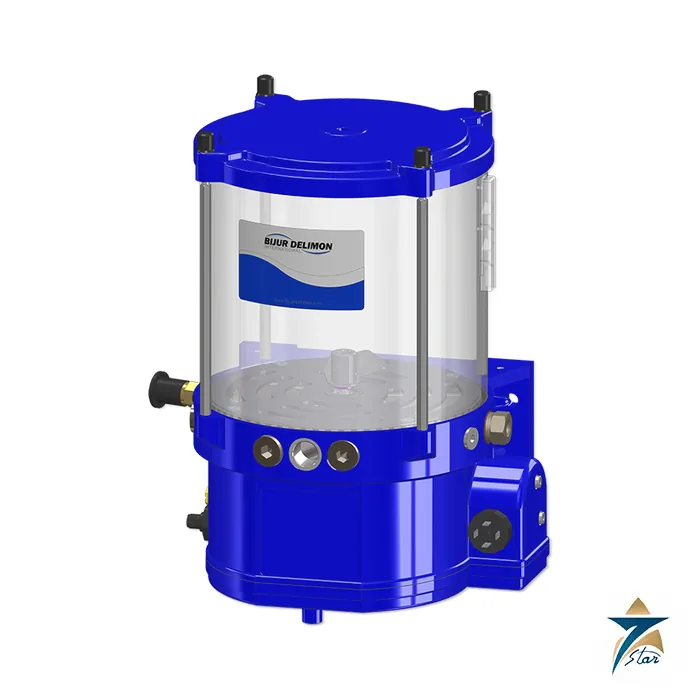

Bijur Delimon Dynamis Maxx Mobile Progressive Grease Lubricator
Description
Large-reservoir grease pump for loaders, excavators and trucks
The Dynamis Maxx is an electrically driven piston pump designed for series progressive systems. It can be fitted with up to three independent or combined piston elements that give positive displacement output to series progressive divider valves, with an integral pCo programmable controller, low-level switch and a choice of reservoir sizes.
It is intended for on-road and off-road mobile machinery such as loaders, excavators, articulated trucks and graders, in conditions found in construction, mining and forestry. Large reservoirs of 4 or 8 litres give longer times between refills, and the controller option makes installation quick.
Technical specifications
| Parameter | Specification |
|---|---|
| Reservoir capacity | 4 and 8 litre (8 and 16 lb) |
| Grease | NLGI 000 to 2; the grease must be pumpable at operating temperature |
| Relief valve setting | 2320 psi (160 bar) and 4350 psi (300 bar); higher settings on request |
| Discharge per minute | 2.9 cc (0.18 cu in.) per element or outlet; 3 outlets maximum |
| Operating temperature | NLGI 2: -20 °C to 75 °C; NLGI 0: -25 °C to 75 °C |
| Operating voltage | 12 or 24 VDC; external fuse (customer supplied) 8 A slow-blow at 12 VDC, 5 A at 24 VDC |
| Outlet connection | 8 mm tube fitting (or G1/4 port) |
| Electrical | DIN 43650 3-pole power; M12x1 8-pole status and M12x1 4-pole cycle switch on controller units |
| Enclosure and motor | IP 67; 50 W gearmotor; duty cycle S3 30% (20 minute maximum runtime) |
| Fill connector | Hydraulic quick disconnect |
Ordering by part number
The datasheet lists complete pumps: 24 VDC 4 litre with low-level switch (37551), 24 VDC 4 litre with switch and controller (37553), 24 VDC 8 litre with switch (37552), 24 VDC 8 litre with switch and controller (37554), 12 VDC 4 litre with switch and controller (37555), and 300 bar versions in 4 litre (37957) and 8 litre (37729). Other configurations are available on request. Pumps ship with one element; additional elements are separate kits (37862, 37702 and 37703).
Related Bijur Delimon products in the same range are compared below.
| Product | Type | Key range |
|---|---|---|
| SureFire II | Electric gear pump, 2 to 30 litre | PDI 450 psi / SLR 75 psi |
| MultiPort II | Electric multi-element pump, 3 or 7 litre grease | Up to 250 bar |
| Dynamis Maxx | Mobile electric piston pump, 4 or 8 litre | 160 or 300 bar relief |
| Airmatic | Pneumatic oil pump, 1, 4 or 12 litre | 2 to 10 cc per stroke |
| SureMatic | Pneumatic grease or oil pump, 1 to 5 litre | Up to 100 bar (grease) |
| PVB | Progressive divider valve | 0.20 cc per outlet |
| ZEM | Positive displacement injector | 0.01 to 1.5 cc |
| SMAC-MAX | Multi-mode controller | 110 or 220 VAC |
Accessories and system partners
Refer to datasheet 35635 for the PVB mobile divider valve and datasheet 35762 for the pCo quick start guide. Listed accessories include mounting plates, pressure gauges, power and M12 cables, replacement reservoirs (4 L 73100R097, 8 L 73100R092), a replacement 160 bar relief valve (63611D003) and an AC-to-DC power supply kit (DYXETA0007) to run the 24 VDC pump from 110/230 VAC. See pumps and lubrication equipment.
Documents and quotation
The manufacturer datasheet (Dynamis Maxx Lubricator Datasheet 35687 R4 03/15) is attached to this page as a download. For a quotation, send the lubricant and viscosity or NLGI grade, the number and type of lubrication points, the system type (progressive, injector or single-line), the supply voltage or air pressure, the ambient temperature range and any option letters from the ordering chart. Please confirm the full part number and options against the current manufacturer datasheet before ordering; the data on this page is taken from the datasheet revision named above.
Datasheets & Documents
- Datasheet Bijur Delimon Dynamis Maxx Lubricator Datasheet (35687 R4 03/15) Download
Reviews (0)
About brand
Bijur Delimon International is a US-based maker of engineered centralized lubrication systems, headquartered in Raleigh, North Carolina, and part of Timken since 2026. Seven Star LLC is an independent supplier in Muscat and lists Bijur Delimon pumps, distribution elements and controllers for steel, mining, power and machinery buyers in Oman and the GCC.
Bijur Delimon pumps, dividers and controllers
The range spans electric and pneumatic lubrication pumps (SureFire II, MultiPort II, Dynamis Maxx, Airmatic, SureMatic), distribution elements such as PVB divider valves and ZEM injectors, and controllers such as SMAC-MAX. Systems are built around single-line resistance, injector and progressive layouts for oil and grease.
Ordering centralized lubrication equipment: what we need
Send the part number or the ordering-chart option letters, the lubricant and viscosity or NLGI grade, the number of lubrication points, the supply voltage or air pressure and the quantity. We check the model against the current datasheet before quoting.
Related products
Frequently Asked Questions
What voltages does Dynamis Maxx use?
12 VDC or 24 VDC.
How big are the reservoirs?
4 litre (8 lb) or 8 litre (16 lb).
What relief valve settings are standard?
160 bar (2320 psi) and 300 bar (4350 psi).
How many elements can be fitted?
Up to three; the pump ships with one.
What enclosure rating applies?
IP 67.
